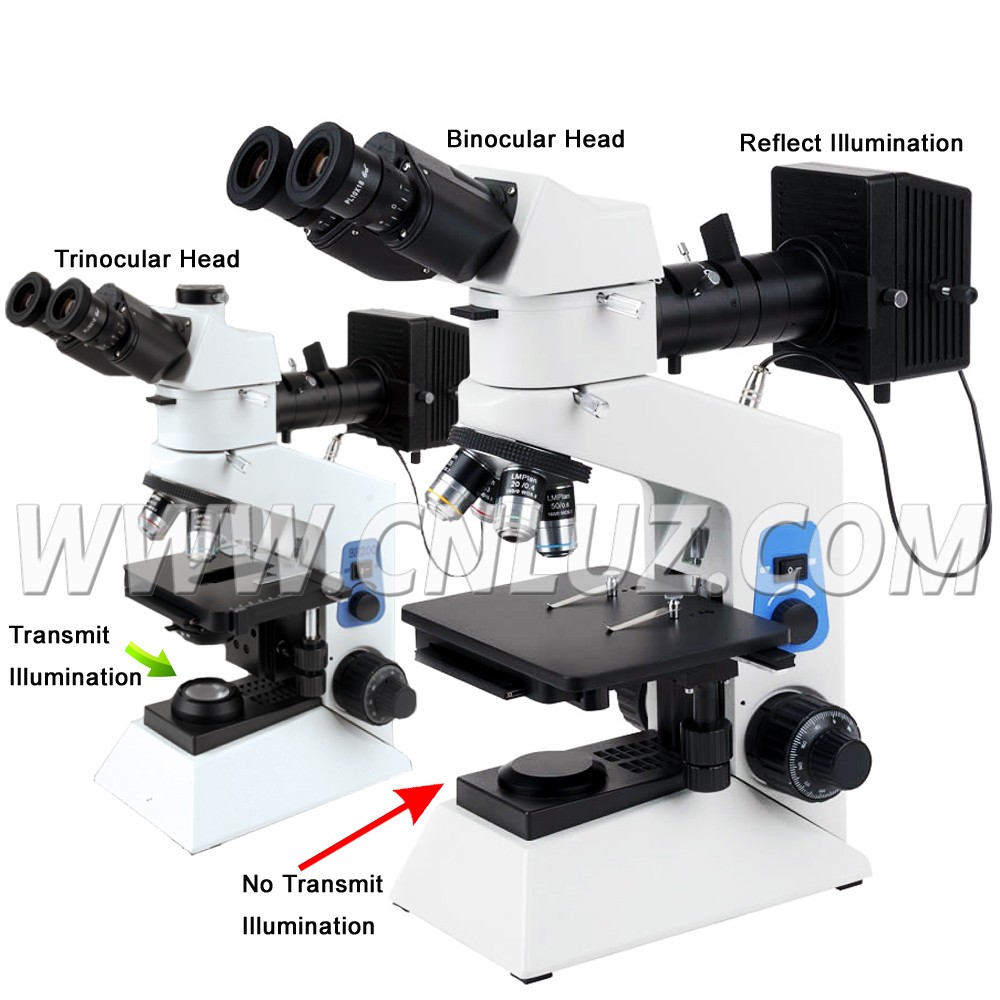

MMU.023069Binocular/Trinocular Upright Metallurgical, 50X~500X
  • /usr/575/images/Products/Y/57518564.jpg
  • /usr/575/Picture/Y/11463.jpg
  •
  •
  • The stable and reliable operating mechanism provide clearer image and easier to operate.
  • Modulat microscope body with a new ergonomic design, structural symmetry, can used with many kinds of accessories.
  • Stage, light intensity and low position coarse and fine adjustment, increased comfort of operating.
  • Widely used in various types of semi-conductor silicon wafer inspection, material- s science study, geology mineral analysis and precision engineering and other disciplines.
Specification
MMU.023069-B
MMU.023069-T
Head
Compensation Free Binocular Head, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable

Compensation Free Trinocular Head, 45° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable
Eyepiece

High Eyepoint Plan PL10x/18mm

Objective
Long Working Distance Plan Metallurgical Achromatic LMPL5X/0.15
Long Working Distance Plan Metallurgical Achromatic LMPL10X/0.3
Long Working Distance Plan Metallurgical Achromatic, Semi-APO LMPL50X/0.6
Nosepiece
Quarduple Nosepiece
Focusing
Low Position Coaxial Coarse & Fine Focusing, Fine Focusing Precision 0.002mm, with Tension Adjustment and Up-limited Safty Stop
Stage
  • Double Working Stage, Size 140*132mm, Moving Range 50*76mm, Moving Precision 0.1mm
  • Metal Plate 180*145mm for Large Object
  • Double Working Stage, Size 140*132mm, Moving Range 50*76mm, Moving Precision 0.1mm
  • Metal Plate 90*50mm
Condenser
No Condenser Abbe Condenser N.A.1.25, with Iris Diaphragm, with Filter Holder
Filter Green Filter, Dia.45mm
Reflect Illumination
Reflect Illumination, with View Field Diaphragm, with Iris Diaphragm, Center Adjustable, 6V30W Halogen, Brightness Control
Transmit Illumination No Transmit Illumination Transmit Illumination, 6V30W Halogen
Power
90-240V Wide Range Power Supply

Item
Optional Accessories
Eyepiece
Wide Field Eyepiece WF15x/13mm
Wide Field Eyepiece WF20x/10mm
Wide Field Eyepiece WF15x/13mm with Retical
Wide Field Eyepiece WF20x/10mm with Retical
High Eyepoint Plan PL10x/18mm, with Cross PL10x18
Objective


Long Working Distance Plan Metallurgical Achromatic LMPL20X/0.4

Long Working Distance Plan Metallurgical Achromatic,Semi-APO LMPL100X/0.8
Filter Green,Dia.45mm
Yellow, Dia.45mm
Netural,Dia.45mm
Adapter 1.0x C-Mount
0.5x C-Mount, for 1/2" CCD
0.35x C-Mount, for 1/3" CCD
Digital Camera Adapter with Photo Eyepiece
Photo Adapter with 3.2x Photo Eyepiece, PK or MD Mount
