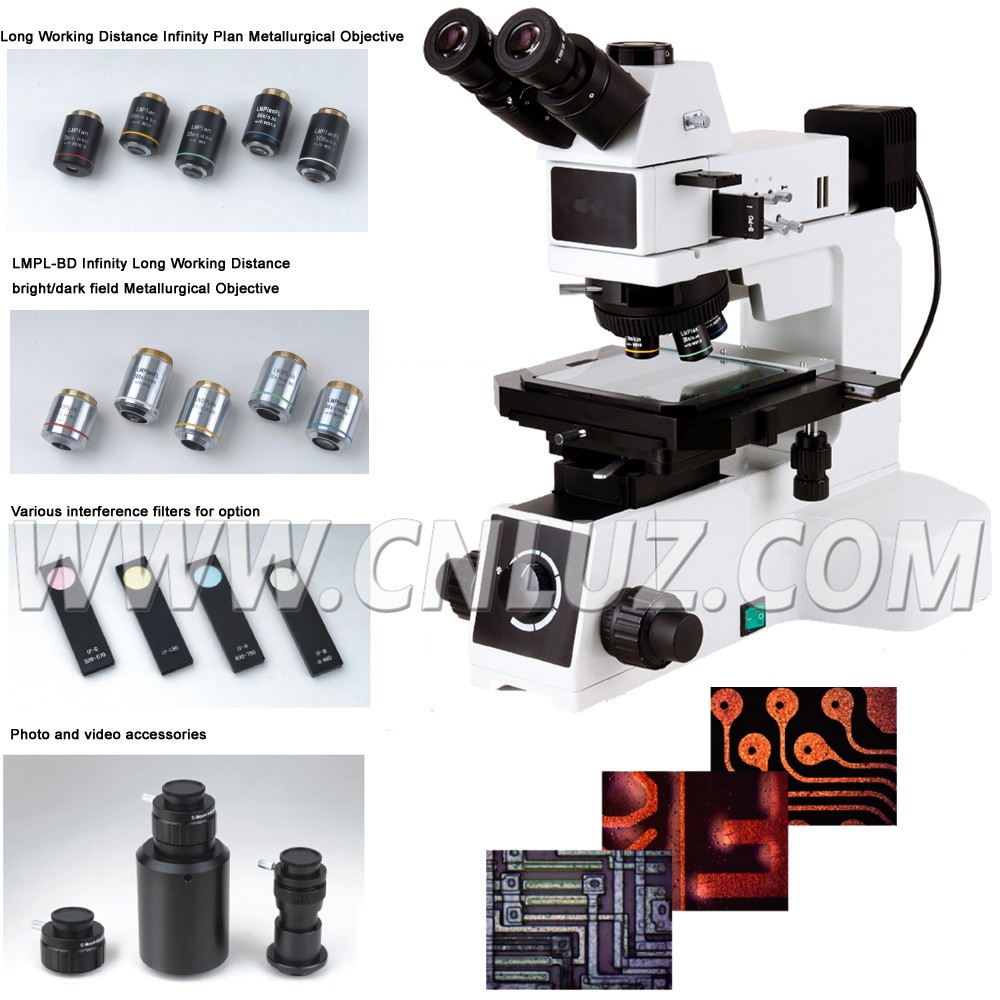

MMU.023073Trinocular Upright Metallurgical, 50X~500X, DIC
  • /usr/575/images/Products/Y/57518568.jpg
  • /usr/575/Picture/Y/11471.jpg
  • /usr/575/Picture/Y/11472.jpg
  • /usr/575/Picture/Y/11473.jpg
  • The microsope can achieve X, Y directions 105mmx105mm range of movement.
  • The new design of the long working distance professional metallurgical objectiv- e , high power objective designed with semi-apochromatic technology.
  • Under a variety of observation methods can be sharp andhigh-contrast microsco- pic image.
  • Accessories complete, well-equipped, the system can be flexibly combined with the functional expansion.
  • Ergonomic design, reliable system architecture.
Specification

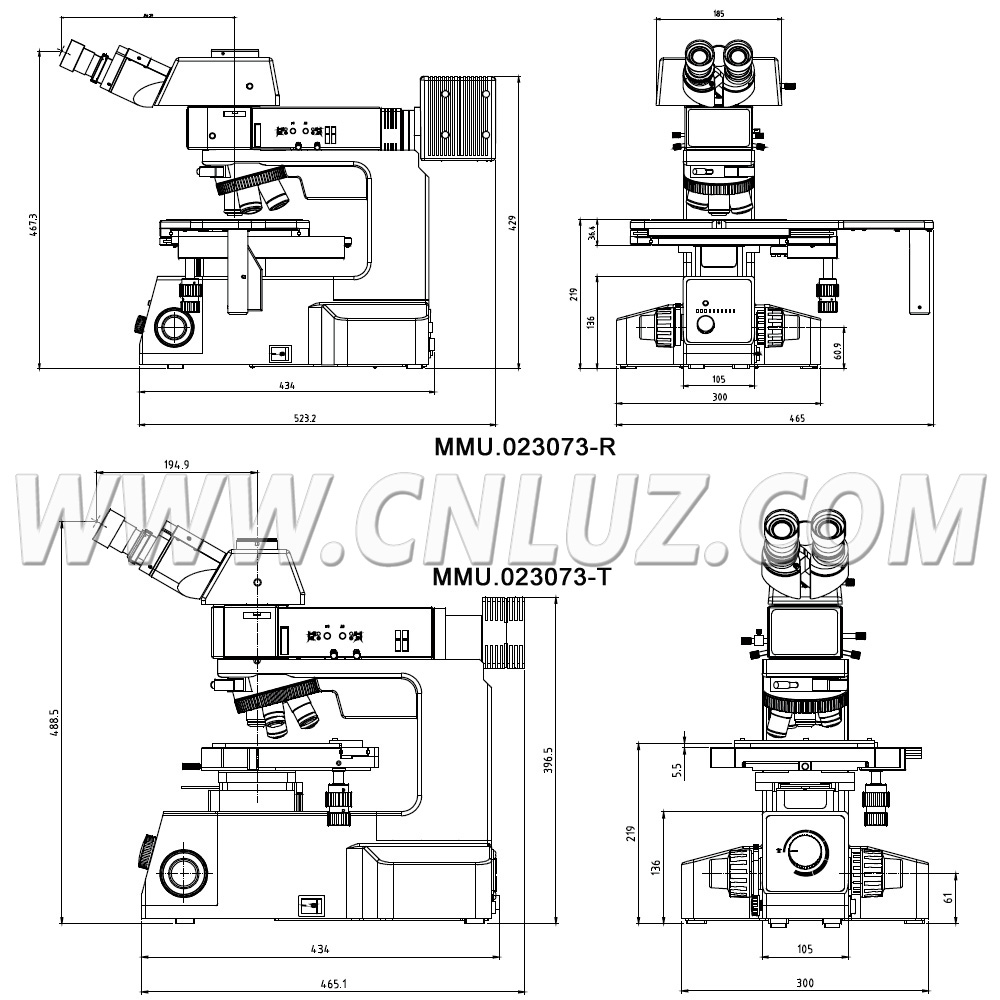

MMU.023073-R
MMU.023073-T
Optical System

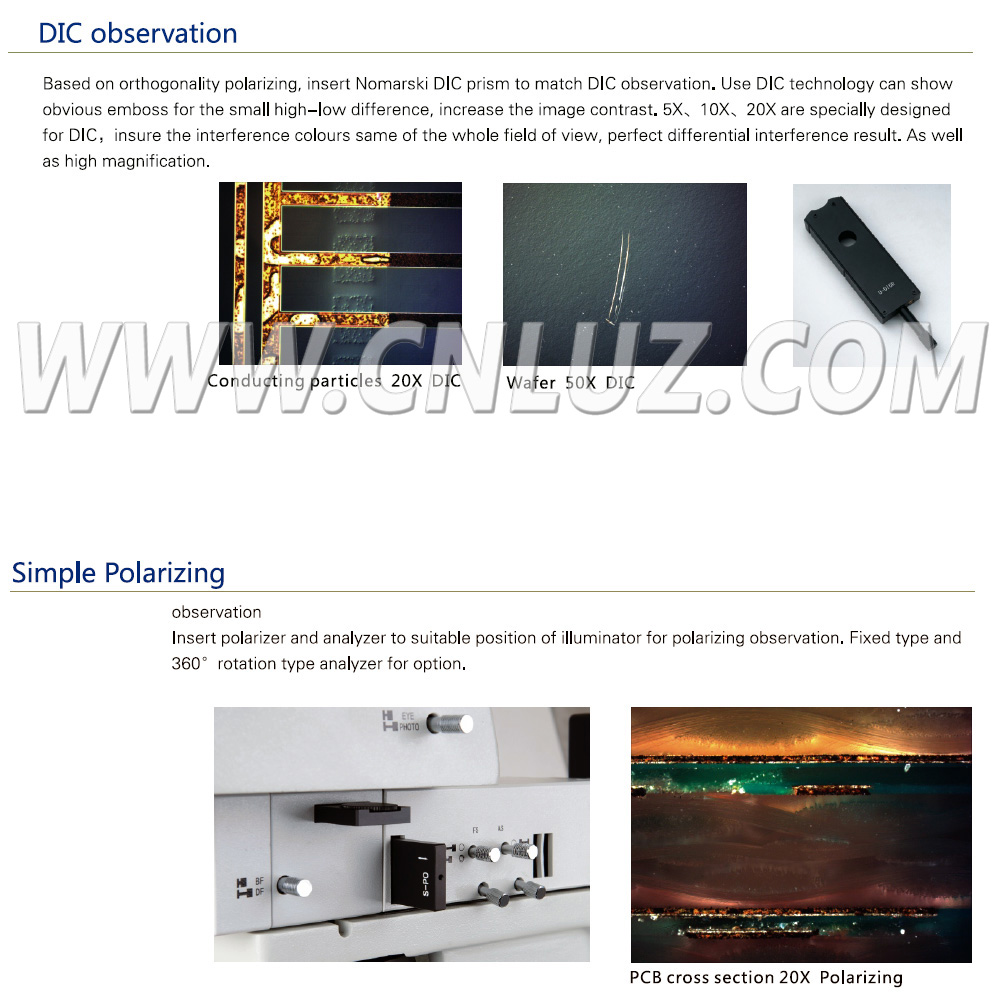

Bright Field/Oblique Light, Polarizig, DIC
Bright Field/Oblique Light, Polarizig, DIC , Transmit Light
Head 30° Inclinded Trinocular, Spiltting Ratio 100:0 or 50:50
Eyepiece

High Eyepoint Plan PL10x/22mm

Objective Long Working Distance Infinity Plan Metallurgical
DIC Achromatic LMPL5X/0.15 WD10.8MM
Long Working Distance Infinity Plan Metallurgical
DIC Achromatic LMPL10X/0.3 WD10MM
Long Working Distance Infinity Plan Metallurgical
DIC Achromatic LMPL20X/0.45 WD4MM
Long Working Distance Infinity Plan Metallurgical
Semi-APO LMPL50X/0.55 WD7.8MM
Focusing Coaxial Coarse & Fine Focusing, Coarse Focus Range 33mm, Fine Focusing Precision 0.001mm,With Coarse Adjustment Stop and Tightness Adjustment
Nosepiece
Intilted, Quintuple, With DIC Slot
Stage
4" Double Layer Mechanical Stage, Moving Range 105*105mm, with Metal Flat Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adaptor 4" Double Layer Mechanical Stage, Moving Range 105*105mm, with Glass Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adaptor
Reflect Illumination

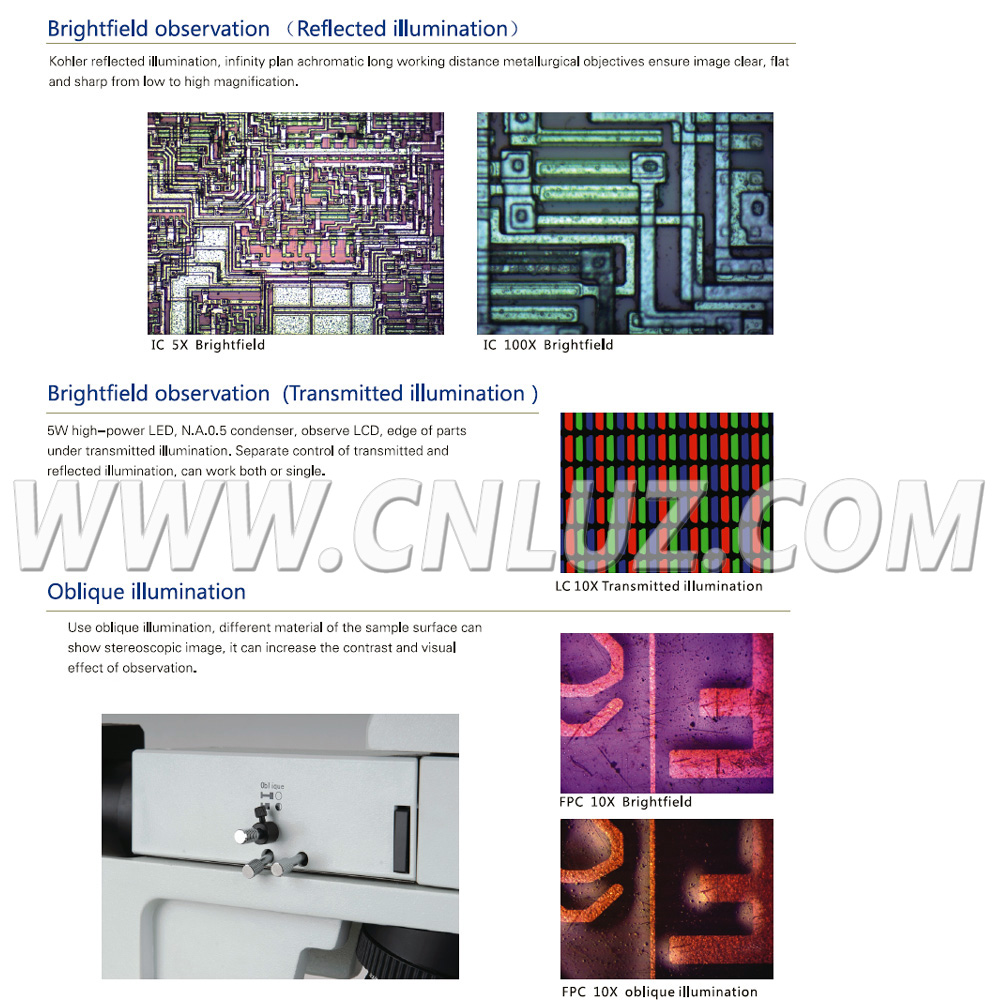

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Oblique Illumination Switch. Single High Power 5W LED, White, Brightness Adjustable
Transmitted Illumination No Transmitted Illumination Transmitted Illumination, SIngle High Power 5W LED, White Brightness Adjustable, N.A.0.5 Condenser, with Iris Diaphragm
Power 90-240V Wide Voltage, One Way Power Output 90-240V Wide Voltage, Double Way Power Output

Item
Optional Accessories
Eyepiece


High Eyepoint Plan PL15x/16mm PL15x16
High Eyepoint Plan PL10x/22mm, with Cross PL10x22r
High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T
Objective Long Working Distance Infinity Plan Metallurgical Semi-APO LMPL100X/0.8 WD2.1MM
DIC DIC Attachment Set
Polarizing Fixed Analyser Flashboard,Dia.30mm
Fixed Polarizer Flashboard, Dia.30mm
360° Rotatable Analyser Flashboard
Filter Interface Filter For Reflect illumination Blue, <480nm
Interface Filter For Reflect illumination Green, 520~570nm
Interface Filter For Reflect illumination Red, 630~750nm
Interface Filter For Reflect illumination Netural, for White Balance
Adapter 0.5x C-Mount, for 1/2" CCD, Focus Adjustable
1.0x C-Mount, Focus Adjustable
Digital Camera Adapter with Photo Eyepiece
