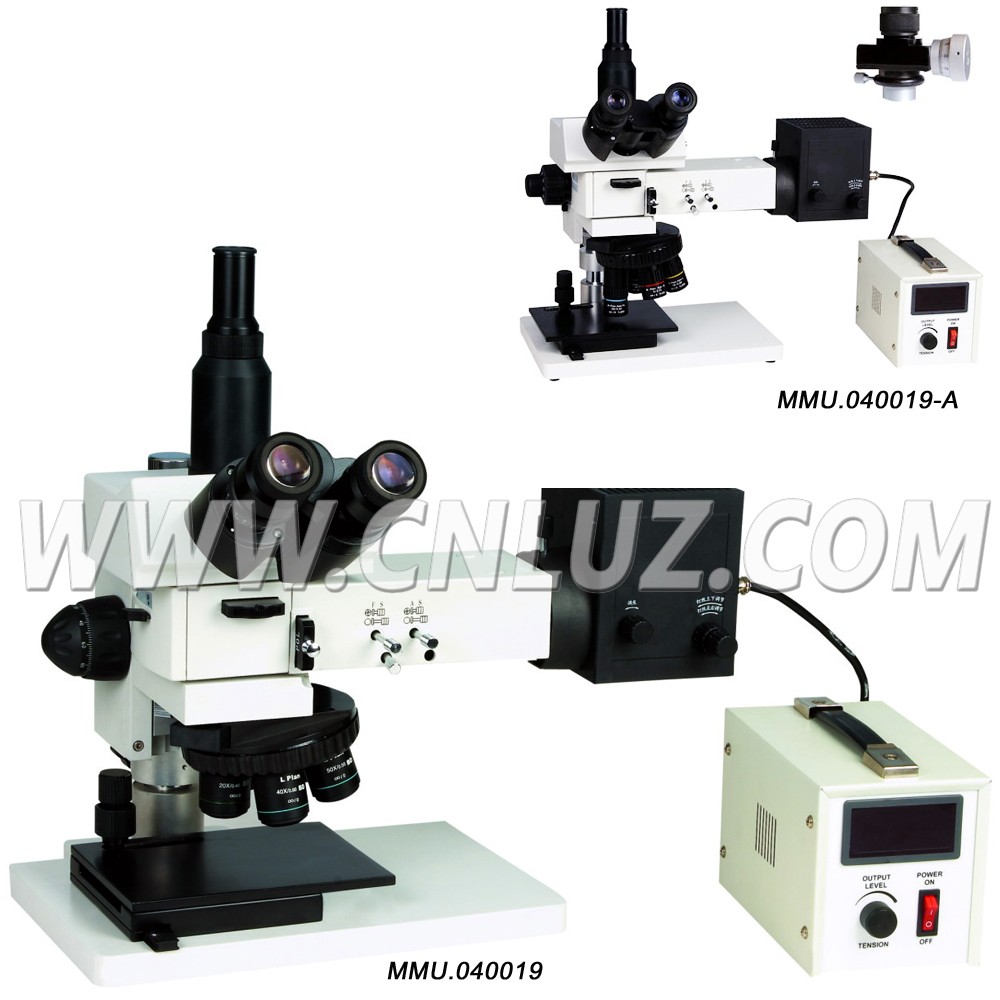

MMU.040019Upright Metallurgical, DIC, 50X~500X
  • /usr/575/images/Products/Y/57519553.jpg
  •
  •
  •

This industrial Metallurgical microscope is developed and aimed at the semiconductor industry, wafer manufacturing, electronic information industry, metallurgical industry. Used as an advanced Metallurgical microscope, the user can experience its super performance when using it.It can be widely used to identify and analyze Semiconductor, FPD, Circuit encapsulation, circuit substrate, Material, Casting/Metal/Ceramic parts, Precision moulds and observe thicker specimen. High quality and reliable optical system brings much clearer and contrast image. The design meets with the ergonomics needs and makes you feel comfortable and relaxed in doing your job.

MMU.040019:quintpule DIC, Infinity plan LWD bright & dark field objective 5x,10x,20x,40x

MMU.040019-A:quadruple center adjustable, Infinity plan LWD objective 5x,10x,20x,50x



Specification
MMU.040019
MMU.040019-A
Head
Compensation Free Trinocular, Inclination of 30 degree,50mm-75mm
Eyepiece

Wide field WF10X/25mm
Wide field WF10X/20mm with Crosshair 0.1mm
Infinity Plan Objectives
Infinity Plan Objectives Bright and Dark Field
with Long Working Distance
Infinity Plan Apochromatic Objectives
with Long Working Distance
Long Working Distance
PLL5X/0.1/W.D.29.4mm
Long Working Distance
PLL5X/0.15/W.D.35mm
Long Working Distance
PL L10X/0.25/W.D.16mm
Long Working Distance
PLL10X/0.28/W.D.35mm
Long Working Distance
PLL 20X/0.40/W.D.10.6mm
Long Working Distance
PLL20X/0.40/W.D.20mm
Long Working Distance
PLL40X/0.60 (spring) /W.D.5.4mm
Long Working Distance
PLL50X/0.55/W.D.13mm
Nosepiece
Quintuple with DIC Jack
Quadruple nosepiece with center adjustable
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.
Stage
Double Layer Mechanical (Size190mmX140mm,Moving Range:50mmX40mm)
Flashboard Filter
Blue Filter
Green Filter
Neutral Filter
Polarizing Device Analyzer rotatable 360°, Polarize &Analyzer can be moved in/out of the optical path
Checking Tool 0.01mm Micrometer
Illumination
12V/50W,AC 85V-230V , Adjustble Brightness,Halogen Bulb with Apertrue Iris Diaphragm and Field Iris Diaphragm

Item
Optional Accessories
Eyepiece
Micrometer Eyepiece
Infinity Plan Objectives

Long working distance 5.1mm PL L50X/0.55B.D.
Long working distance 4mm PL L80X/0.75B.D.
Long working distance 3mm PL L100X/0.8B.D.
Precision Stage X-Y Moving Range 25mmX25mm,Moving Precision<5um,Digital Hand Wheel Min Value:0.1um,360°Rotatable Disc
CCD Adapter
0.5X
0.57X
0.75X
Photo Adapter Photo Adapter
Planishing Tool
Planishing Tool
Polarization Set
Simple polarization set
DIC
10X
20X
40X
100X
CCD

1.3Mega、2.0 Mega、3.0 Mega,5.0 Mega pixels CMOS Digital camera eyepieces
CCD Camera,colour 1/3" High Resolution 520 TV lines
Light Source Halogen Bulb 12V/100W
Software Professional Metallurgical Image Analysis Software
Two-dimensional Measurement Software
