MMU.040020Upright Metallurgical, DIC, ,EPI-Illumination, 50X~400X
  • /usr/575/images/Products/Y/57519554.jpg
  •
  •
  •

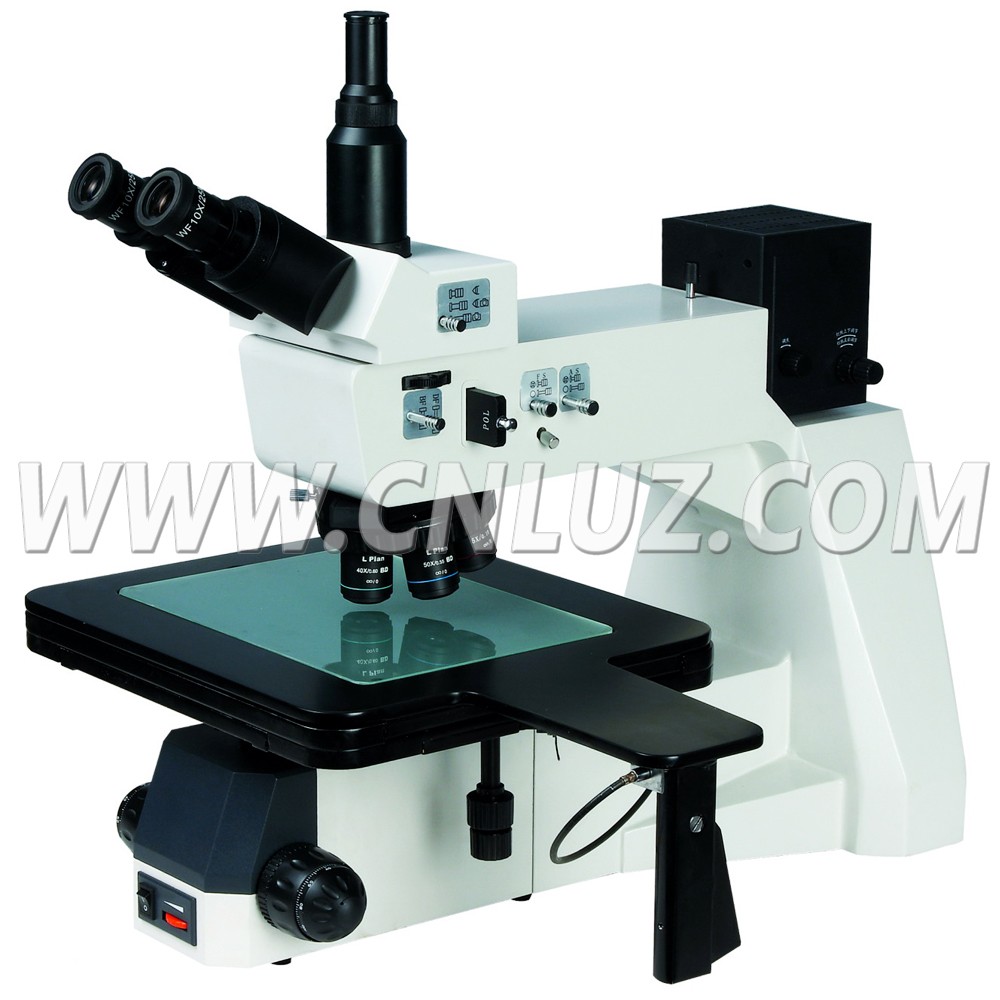

  • This industrial microscope is equipped with a large moving range mechanical stage, Epi-illuminator, long working distance bright and dark field Infinite Plan objectives, wide field eyepiece with clear images and good contrast.
  • It is developed and aimed at the semiconductor industry, wafer manufacturing, electronic in formation industry, metallurgical industry, and used as high grade industrial microscope. Bright & Dark field observation, EPI-polarizing and DIC observation can proceed.
  • It is widely used in Factories, Research institution and college and Universities to identify and analyze Wafer,FPD,Circuit substrate,Precision moulds.
Specification
MMU.040020
Head
Compensation Free Trinocular, Inclination of 30 degree,50mm-75mm
Eyepiece

Wide field WF10X/25mm
Wide field WF10X/20mm with crosshair 0.1mm
Infinity Plan Objectives
Infinity Plan Objectives Bright and Dark Field with Long Working Distance
Long Working Distance 29.4mm PL L5X/0.1B.D.
Long Working Distance 16mm PL L10X/0.25
Long Working Distance 10.6mm PL L 20X/0.40
Long Working Distance 5.4mm PL L40X/0.60
Nosepiece
Quintuple with DIC Jack
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.
Stage
Double Layer Mechanical (Size350mmX310mm,Moving Range:250mmX250mm)
Flashboard Filter
Blue Filter
Green Filter
Neutral Filter
EPI-Illumination Apertrue Iris Diaphragm and Field Iris Diaphragm
Illumination 12V/100W,AC 85V-230V Halogen Bulb,Adjustble Brightness
Polarizing Device Analyzer Rotatable 360°, Polarize &Analyzer can be moved in/out of the Optical Path
Checking Tool 0.01mm Micrometer

Item
Optional Accessories
Eyepiece

WF15X/17mm
WF20X/12.5mm
Objective

Infinity Plan Objectives Bright and Dark Field with Long Working Distance
Long working distance 5.1mm PL L50X/0.55B.D.
Long working distance 4mm PL L80X/0.75B.D.
Long working distance 3mm PL L100X/0.8B.D.
Precision Stage X-Y moving range 25mmX25mm,moving precision<5um,Digital hand wheel Min Value:0.1um,360°Rotatable Disc
CCD Adapter
0.5X
0.57X
0.75X
Photo Adapter
Photo Adapter
DIC

10X
20X
40X
100X
Planishing Tool
Planishing Tool
CCD
CCD Camera,colour 1/3" High Resolution 520 TV lines
Light Source
Halogen Bulb 12V/100W
Software
Professional Metallurgical Image Analysis Software
Two-dimensional Measurement Software
