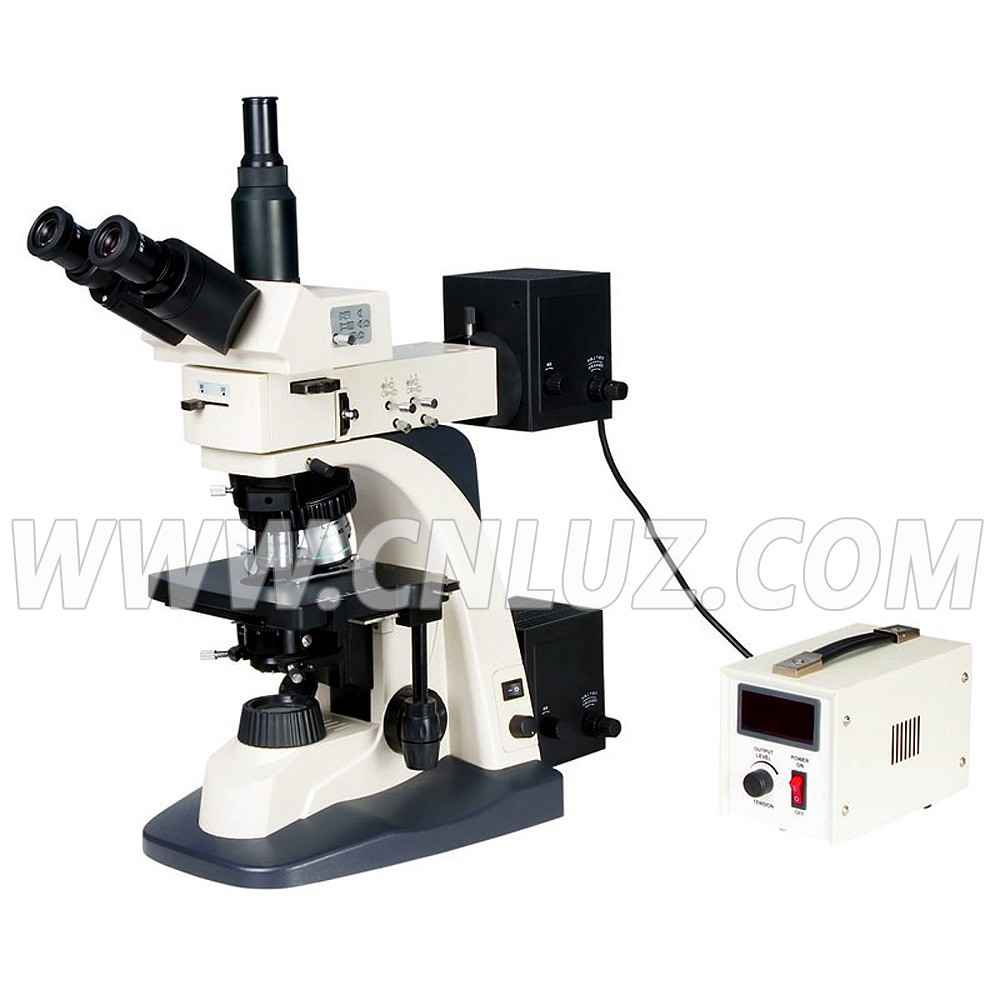

MMU.040025Trinocular Upright Metallurgical, 50X~400X
  • /usr/575/images/Products/Y/57519708.jpg
  •
  •
  •
  • This metallurgical microscope is developed and aimed at the semiconductor industry, wafer manufacturing, electronic information industry, metallurgical industry, Used as an advanced Metallurgical microscope, the user can experience its super performance when using it.
  • It can be widely used to identify and analyze Semiconductor, FPD, Circuit encapsulation, circuit substrate, Material, Casting/Metal/Ceramic parts, Precision moulds.
  • This instrument adopts both reflecting and transmitted illumination, Bright&Dark field, DIC and Polarizing observation can proceed under reflecting illumination, and the Bright field observation is done under transmitted light.
  • High quality and reliable optical system brings much clearer and sharper image. The design meets with the ergonomics needs and makes you feel comfortable and relaxed in doing your job.
Specification
MMU.040025
Head
Compensation Free Trinocular, Inclination of 30 degree,50mm-75mm
Eyepiece
Wide field WF10X/25mm
Wide field WF10X/20mm with crosshair 0.1mm
Infinity Plan Objectives Infinity Plan Objectives Bright and Dark Field with Long Working Distance
Long Working Distance 29.4mm PL L5X/0.1B.D.
Long Working Distance 16mm PL L10X/0.25 B.D.
Long Working Distance 10.6mm PL L 20X/0.40 B.D.
Long Working Distance 5.4mm PL L40X/0.60 (spring) B.D.
Nosepiece
Quadruple with DIC Jack
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.
Stage
Double Layer Mechanical(Size189mmX160mm,Moving Range:80mmX50mm)
Condenser
Abbe condenser N.A.1.25 with Iris diaphram & filter
Illumination
Transmission Illumination
EPI-Illumination:Apertrue Iris Diaphragm and Field Iris Diaphragm
Light Source 12V/50W,AC 85V-230V Halogen Bulb,Adjustble Brightness
Polarizing Device Analyzer Rotatable 360°, Polarize &Analyzer can be moved in/out of the Optical Path
Checking Tool 0.01mm Micrometer
Flashboard Filter
Blue Filter
Green Filter
Neutral Filter

Item
Optional Accessories
Eyepiece
Micrometer Eyepiece
Infinity Plan Achromatic Objectives

Long working distance 5.1mm PL L50X/0.55B.D.
Long working distance 4mm PL L80X/0.75B.D.
Long working distance 3mm PL L100X/0.8B.D.
Precision Stage X-Y moving range 25mmX25mm,moving precision<5um,Digital hand wheel Min Value:0.1um,360°Rotatable Disc
Light Source EPI-Illumination, Halogen Bulb 12V/100W,AC 85V-230V ,Adjustble Brightness
Software Two-dimensional Measurement Software
Professional Metallurgical Image Analysis Software
CCD Adapter
0.5X
0.57X
0.75X
Photo Adapter
Photo Adapter
DIC
10X
20X
40X
100X
Planishing Tool Planishing Tool
CCD CCD Camera,colour 1/3" High Resolution 520 TV lines
