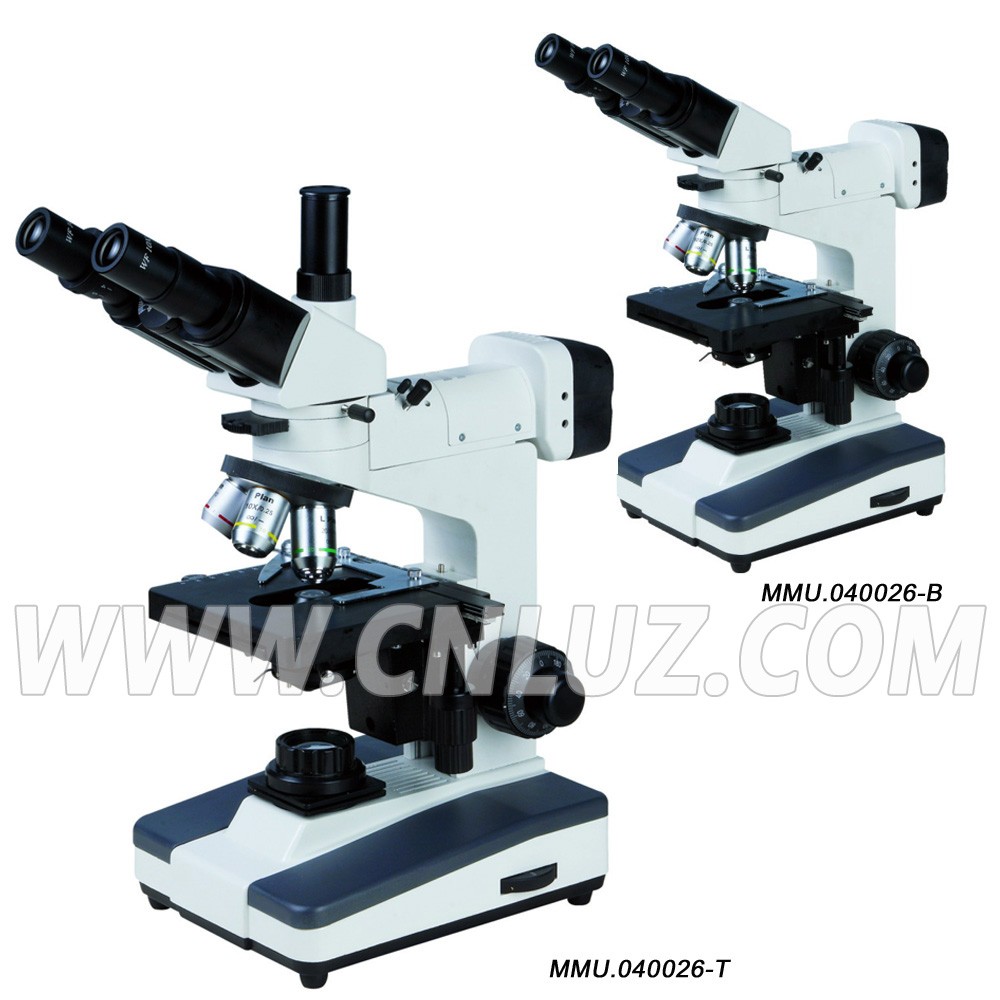

MMU.040026Binocular/Trinocular Upright Metallurgical, 40X~400X
  • /usr/575/images/Products/Y/57519709.jpg
  •
  •
  •
  • This up-right Metallurgical Microscope is applicable to the observation of transparent and opaque objects.
  • It is equipped with Epi-illumination, transmission illumination system, plan achromatic objectives with sharp & clear image and good contrast. In the meanwhile, it is eguiped with polarizing device, it’s an ideal instrument for research such as Metallographic, Precision Engineering and Electronics, suitable for School, Scientific research department and factories as well.
Specification
MMU.040026-B
MMU.040026-T
Head
Compensation Free Binocular,30°inclined,55mm-75mm
Compensation Free Trinocular,30°inclined,55mm-75mm
Eyepiece
Wide field WF10X/18mm
Wide field WF10X/18mm with crosshair 0.1mm
DIN Plan Metallurgical Objective
4X/0.1 W.D. 25mm
10X/0.25 W.D. 11mm
20X/0.4 W.D. 9mm
40X/0.6 W.D. 3.8mm
Nosepiece
Quadruple
Focusing
Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.
Stage
Double Layer Mechanical, Size:140mmX140mm,Moving Range:75mmX50mm)
Condenser
Abbe condenser N.A.1.25 with Iris diaphram & filter
Illumination
EPI-Illumination
Transmission Illumination
Light Source 6V/30W,AC 85V-230V Halogen Bulb,Adjustble Brightness
Polarizing Device Analyzer rotatable 360°, Polarize &Analyzer can be moved in/out of the Optical Path
Checking Tool 0.01mm Micrometer
Flashboard Filter
Blue Filter
Green Filter
Yellow Filter

Item
Optional Accessories
Head
Compensation Free Binocular,48mm-75mm
Compensation Free Trinocular,48mm-75mm
Eyepiece WF16X
Objective 50X
80X(S)
100X/(S)Oil
CMOS Eyepiece 1.3M
2.0M
3.0M
5.0M
Photo Adapter Photo Adapter
CCD Adapter
0.5X
0.57X
0.75X
Software
Professional Metallurgical Image Analysis Software
CCD
CCD Camera,colour 1/3" High Resolution 520 TV lines
