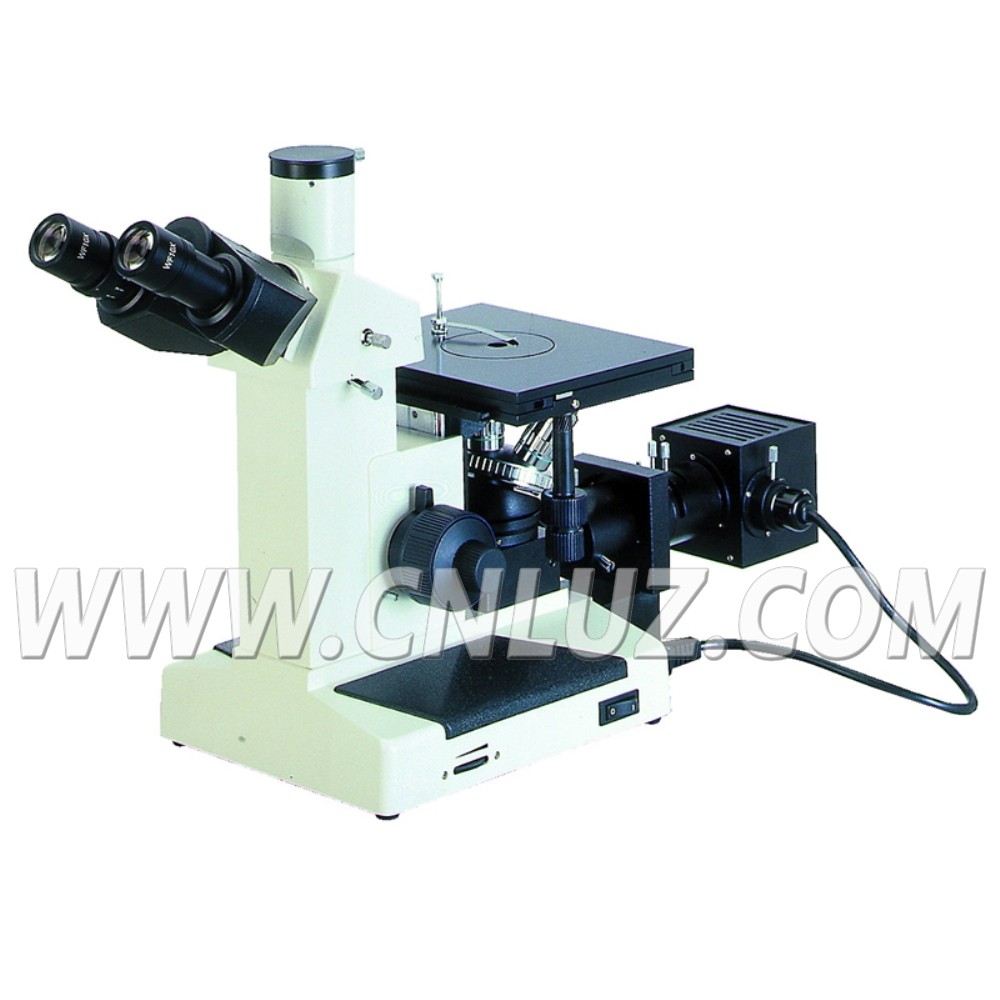

MMI.001002Inverted Metallurgical Microscope with LWD Plan Objectives
  • /usr/575/images/Products/Y/57517792.jpg
  • /usr/575/Picture/Y/10849.jpg
  • /usr/575/Picture/Y/10850.jpg
  •

This microscope is the conveniently operated optical instruments with excellent functions and new pattern,it is very suitable for usage This metallurgical microscope is used for identification and analysis of the structures in different metals and alloys, it is the important instrument for researching metallography in metal physics.

  • Plan achromatic objectives with long working distance (no cover glass)
  • Coaxial coarse/fine focusing system with tension adjustable and up stop
  • 6V 20W halogen lamp with brightness control
Specification
MMI.001002-B
MMI.001002-T
Eyepiece
WF10X(Φ18mm)
Head
Binocular
Trinocular
Objective
LWD Plan (no cover glass) PL 10x/0.25
LWD Plan (no cover glass) PLL20x/0.40
LWD Plan (no cover glass) PLL40x/0.60
LWD Plan (no cover glass) PL 100x/1.25 (Spring, oil)
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
Nosepiece
Quadruple ball bearing inner locating
Stage
Double layer mechanical, size 180x150mm, moving range 15x15mm
Filter
Blue filter
Green filter
Yellow filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control

Item

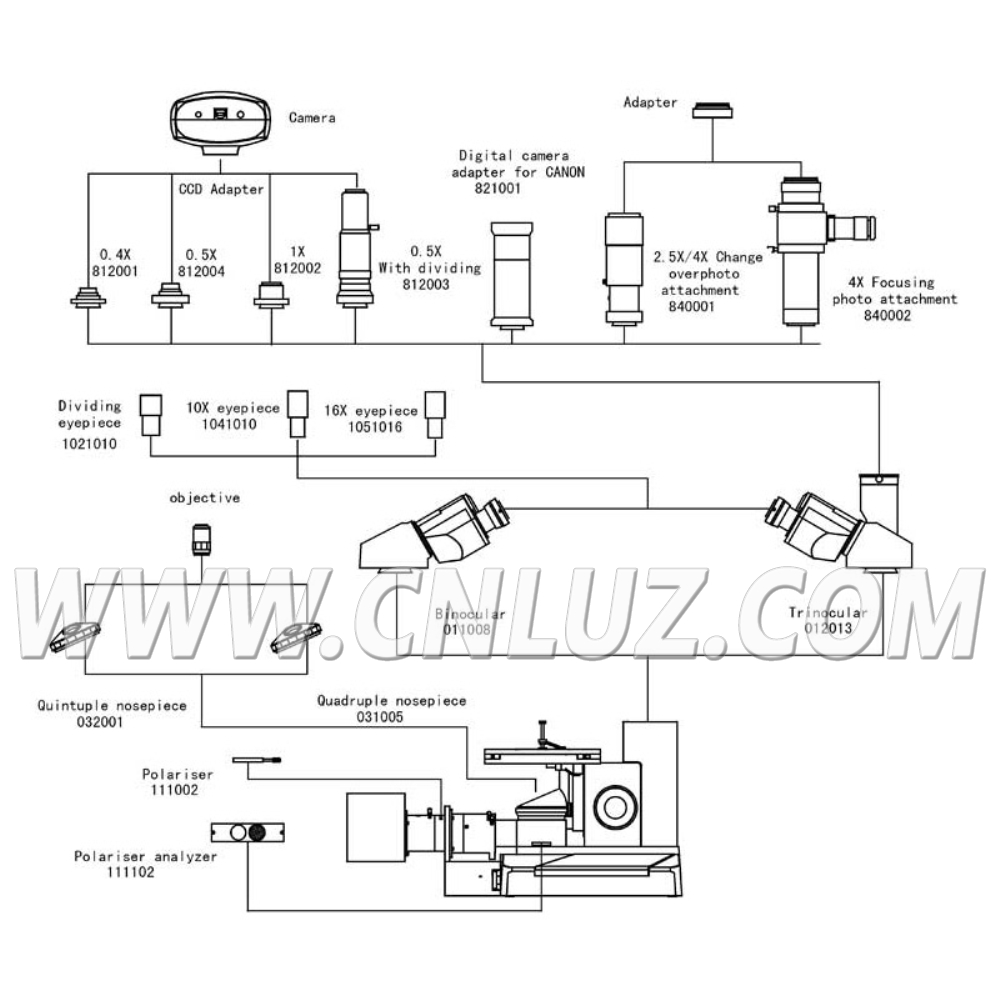

Optional Accessories
Eyepiece Wide field WF16x/11mm

Divding 10x, 0.1mm/Div
Objective
Plan long working distance (no cover glass) PL5x/0.12
Plan long working distance (no cover glass) PLL60x/0.75(Spring)
Plan long working distance (no cover glass) PLL100x/0.85(Spring)
Achromatic (no cover glass) 60x/0.85
Nosepiece
 Quintuple (Ball bearing inner locating)
Light Source
LED collector, bright and white light
Simple Polarizing Analyzer
Polarizer
CCD Adapter

 0.5X
1X
0.5X with reticles 0.1mm/Div
Digital Camera Adapter
 CANON EF digital SLR camera adapter
Photo Adapter
2.5x/4x change over photograph attachment with 10x viewing eypiece
4x focusing photograph attachment
MD adapter
PK adapter
