MMI.001001Inverted Metallurgical Microscope, 100X~1000X
  • /usr/575/images/Products/Y/57517793.jpg
  •
  •
  •

metallurgical microscope!

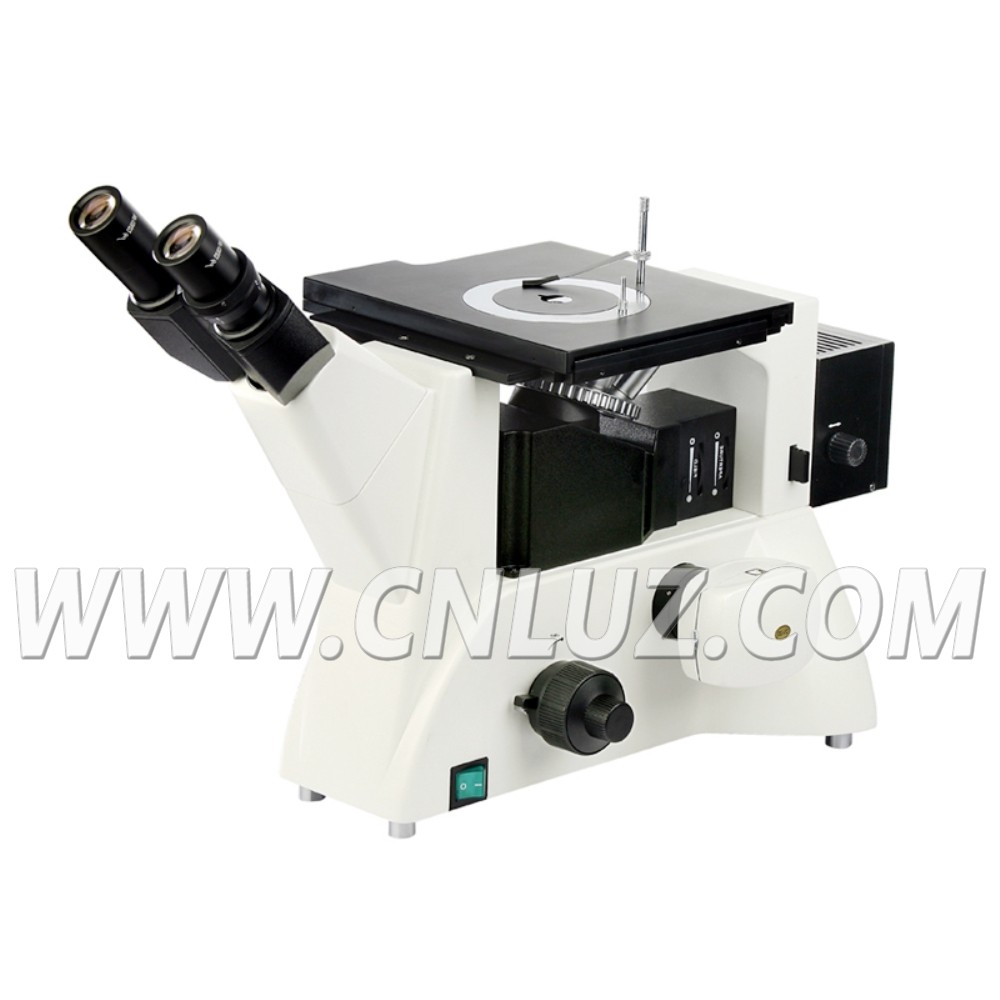

Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

Specification
MMI.001001-A
MMI.001001-B
Eyepiece
Wide field WF10X(field number:Φ22mm)
Infinity Plan Achromatic Objective

PL L10X/0.25 (Work distance):20.2 mm
(Equipped with bright field objectives)

PL L5X/0.12 BD (Work distance):9.7 mm
(Equipped with bright & dark field objectives)

PL L20X/0.40 (Work distance):8.80 mm
(Equipped with bright field objectives)

PL L10X/0.25 BD (Work distance):9.30 mm
(Equipped with bright & dark field objectives)

PL L50X/0.70 (Work distance):3.68 mm
(Equipped with bright field objectives)

PL L20X/0.40 BD (Work distance):7.23mm
(Equipped with bright & dark field objectives)

PL L100X/0.85 (Dry)Work distance):0.4 mm
(Equipped with bright field objectives)

PL L50X/0.70 BD (Work distance):2.50 mm
(Equipped with bright & dark field objectives)

Focus System
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
Eyepieces Tube
Inclination angle is 45°and interpupillary distance is 53~75mm.
Nosepiece
Quintuple (Backward ball bearing inner locating
Stage
Mechanical stage,overall size:242mmX200mm,moving range: 30mmX30mm
Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm.
Illumination System
6V30W halogen and brightness enable control.
12V50W halogen and brightness enable control.
Integrated field diaphragm , aperture diaphragm and puller type polarizer.
Equipped with frosted glass and yellow ,green and blue filters

Item
Optional Accessories
Eyepiece
Dividing eyepiece(field number:Φ22mm) 0.10mm/Div
Equipped with bright field objectives
PL L5X/0.10 (Work distance):26.12 mm
PL L40X/0.60 (Work distance):3.68 mm
PL L60X/0.70 (Work distance):3.18 mm
PL L80X/0.80 (Work distance):1.28 mm
Equipped with bright & dark field bjectives PL L40X/0.60 BD (Work distance):3.00 mm
PL L60X/0.70 BD (Work distance):1.90 mm
PL L80X/0.80 BD (Work distance):0.80mm
PL L100X/0.85 BD (Work distance):0.22 mm
CCD Adapter

0.5X
1X
0.5X with reticles 0.1mm/Div
Digital Camera Adapter
CANON EF digital SLR camera adapter
