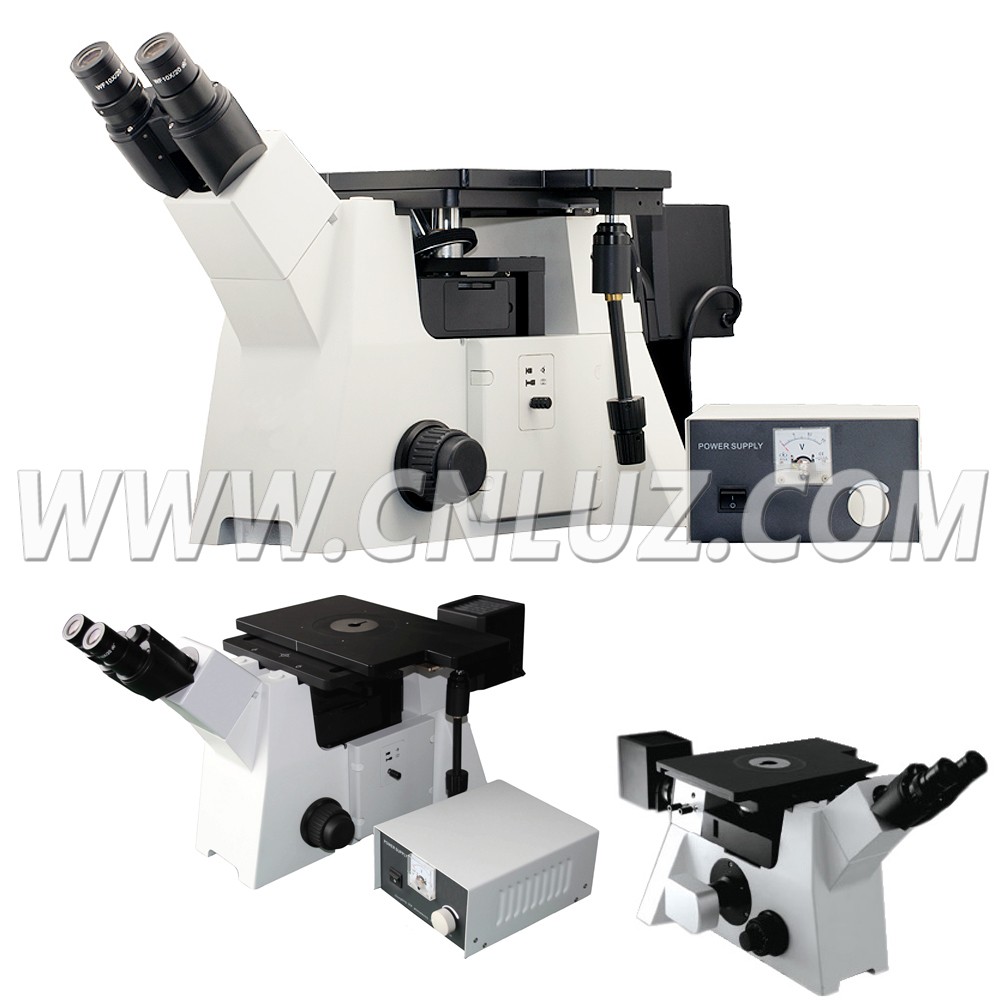

Inverted Metallurgical, 100X~800X, UCIS Infinity Independent Achromatic Optical System

MMI.038010Inverted Metallurgical, 100X~800X, UCIS Infinity Independent Achromatic Optical System

UCIS Infinity Independent Achromatic Optical System
WF10x Plan Eyepieces, 18mm Field of View, High Eye Point up to 21mm
Seidentopf Binocular/Trinocular Viewing Head, Inclined 30º, Rotatable 360º
Light Distribution: Binocular 100% or Binocular/Trinocular 20%/80%
52-75mm Interpupillary Distance Settings
±5 Diopter Adjustment
Quadruple Nosepiece Inward Facing with Positive Click Stops

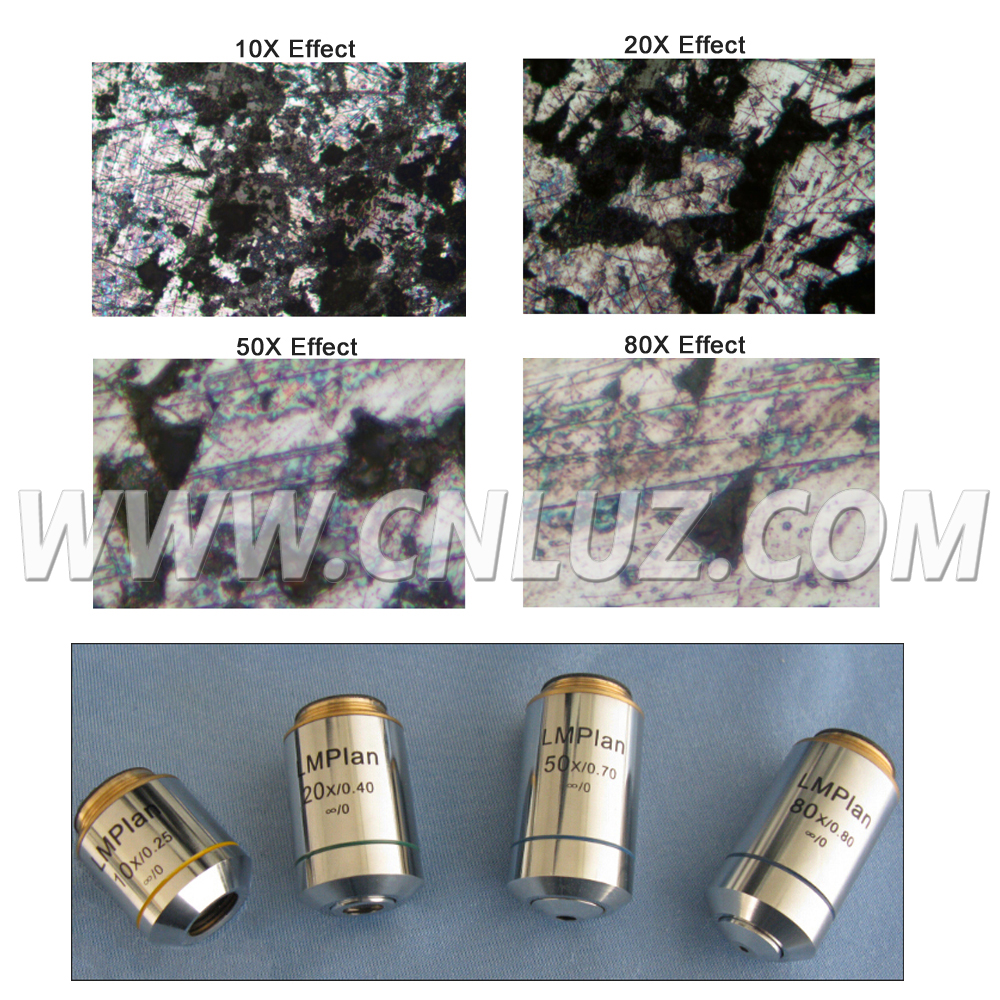

Infinity Long Work Distance Achromatic10x, 20x(s), 50x(s) and 80x(s) Objectives
Mechanical Stage, Size: 350mm×208mm, Movement Range: 50mmX50mm
Coaxial Coarse and Fine Focus Mechanism with Markings on Fine Focus Knobs. Fine Focus Sensitivity 0.001mm
12V50W Halogen Bulb, 110-240V Wide Voltage
Dust Cover, Clear Blue/Yellow/Green/50%Cutting Filter, Power Cord, Immersion Oil.

Specification	MMI.038010
Optical System	UCIS infinity independent achromatic optical system
Head	Seidentopf binocular head,45° inclined, interpupillary distance 52-75mm,diopter adjustable
Eyepiece	WF10x/20mm, plan, reticule eyepiece, diopter adjustable
Eyepiece	WF10x/20mm, plan, high eyepoint up to 21mm,
Objective	Infinity plan achromatic objective 10x
	Infinity plan achromatic objective 20x(s)
	Infinity LWD plan achromatic objective 50x(s)
	Infinity LWD plan achromatic objective 80x(s)
Nosepiece	Quintuple, reversed type with positive click stops
Focusing	Low positioned, coaxial coarse&finefocusing system with adjustable tension control and upper limit stop,minimum reading 1μm, moving range 12mm
Stage	Specimen holder
	Drop specimen holder(φ118)
	Right hand controls, low position, mechanical stage, size 350x208mm, moving range 50x50mm.
Polarizing Attachment	Polarizer
Polarizing Attachment	Analyzer
Filter	Blue
	Green
	Yellow
Adapter	0.5x C-Mount
Reflected Light	12V100W halogen lamp house
	12V 50W halogen power supply unit
	12V50W halogen bulb (Osram)
	250V/5A Φ5X20 fuse
	Power supply 110-240V，50/60Hz
Illumination	Bright field module
Illumination	Multi-function half reflecting device
Other	Metallurgical micrometer（1/100mm）
	Dust cover
	Power cord
	Allen screw driver 2mm
	Allen screw driver 2.5mm
	Allen screw driver 3mm

Item	Optional Accessories
Head	Seidentopf Binocular Head,30° Inclined, Interpupillary Distance 48-75mm, Diopter Adjustable
Eyepiece	WF16X/13mm
Eyepiece	WF10x/22mm, plan, high eyepoint up to 21mm
Objective	Infinity plan achromatic objective 5x
Objective	Infinity plan achromatic objective 100x
Stage	Fixed stage, size 240x260mm，moving range 135x85mm, low position, coaxial adjustment
Adapter	Digital camera adapter (need to know camera model number)
Adapter	0.25x, C-Mount (suitable to 1/3" CCD)
Light Source	12V 100W halogen lamp house
	12V 100W halogen bulb (Osram)
	250V/5A Φ5X20
Other	Specimen presser
