Head

Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable

Optical System

Infinity optical system

Eyepiece

Infinity Plan Achromatic Objectives 4×

Infinity Plan Achromatic Objectives 10×

Infinity Plan Achromatic Objectives 40×

Infinity Plan Achromatic Objectives 100×

Backward Quintuple Nosepiece

Focusing

Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm

Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm

Condenser

Swing Condenser N.A.0.95/0.25

Fluorescent System

6 Position Disc Reflected Flourescent System
--Power Supplier Box, 220V/110V Interchangeable, Digital Display
--100W HBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescent Free Oil

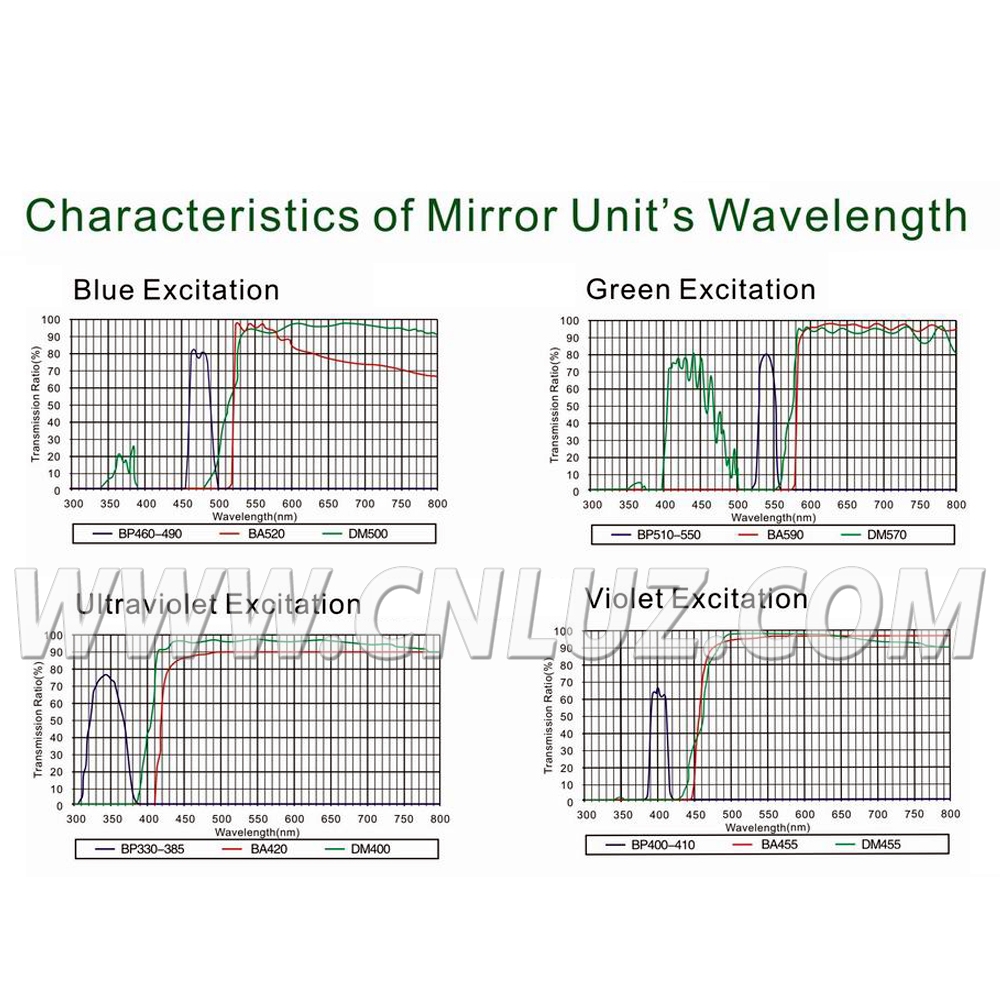

--Blue Excitation Filter, BP460~490, DM500, BA520
--Green Excitation Filter, BP510~550, DM570, BA590

Illumination

External Kohler Illumination, Asperical Collector, Halogen Lamp 6V30W, Brightness Adjustable

Fluorescent System

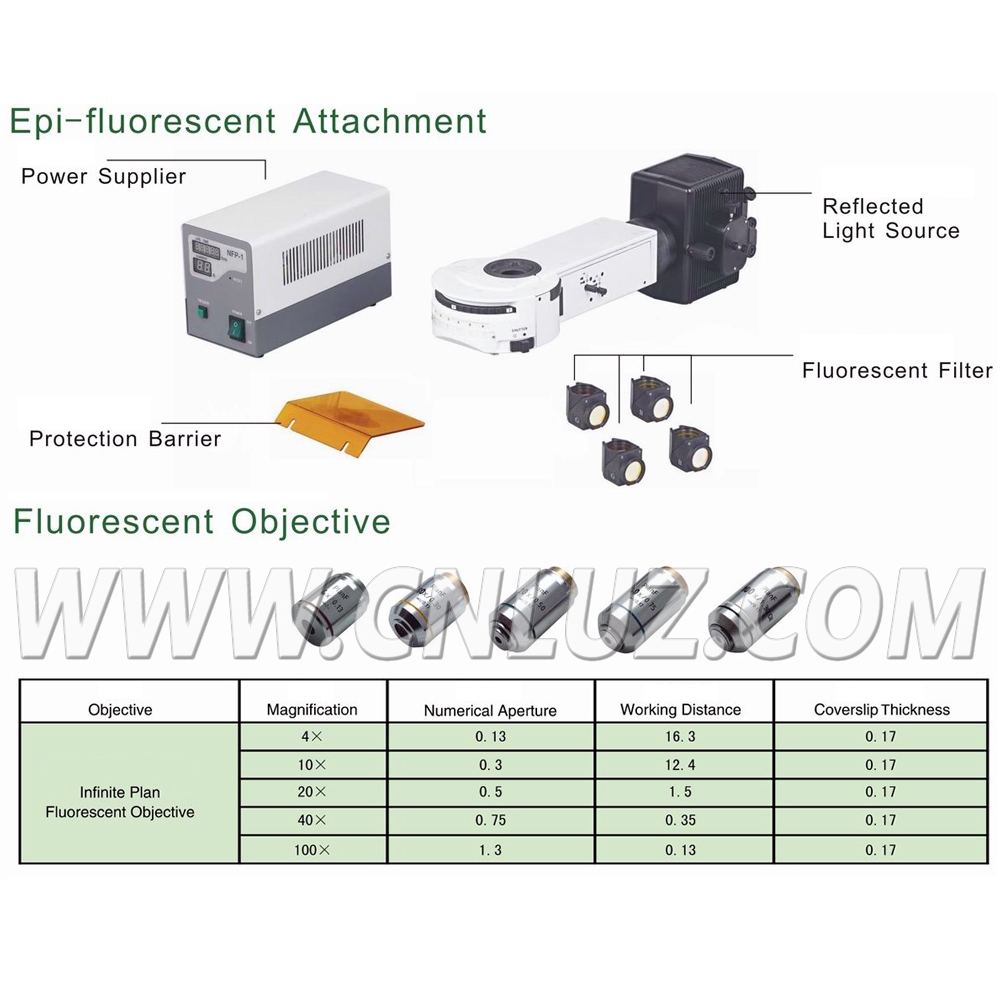

Infinity Plan Fluorescent Objective 4x/0.13/0.17, W.D.16.3

Infinity Plan Fluorescent Objective 10x/0.3/0.17, W.D.12.4

Infinity Plan Fluorescent Objective 20x/0.5/0.17,W.D.1.5

Infinity Plan Fluorescent Objective 40x/0.75/0.17,W.D.0.35

Infinity Plan Fluorescent Objective 100x/1.3/0.17,W.D.0.13

Blue Excitation (B1) Filter, BP460~495, DM505, BA510~550

Ultraviolet Excitation Filter, BP330~385, DM400, BA420

Violet Excitation Filter, BP400~410, DM455, BA455

Netural Filter ND6

Netural Filter ND25

Epi-Fluorescent Centering Slide

Adapter

Photo Adapter

C-Mount 1.0x

C-Mount 0.5x
