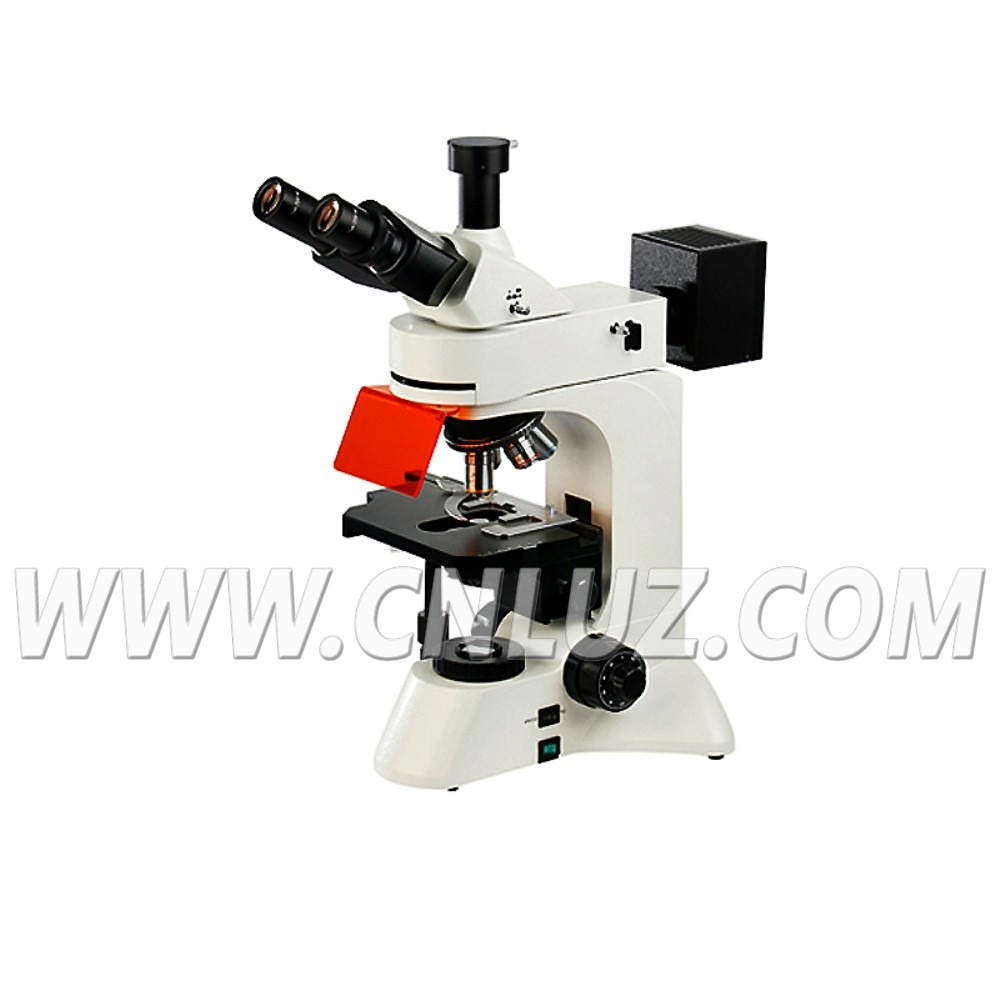

MFU.001005Upright Fluorescent Microscope
  • /usr/575/images/Products/Y/57517797.jpg
  • /usr/575/Picture/Y/10857.jpg
  • /usr/575/Picture/Y/10858.jpg
  •

LED Epi-fluorescent microscope

  • High Quality Infinity Color Corrected System and Module Design
  • Infinity Plan Achromatic Fluorescent Objective for Sharp Image
  • Plan Eyepiece with Large Wide Field WF10x/22mm。
  • Coaxial Coarse & Fine Focusing with Lock and Upper Limited System
  • Transimit Light : 3W High Light White LED, Tensity Adjustable
  • Reflect Light: 3W High Light Monocolor LED, Can Switch to Different Wavelength
  • Trinoclar Head with 100% Light Path Switch Between Eye View and Photo Capturing
  • Wide Range Voltage 85-265V 50/60Hz Power Supply
Specification
MFU.001005-L2
MFU.001005-L4
Eyepiece
Wide field WF10X(|μ22mm)
Eyepiece Tube
Trinocular, Inclination of 30°.
Objective
Infinity plan achromatic objectives
PL 4X/0.10(Work distance):19.8 mm
PL 10X/0.25 (Work distance):5.0 mm
PLF L40X/0.85 spring(Work distance):0.42mm(No magnification spherochromatic aberration )
PL 100X/1.25(Spring, oil) (Work distance):0.36mm
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece
Quadruple(Backward ball bearing inner locating)
Stage Double Layer Mechanical, Size 210x140mm,movingrange 75x50mm
Fluorescent Filter
B
B
G
G

UV

V
Epi-fluorescent illumination system
3W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source, every monochromatic LED wave band: Green (520nm~530nm) Blue( 460nm~470nm)
Transmitted illumination
system
Abbe condenser NA.1.25 Rack & pinion adjustable
Blue filter and Ground glass
Collector for LED illumination and integrated field diaphragm
3W high brightness white LED, brightness adjustable.

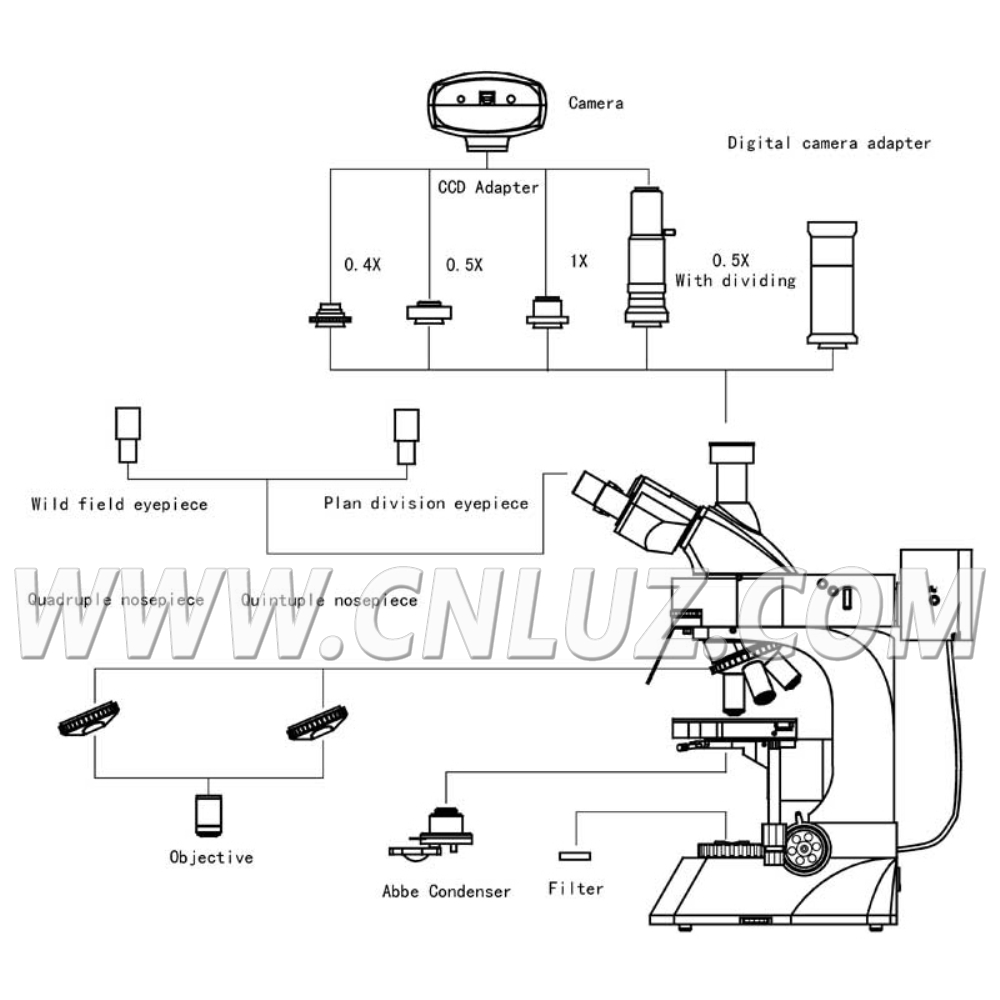

Item
Optional Accessories
Eyepiece
Dividing eyepiece(field number:|μ22mm) 0.10mm/Div
Objective

Infinity plan achromatic objective PL 60X/0.80(Work distance):0.46 mm
Infinity plan achromatic fluorescent objective PL FL10X/0.35(Work distance):2.37 mm
Digital Camera Adapter
CANON(EF) NIKON( F)
LED
Violet(390nm~400nm)
Ultraviolet(360nm~370nm)
Nosepiece
Quintuple (Backward ball bearing inner locating)
Filter
Green filter
Yellow filter
CCD Adapter
0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Fluorescent filters

V(Violet)
UV(Ultraviolet)
