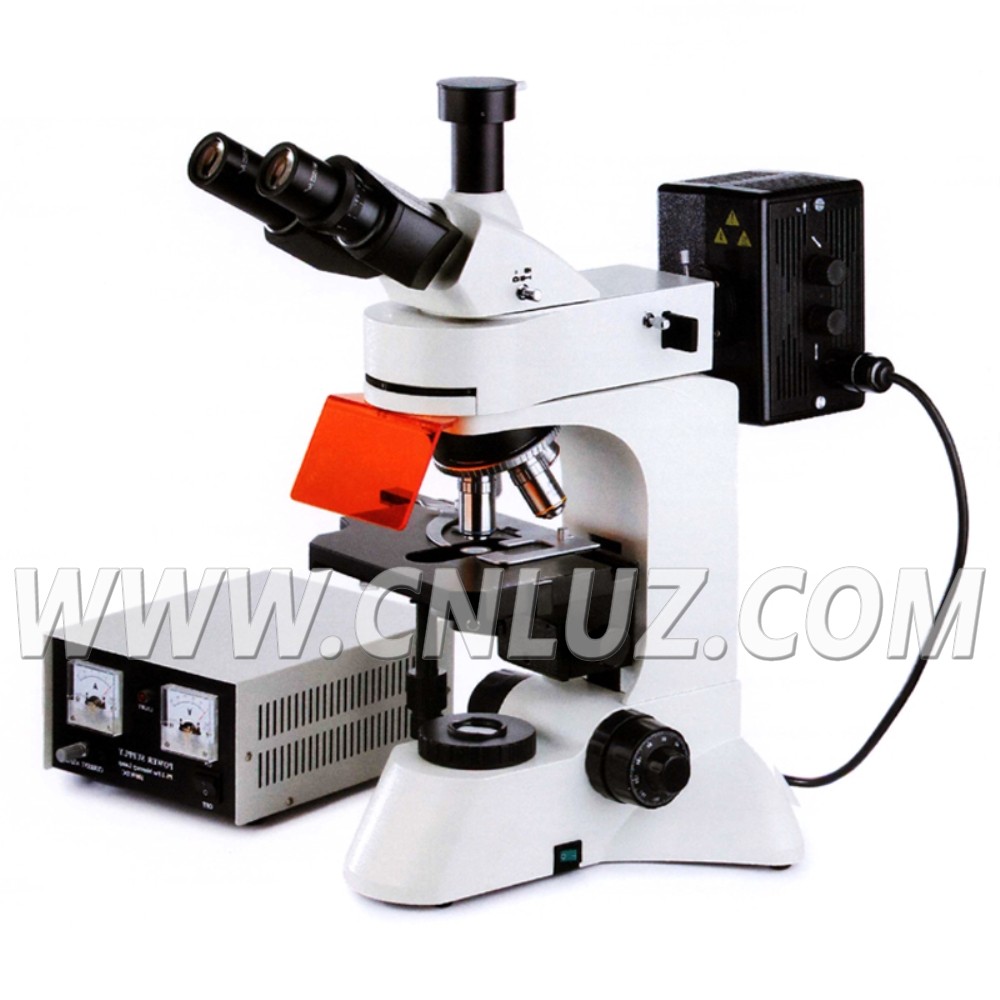

MFU.001004Upright Fluorescent Microscope

Epi-fluorescent microscope！

MFU.001004 Epi-fluorescent microscope is used for fluorescence microscopy and transmitted bright field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear and high contrast picture in your wide view field. The main body design meets with the ergonomics needs and makes you feel comfortable and relaxed in process of operation. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Adopt infinity optical system and modularization function design.
Equipped with infinity plan achromatic fluorescent objectives, enable obtain more clearer and brighter image.
Wide-field plan eyepieces: field number Ф22mm.
Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm
Transmitted illumination system: Integrated field diaphragm and 6V30W halogen lamp, adding radiator and
brightness control.
Epi-illumination system: 100W/DC mercury lamp. The voltage of power supply is 220V or 110V.
Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance
microphotography.

Specification	MFU.001004
Eyepiece	Wide field WF10X(\|μ22mm)
Eyepiece Tube	Trinocular, Inclination of 30°.
Objective	Infinity plan achromatic objectives
	PL 4X/0.10 (Work distance)：19.8 mm
	PL 10X/0.25 (Work distance)：5.0 mm
	PLF L40X/0.85 spring(Work distance)：0.42mm(No magnification spherochromatic aberration )
	PL 100X/1.25(Spring, oil) (Work distance)：0.36mm
Focus System	Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece	Quintuple(Backward ball bearing inner locating)
Stage	Double layer mechanical Size:210mmX140mm,movingrange:75mmX50mm)
Epi-fluorescent illumination system	Power supply unit, 110V or 220V can be selected.
	Mercury lamp is 100W/DC
	Turnplate Epi-fluorescence illuminator (UV.V.B.G filters system)
Transmitted illumination system	Abbe condenser NA.1.25 Rack & pinion adjustable
	Blue filter and Ground glass
	Collector for halogen lamp illumination and integrated field diaphragm
	6V 30W halogen lamp, adjustable brightness

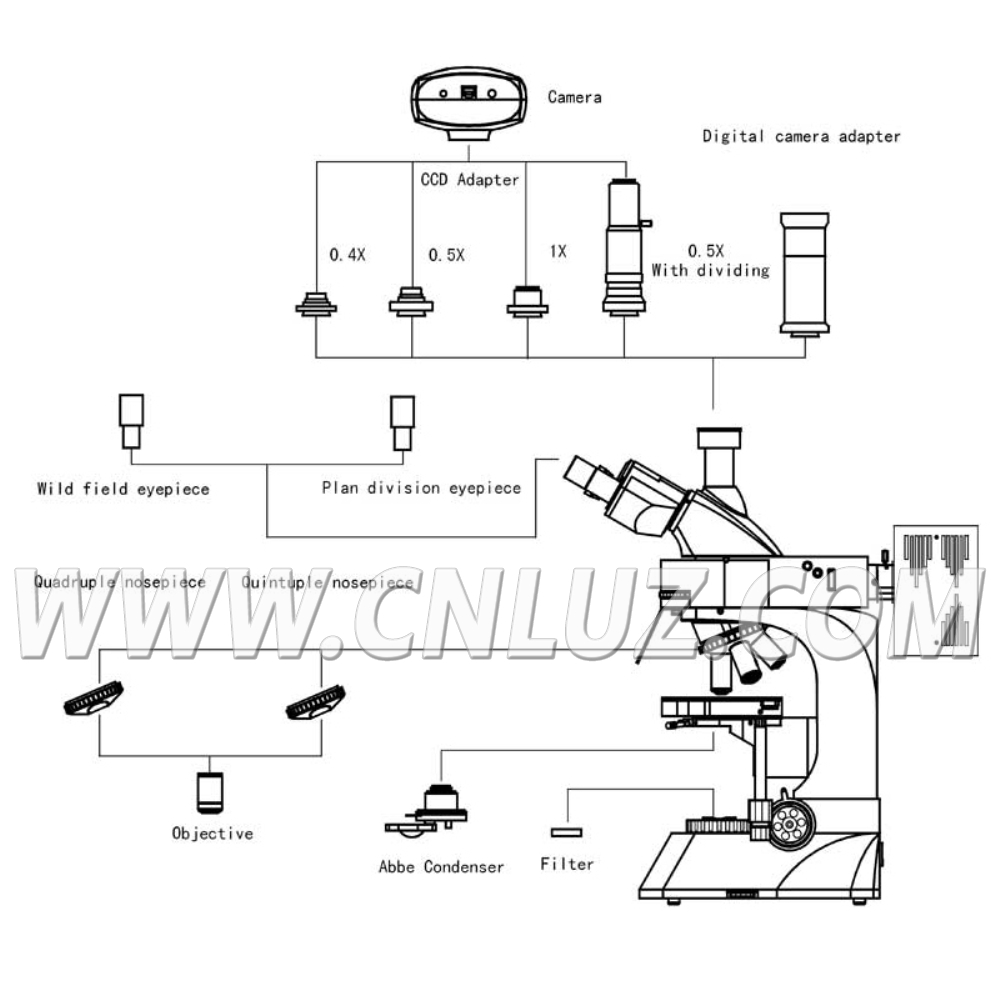

Item	Optional Accessories
Eyepiece	Dividing eyepiece(field number:\|μ22mm) 0.10mm/Div
Objective	Infinity plan achromatic objective PL 60X/0.80(Work distance)：0.46 mm
Objective	Infinity plan achromatic fluorescent objective PL FL10X/0.35(Work distance)：2.37 mm
Digital Camera Adapter	CANON(EF) NIKON( F)
LED	Violet(390nm~400nm)
LED	Ultraviolet(360nm~370nm)
Nosepiece	Quintuple (Backward ball bearing inner locating)
Filter	Green filter
Filter	Yellow filter
CCD Adapter	0.4X
	0.5X
	1X
	0.5X with dividing 0.1mm/Div
Fluorescent filters	V(Violet)
Fluorescent filters	UV(Ultraviolet)
