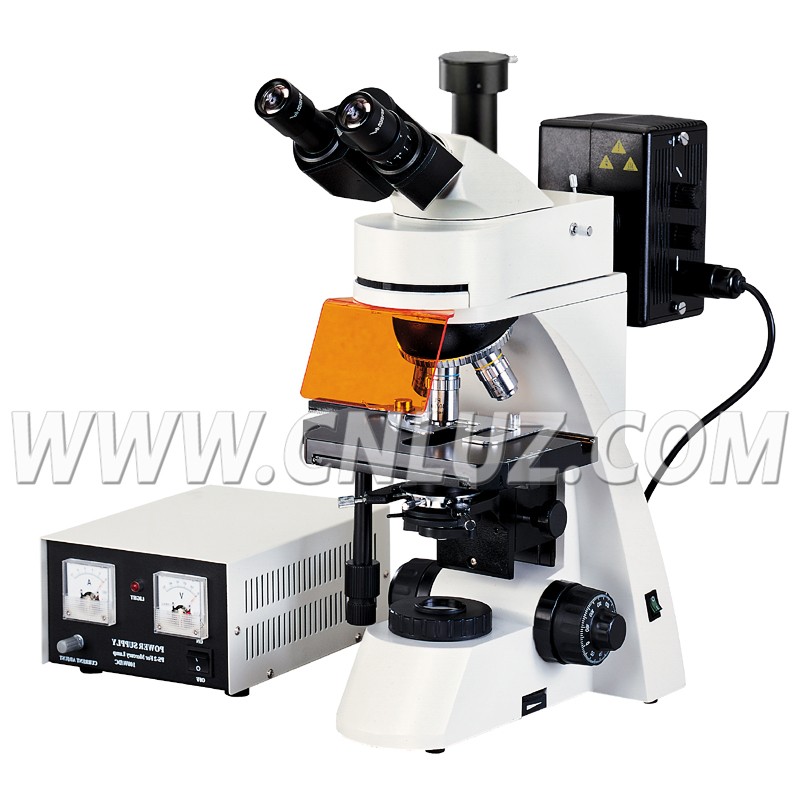

MFU.001002Upright Fluorescent Microscope
  • /usr/575/images/Products/Y/57517800.jpg
  • /usr/575/Picture/Y/10863.jpg
  • /usr/575/Picture/Y/10864.jpg
  •

Epi-fluorescent Microscope

MFU.001002 Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation.

It is equipped with infinity plan achromatic objectives and wide field eyepieces, have clear picture and wide view field.

It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc.

It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

  • With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
  • 20W 6V halogen lamp with electronic dimmer
Specification
MFU.001002
Eyepiece
Wide field WF10X (Φ20mm)
Eyepiece Tube
Trinocular (Inclination of 30°)
Objective
Infinity plan achromatic Objectives PL 4X/0.10
Infinity plan achromatic Objectives PL 10X/0.25
Infinity plan achromatic Objectives PL 40X/0.65(Spring)
Infinity plan achromatic Objectives PL 100X/1.25(Spring, oil)
Focus System
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece
Quadruple(Backward ball bearing inner locating
Stage Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)
Abbe Condenser
N.A.1.25 Rack & pinion adjustable
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light Source
6V 20W halogen lamp, adjustable brightness
Reflected Fluorescence System
Mercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:420~485nm
Fluorescence filter system G exciton wavelength:460~550nm
Fluorescence filter system UV exciton wavelength:330~400nm
Fluorescence filter system V exciton wavelength:395~415nm

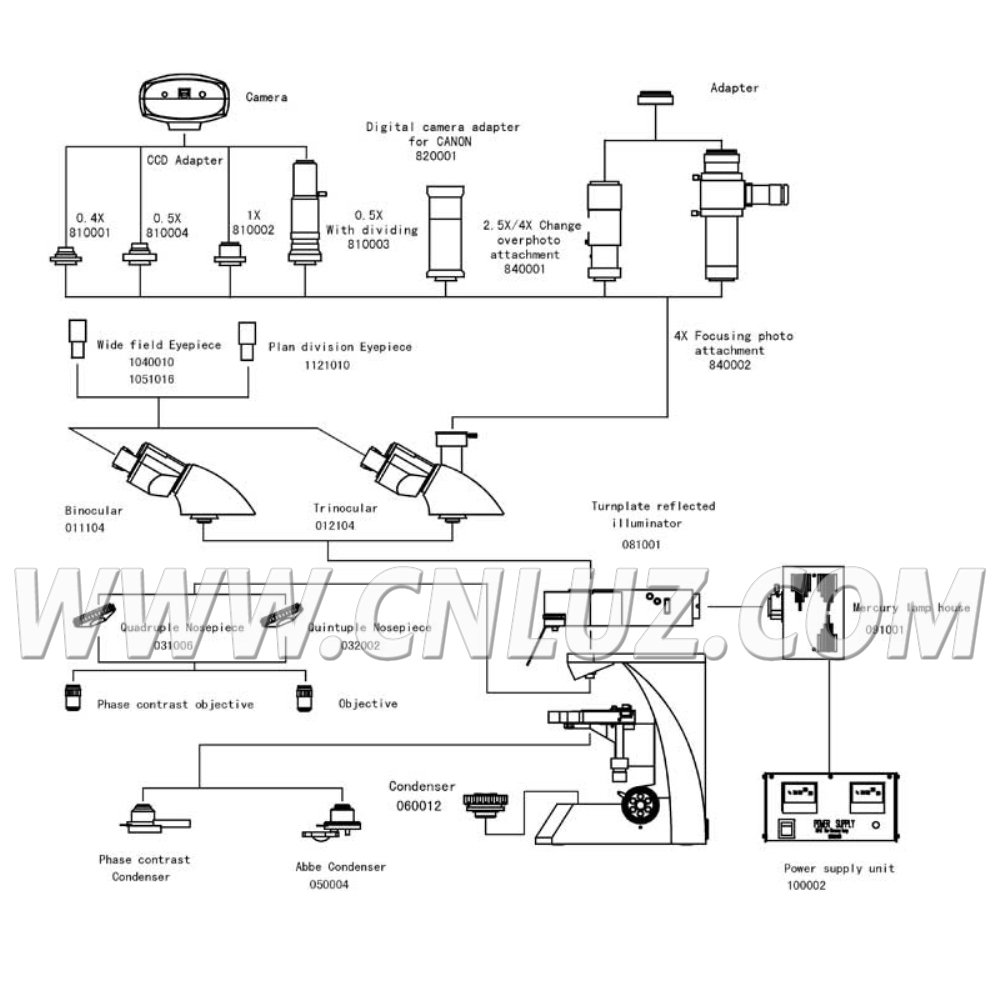

Item
Optional Accessories
Eyepiece
Wide field eyepiece WF16X/11mm
Dividing 10X/20mm, 0.1mm/Div
Objective
Infinity plan achromatic 20x/0.40
Eyepiece Tube
Binocular (Inclination of 30°)
Nosepiece
Quintuple (Backward ball bearing inner locating)
Filter
Green filter
Yellow filter
Phase Contrast Unit
Eyepiece: centering telescope
Phase contrast plan achromatic objective 10X/0.25 PHPl)
Phase contrast plan achromatic objective 20X/0.40 PHP
Phase contrast plan achromatic objective 40X/0.65 PHP(Spring)
Phase contrast plan achromatic objective 100X/1.25 PHP(Spring, oil)
(PH-I) Turnplate phase contrast condenser
(PH-II) Turnplate phase contrast condenser
Flashboard phase contrast condenser
Pull board phase contrast condenser
CCD Adapter
0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
DC Adapter
Digital camera adapter CANON (A610,A620,A630,A640)
Photo Adapter
2.5X/4X Change over photograph adapter with 10X viewing eyepiece
4X Focusing photograph adapter
PK Adapter
MD Adapter
