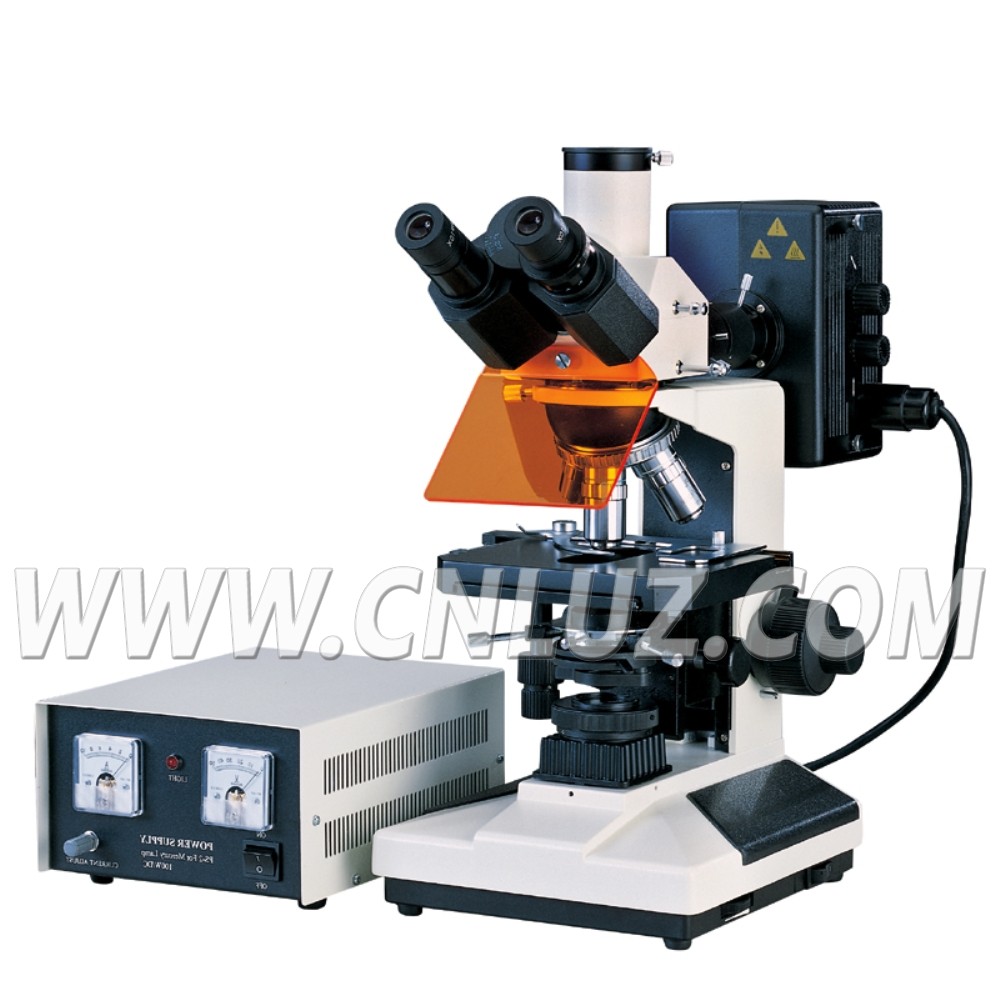

MFU.001001Upright Fluorescent Microscope

Inverted & Reflected Fluorescence Microscopes！

These series reflected fluorescence microscopes are used for fluorescence microscopy and transmitted bright field observation. They are the ideal instruments in biology, cytology, oncology, geneticist, immunology etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

With wide field eyepieces, plan achromatic objectives and fluorescence objectives, the field of view is widely and clear.
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
6V 20W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit

Specification	MFI.001001
Eyepiece	Wide field WF10X (Φ20mm)
Eyepiece Tube	Trinocular (Inclination of 30°, 100% image light for photography capable)
Objective	Long working distance plan achromatic objectives PL L 10X/0.25
	Long working distance plan achromatic objectives PL L 25X/0.40
	Long working distance plan achromatic objectives PL L 40X/0.60
	Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
	Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
	Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
Focus System	Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece	Quintuple (Ball bearing inner locating)
Stage	Double layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
Filter	Blue filter
	Green filter
	Frosted filter
Shelf of Specimen	Match to install \|μ68mm or 77mmX29mm culture utensil
	Match to install 82mmX57mm culture utensil
	Match to install 128mmX85mm 96 holes culture utensil
Reflected Fluorescence System	Mercury lamp house 100W/DC
	Power supply unit:AV:110V or 220V
	Fluorescence filter system B exciton wavelength:420~485nm
	Fluorescence filter system G exciton wavelength:460~550nm
	Fluorescence filter system UV exciton wavelength:330~400nm
	Fluorescence filter system V exciton wavelength:395~415nm
Turnplate Phase Contrast Unit	Centering telescope
	Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm

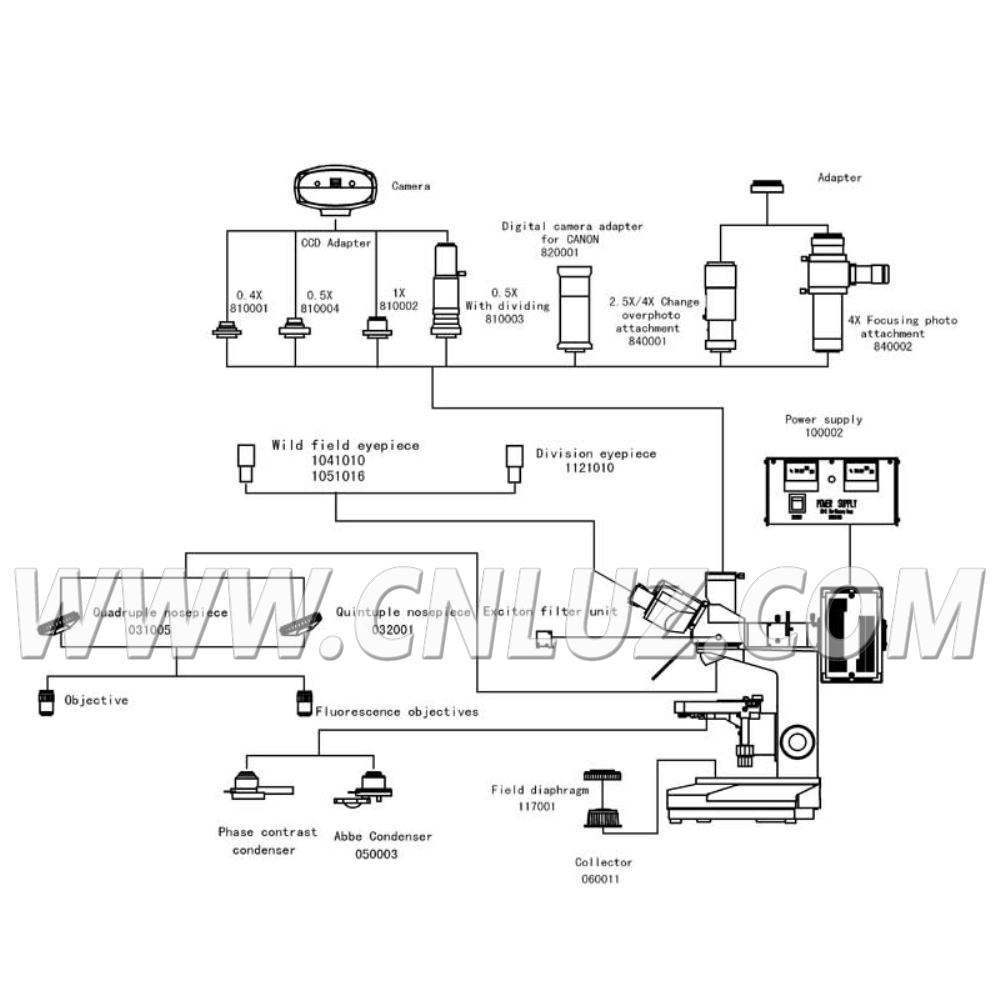

Item	Optional Accessories
Eyepiece	Wide field eyepiece WF16x/11mm
Eyepiece	Dividing 10x/20mm, 0.1mm/Div
Condenser	Ultra long working distance,W.D.:70mm
Filter	Yellow filter
Power Supply	100W fluorescence power supply (Wide voltage range, constant power , calculagraph)
Phase Contrast	Compensation phase contrast set
CCD Adapter	0.4X
	0.5X
	1X
	0.5X with dividing 0.1mm/Div
Polarizing	Simple Polarization Set
DC Adapter	Digital camera adapter CANON (A610,A620,A630,A640)
Photo Adapter	2.5X/4X Change over photograph adapter with 10X viewing eyepiece
	4X Focusing photograph adapter
	MD Adapter
	PK Adapter
