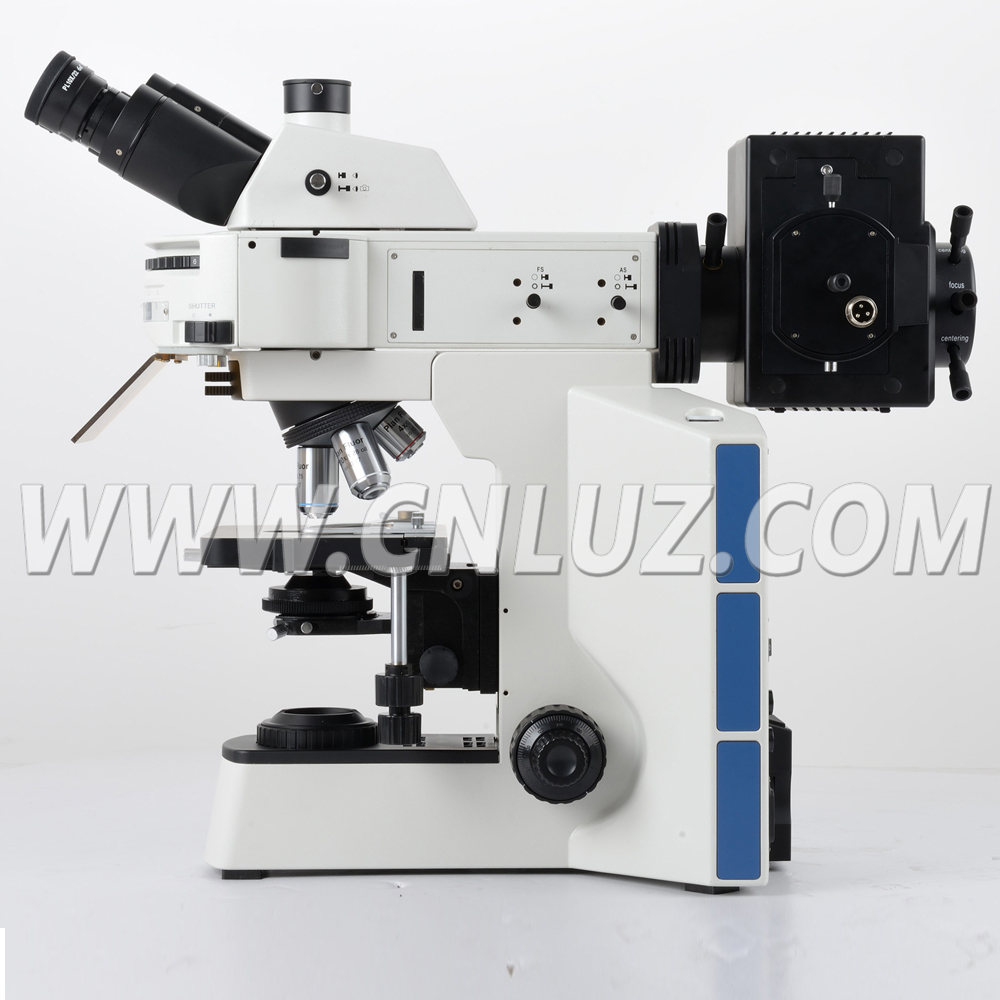

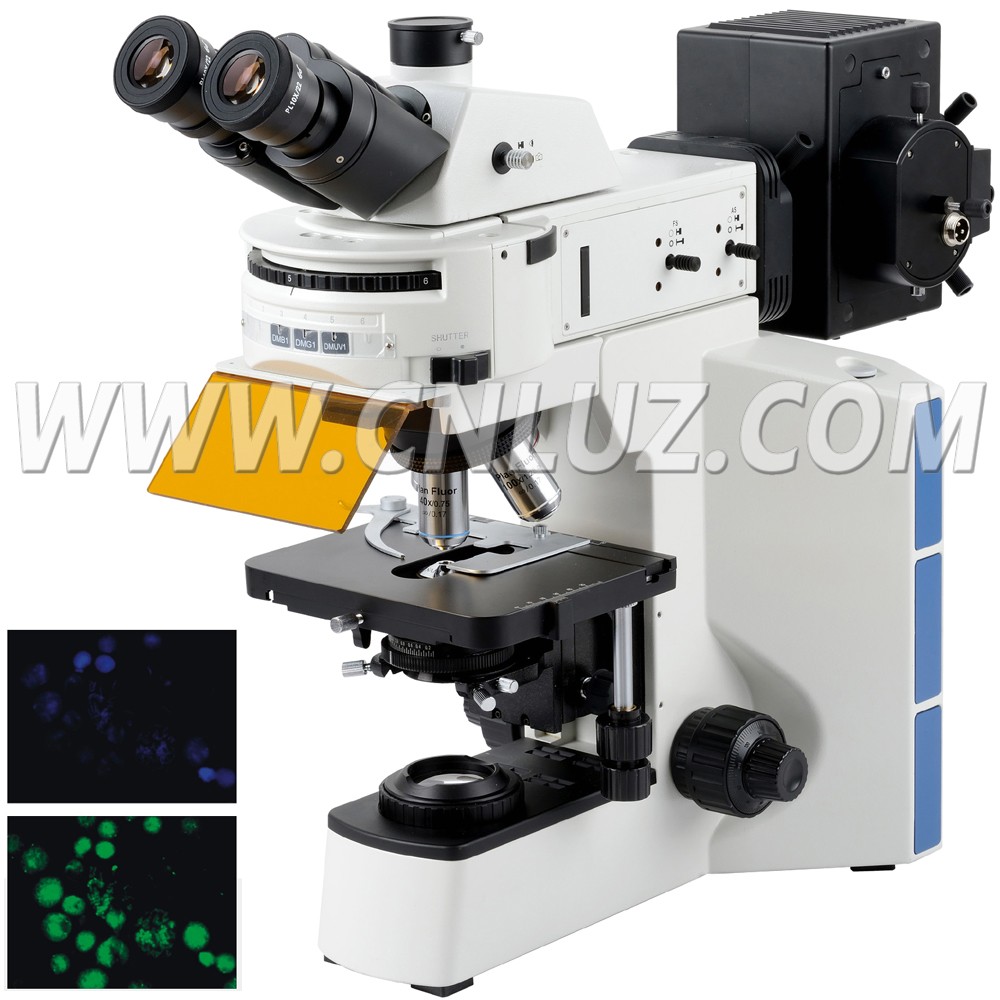

MFU.023078Trinocular Upright Fluorescent, 40X~1000X
  • /usr/575/images/Products/Y/57518574.jpg
  • /usr/575/Picture/Y/11481.jpg
  • /usr/575/Picture/Y/11482.jpg
  • /usr/575/Picture/Y/11483.jpg
  • Infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image under each magnification.
  • Fire-new ergonomic design, steady system structure, easy operation, is suitable for various working environments.
  • "Building blocks" design for combining multiple functions, fluorescence, phase contrast, polarizing, dark field attachments can be assembled on the basis of bright field observation.
  • Widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.
Optical system Infinity Color Corrected Optical System
Compensation Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Splitting Ratio R:T=100:0 or 0:100; Diopter +/-5 Adjustable.

High Eye-Point Wide Field Plan Eyepiece PL10x22mm, Reticle Can Be Assembled.

Infinity Plan Semi-Apochromatic Fluorescence Objectives 4x/0.13, WD=15.13mm
Infinity Plan Semi-Apochromatic Fluorescence Objectives 10x/0.3, WD=8.53mm
Infinity Plan Semi-Apochromatic Fluorescence Objectives 20x/0.5, WD=2.33mm
Infinity Plan Semi-Apochromatic Fluorescence Objectives 40x/0.75 (Spring), WD=0.55mm
Infinity Plan Semi-Apochromatic Fluorescence Objectives 100x /1.3(Spring, Oil ), WD=0.21mm
5 Holes Revolving Nosepiece, Inward
Coaxial Focus System With Upper Limited And Tension Adjustment; Coarse Range: 25mm; Fine Precision: 0.002mm; Focus Height Adjustable.
175x145mm Double Layer mechanical Stage, Rotatable; With Special Ffabrication Processing, Anti-corrosive And Anti-friction; X,Y Moving Hand Wheel Swithable to Right or Left Hand; Moving Range: 76x50mm, Precision : 0.1mm.
N.A.1.2/0.22 Swing-out Type Achromatic Condenser
Attenuation Plate, Transmission 25%
Blue Filter, Dia.45mm
Light Source 6V/30W Halogen, Pre-centered, Intensity Adjustable.

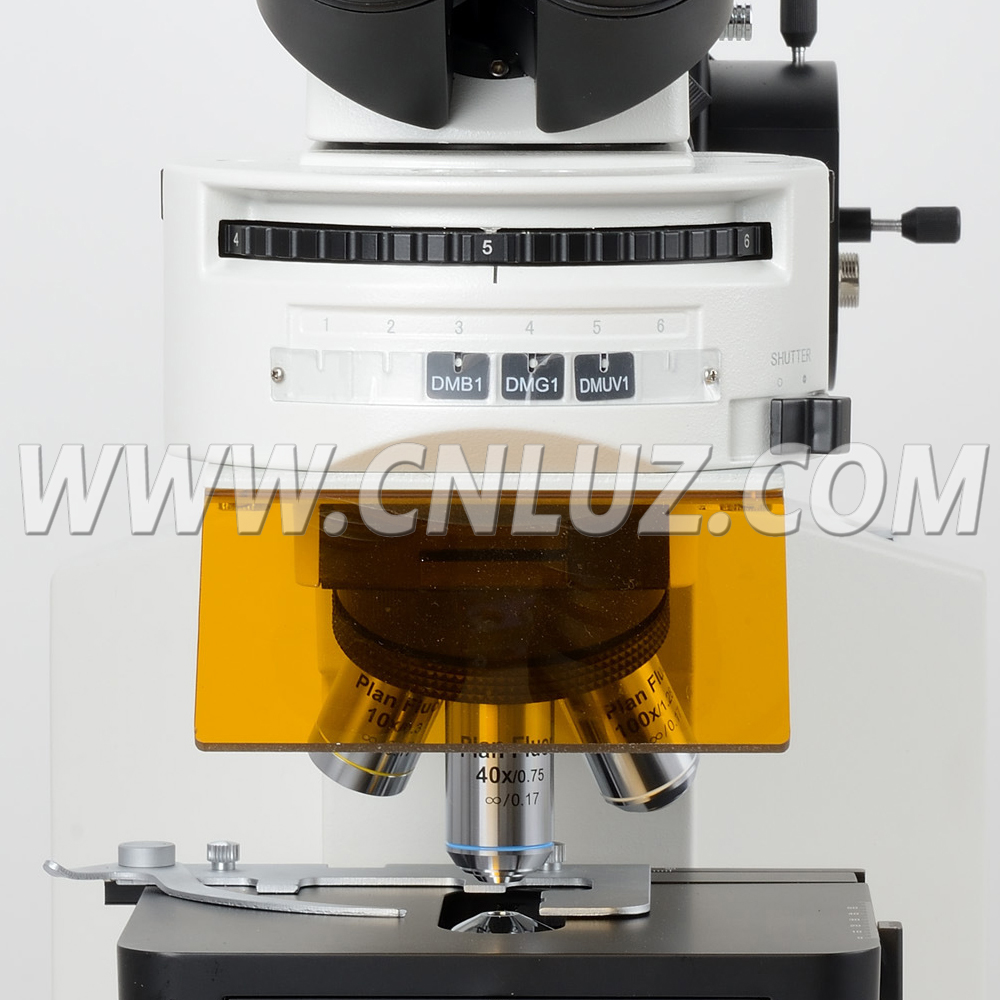

Reflected Fluorescence System
6-Holes Disc Reflected Fluorensent Illumination
Mercury Lamp House 100W/DC
Mercury Lamp Power 100V-240V AC With Indicator Display
Eye Protecting Board
HBO Ultra Hi-Voltage Spherical Mercury Lamp 100W/DC OSRAM
Fluorescence Filter System B
Fluorescence Filter System G
Fluorescence Filter System UV
Oil Immersion Oil 30ml, Fluorensent Free
Optional Accessories
CCD Camera
1.4M, 2/3" Cold CCD Camera, SONY 2/3" ICX285AQ Sensor, Refrigeration To -20°.
Standard Fluorensent Analysis Software.
Eyepiece High Eye-point PL10x/22mm with Micrometer, Diopter Adjustable
High Eye-point PL15x/16mm
Fluorescence Filter System V
Phase Contrast Attachement Infinity Plan Phase Contrast Objectives 10X,WD=4.70mm
Infinity Plan Phase Contrast Objectives 20X,WD=1.75mm
Infinity Plan Phase Contrast Objectives 40X,WD=0.72mm
Infinity Plan Phase Contrast Objectives 100X,WD=0.15mm
N.A.1.25 Five Holes Phase Contrast Condenser (Infinity)
Centering Telescope
Polarizing Attachment
Polarizer (Dia 45mm), Can Be Out Of Light Path.
Analyzer 360° Rrotatable,Can Be Out Of Light Path.
λ Slide
Rotatable Working Stage
Dark Field Condenser N.A.0.9 Dry
N.A.1.25 Immersion
Filter Yellow Filter, Dia.45mm
Green Filter, Dia.45mm
Netural Filter, Dia.45mm
Attenuation Plate, Transmission 25%
CCD Adapter 1x C-Mount, Focus Adjustable
0.50x, For 1/2” C-Mount, Focus Adjustable
0.67x, For 2/3” C-Mount, Focus Adjustable
Photo Adapter Photo Adapter With PK or MD Mount, Including 3.2X Photo Eyepiece
