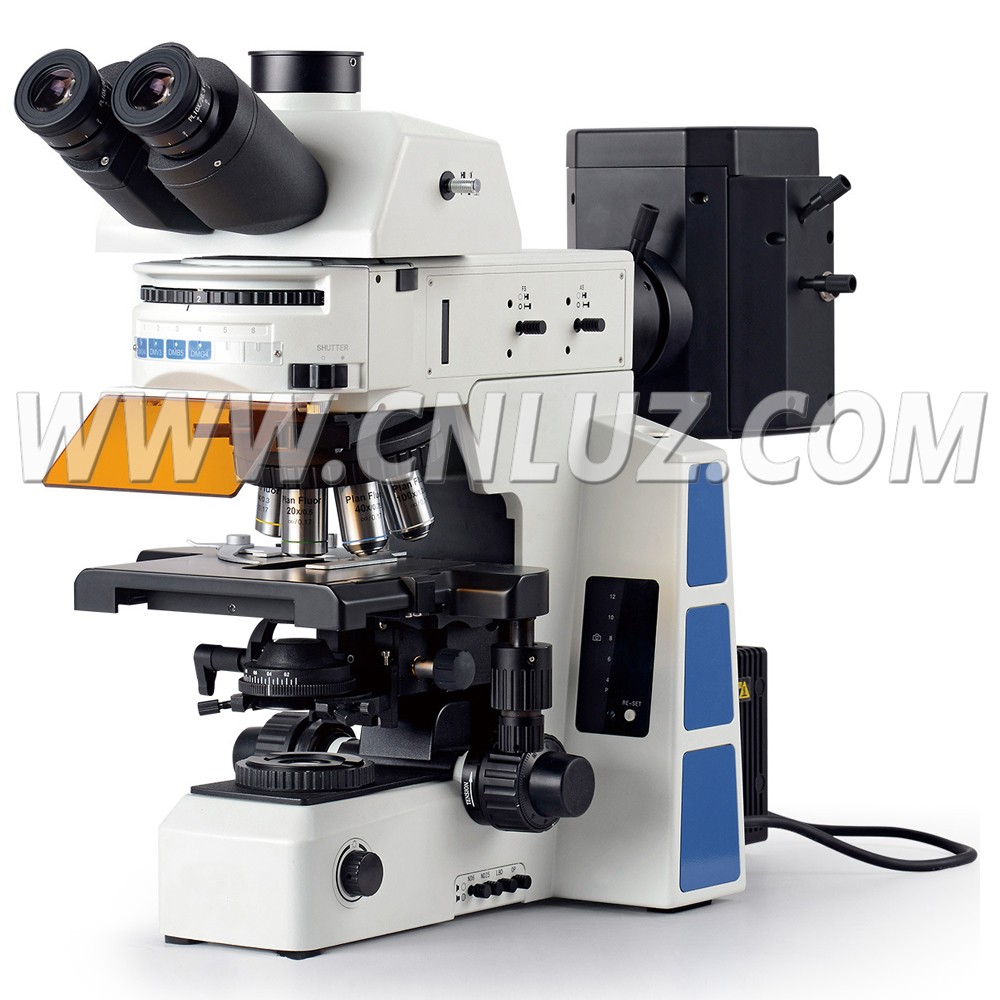

MFU.023079Trinocular Upright Fluorescent, 40~1000X
  • /usr/575/images/Products/Y/57518575.jpg
  • /usr/575/Picture/Y/11484.jpg
  • /usr/575/Picture/Y/11486.jpg
  • /usr/575/Picture/Y/11487.jpg
  • After years of research and development in optical technology field, MFU.023059 biological microscope is designed to present a safe, comfortable and efficiency observation experience for users. With perfectly performed structure, high-definition optical image and simple operating system, MFU.023059 realizes professional analysis, and meets all the needs of research in scientific, medical and other fields.
  • Large stage with adjustment in either hand In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.
  • The handle of the stage can be set at each side based on users’ preference. The X, Y biaxial adjustment are designed with low position for comfortable operation.
  • Two slices can be hold on the stage by using damping-type double clips, easy for comparative study. Moving range: 80mm X55mm; precision: 0.1mm Processed with special craft, the surface of the stage is anti-corrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.
  • Light barrier, which can effectively reduce the stray light, improves the image contrast in fluorescence observation.
  • Modular frame, improve the system compatibility MFU.023059 with modularization design, separated cross arm and main body, improves the system compatibility of biological and fluorescence frame.
  • Highly sensitive coaxial coarse and fine adjustment Coaxial adjustment adopts double-stage driving, with adjustable tension tightness and upper limit stop, coarse range is 25mm and fine precision is 1μm. Not only accurately focus but also precision measurement is available.
  • Viewing head with multi-splitting ratio MFU.023059 viewing head is designed of multiple options for splitting ratio. with wide beam imaging system, 26.5mm super wide filed of view is available.
  • Trinocular head with inverted image, splitting ratio Binocular: Trinocular=100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time.
  • Trinocular head with erect image, splitting ratio Binocular:Trinocular= 100:0 or 0:100. The moving direction of samples is as the same as observed.
Optical system Infinity Optical System, Semi-Aprochromatic
Head Trinocular Head, 30°inclined, Inverted Image,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0
High-Eyepoint Plan Eyepeiece PL10X/25mm,Diopter Adjustable
Infinity Plan Semi-Aprochromatic Fluorescent Objective 4x/0.13, W.D.=18.5mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 10x/0.3, W.D.=10.6mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 20x/0.5, W.D.=2.33mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 40x/0.75, W.D.=0.6mm
Infinity Plan Semi-Aprochromatic Fluorescent Objective 100x/1.3, W.D.=0.21mm
BF Sextuple Nosepiece, With Socket For DIC
Coaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range:25mm, Fine Adjustment Precision: 0.001mm.
Double Layer Mechanical Stage, 187*166mm, Moving Range 80*55mm,Precision 0.1mm,Double Direction Transmission, Left And Right Position Handle For Option. Tension Of The Torque Adjustable.
Swing-Out Achromatic Condenser, N.A.0.9
Attenuation Plate, Transmission 25%
Blue Filter, Dia.45mm
Light Source 12V100W Halogen Lamp, Center Adjusted,
Adopt Digital Dimming System, With LED Indicator, With The Fnction Of Light Set And Reset
Fluorescent System

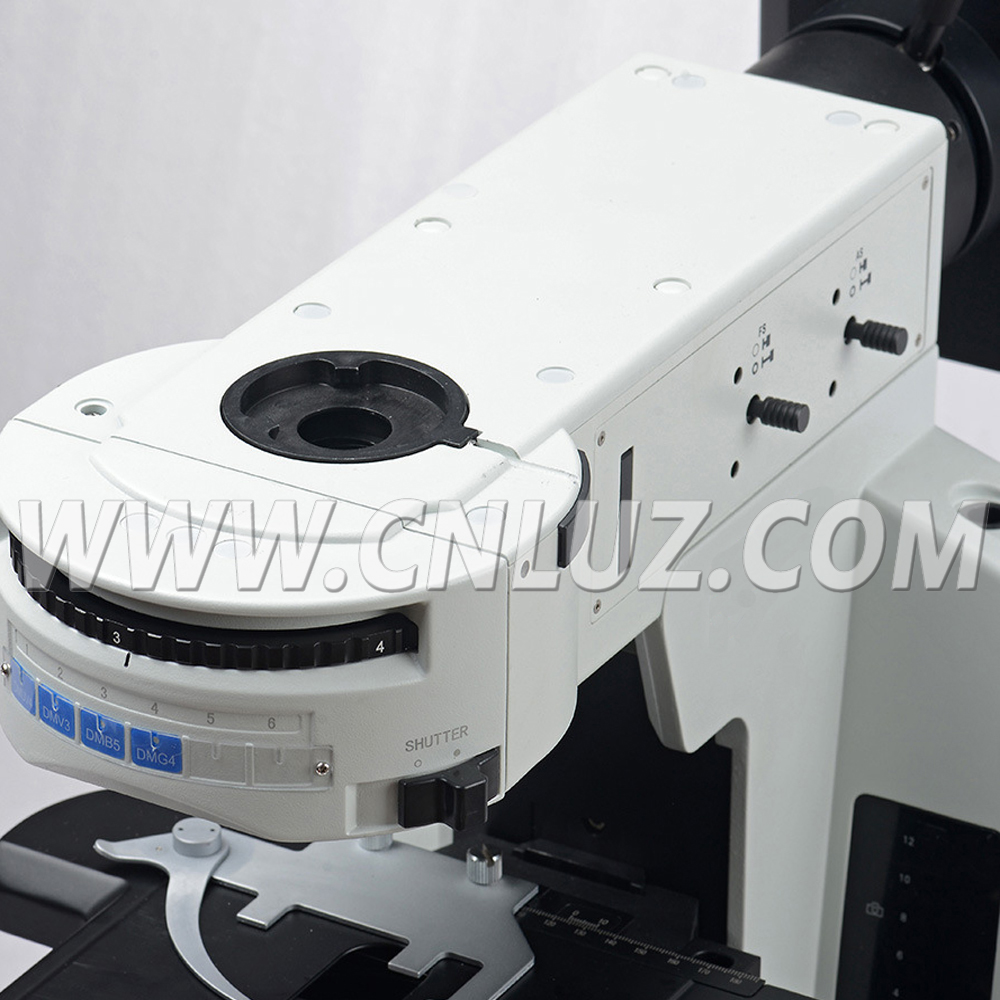

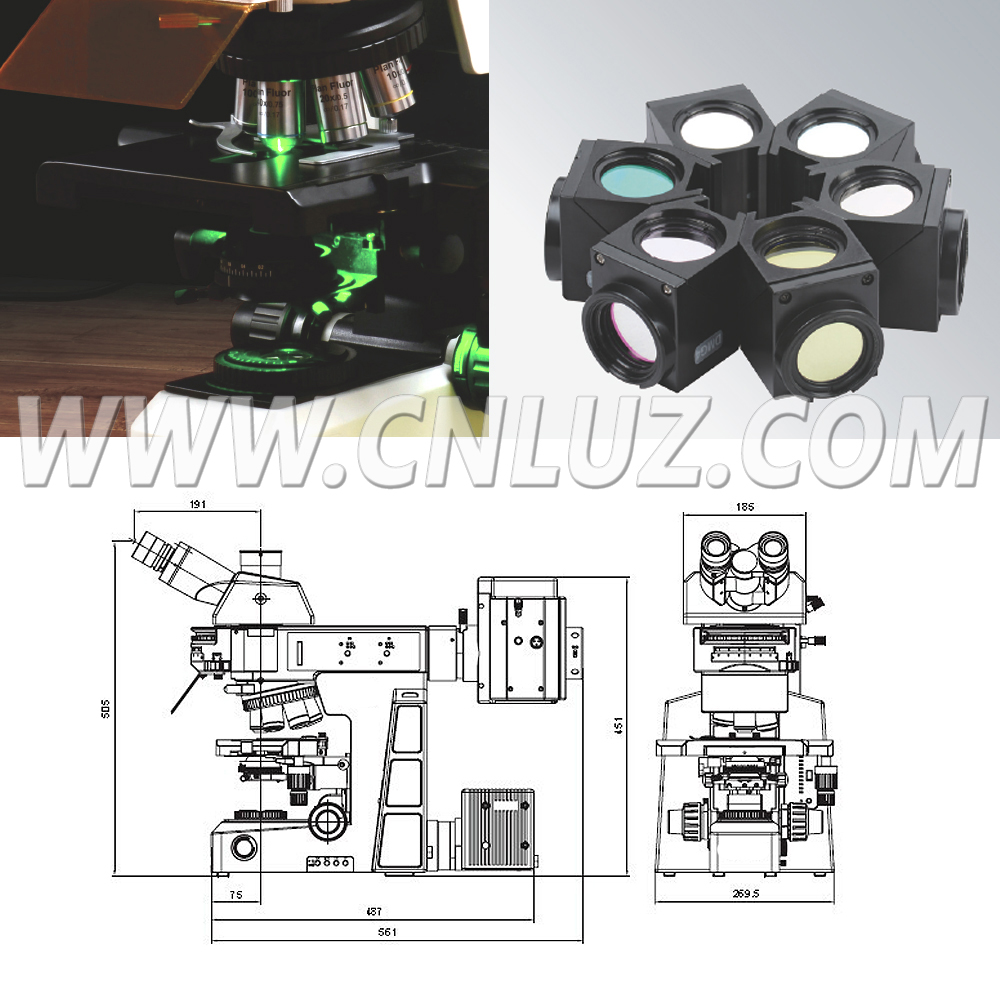

Six Position Disc Reflection Fluorescent Koehler Illumination, With IRIS Diaphragm And Aperture Diaphragm, All Center Adjustable. Socket For Filter Inserter And Polarizer Device, With The Fluorescent Llight Shield In The Front
100W mercury lamphouse
Digital power control box of mercury lamp,voltage 90-240V
Imported 100W DC mercury bulb(OSRAM)
Fluorescence Filter, B,G,UV
Attenuation Plate(Transmittance 50%)
Power 100-240V Built-in Wideband Voltage Transformer
Optional Accessories
Eyepiece High-eyepoint Plan eyepeiece PL10X/26.5mm,diopter adjustable
High-eyepoint Plan eyepeiece PL10X/25mm,diopter adjustable, with micrometer
Fluorescent System
Fluorescence Filter, V
Attenuation Plate(Transmittance 25%)
Trinocular Head, 30°inclined, Erect Image,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0
Nosepiece BF Septuple Nosepiece, With Socket For DIC
BF Quintuple Nosepiece, With Socket For DIC
CCD Adapter C-Mount 0.5x, Focusable
C-Mount 0.65x
