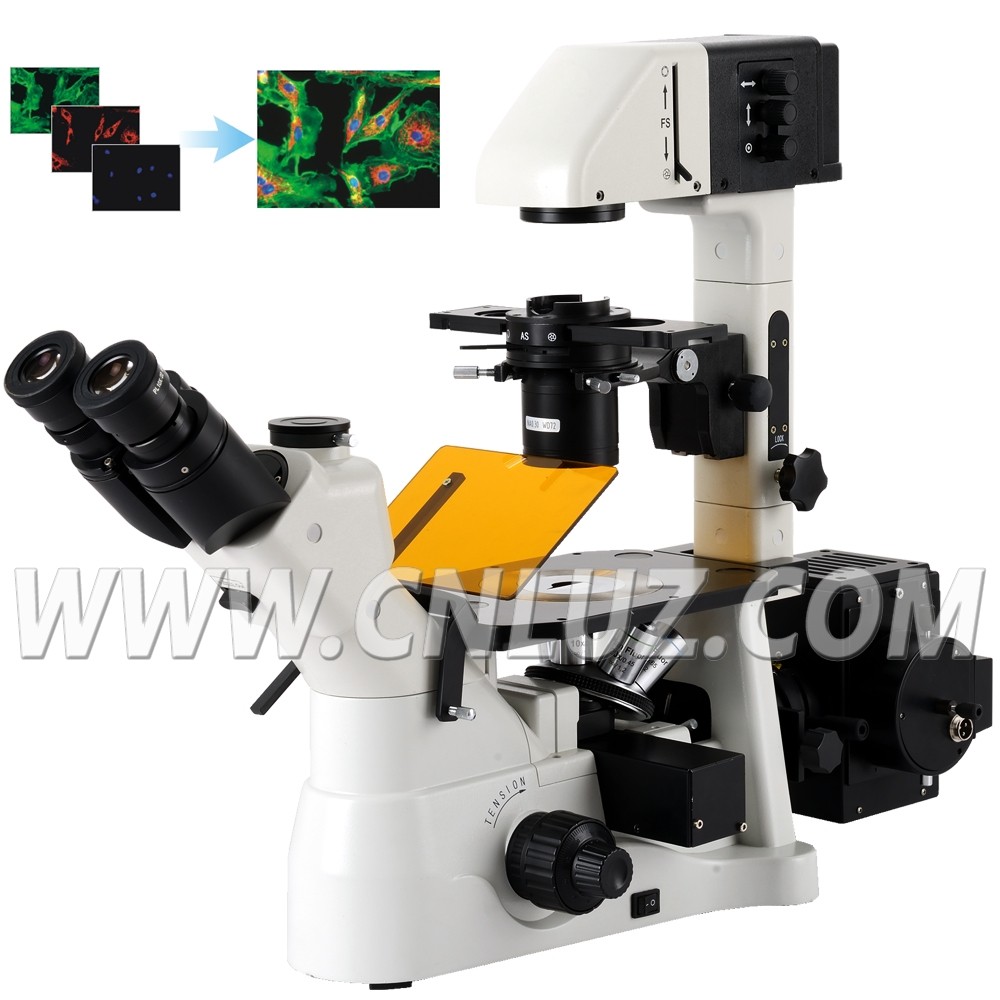

MFI.023003Inverted Fluorescent Microscope,Kohler
  • /usr/575/images/Products/Y/57517967.jpg
  • /usr/575/Picture/Y/10988.jpg
  • /usr/575/Picture/Y/10989.jpg
  • /usr/575/Picture/Y/10990.jpg

Laboratory Inverted Fluorescence Microscope realizes fluorescence observation of living cell,widely used in biology,industrial inspection,criminal justice etc.

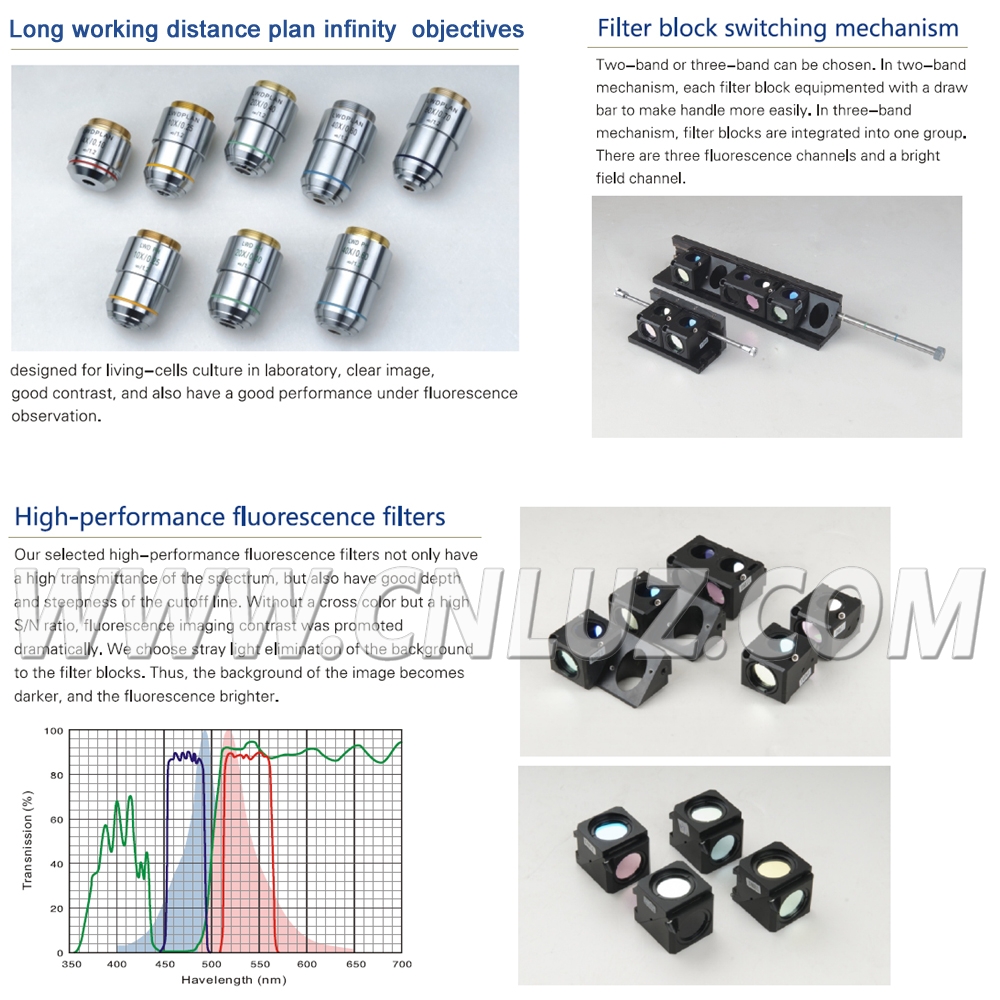

  • New generation of infinity color corrected optical system, professional plan semi-apochromatic fluorescence objectives, present you sharp and bright fluorescence image.
  • Professional fluorescence filter system, imported optical material and broadband multilayer coating, high transmissivity, mould proof, heat insulation and safety protection system, OSRAM brand mercury lam digital power supply control.
  • Swallow tail slide switch easy to change filter cubes, three paths for fluorescence and one for bright field, four filter cubes can be mounted.
  • 6V30W transmission illuminator, various performances, bright field, dark field, phase contrast, polarization observations.

Specification
MFI.023003
Optical System
Infinity Color Corrected Optical System
Head
Trinocular Head , Gemel Viewing Head, 45 Degree Inclined, Interpupilary Distance 54-75mm, Spliting Ratio 100:0 or 0:100
Eyepiece

PL10x/22mm, High Eyepoint, Wide Field

Objective
Long Working Distance Infinity Plan Achromatic Objectives
LWDPL10X/0.25, W.D.=7.94mm
LWDPL20X/0.40, W.D.=7.66mm
LWDPL40X/0.60, W.D.=3.71mm
Long Working Distance Infinity Plan Phase Contrast Objectives
LWDPH20X/0.40, W.D.=7.66mm
Nosepiece
Revolving Quintuple Nosepiece
Stage

Fixed Stage Size 250*160mm, Slider Clips
--Glass Plate
--Metal Plate
--Petri Dish Holder, Dia.35mm

Focusing
Coaxial Coarse & Fine Focusing System, Coarse Adjustment Range 9mm, Fine Adjustment Precision 0.002mm,with Tension Adjustment, with Safty Stop
Condenser
N.A.0.3 Kohler Illumination Condenser, with Phase Adjustable Slide Plate, Long Working Distance 72mm. The Whole Set Can Be Rotated Down
Phase Contrast

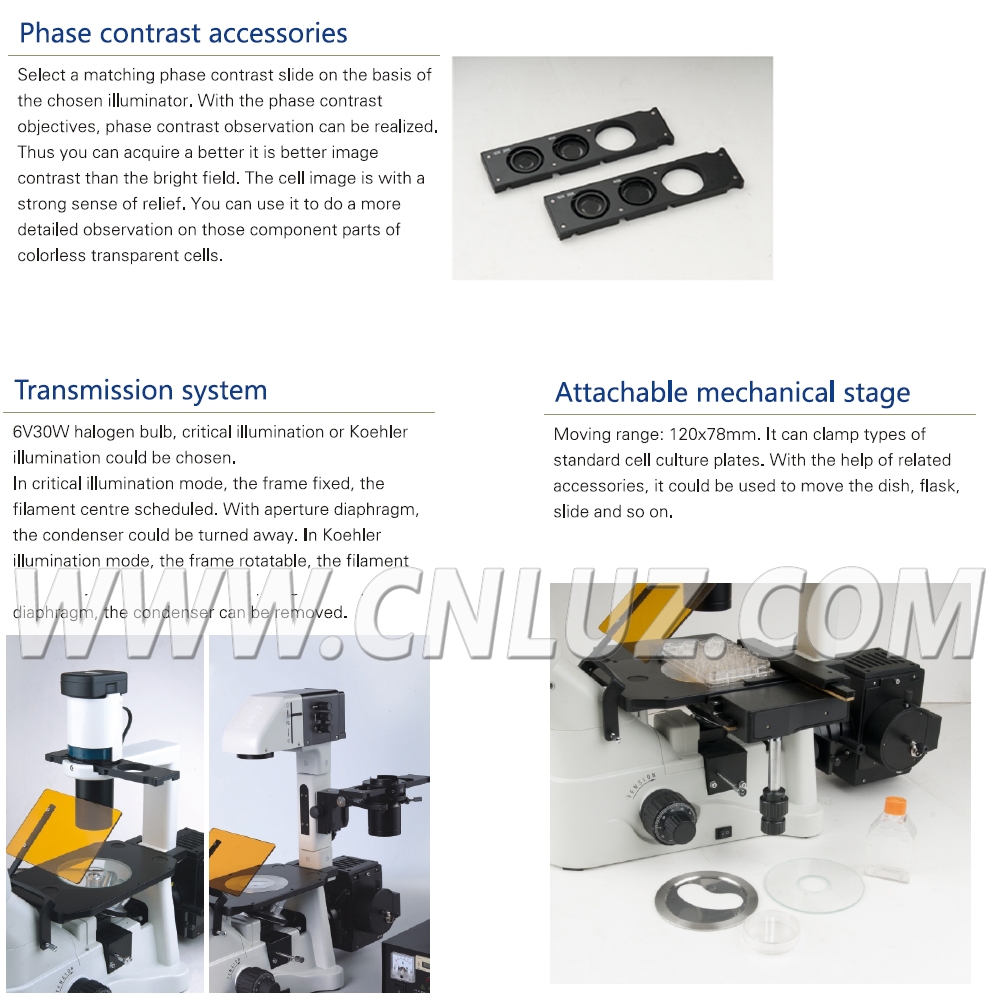

Phase Contrast Plug-board for 10x-40x, Center Adjustable
Centering Telescope Dia. 30mm
Filter
Dia.45mm Green Interference Filter
Dia.45mm Color Temperature Change Filter
Attenuation Plate, Transmission 25%
Reflected Fluorescence illumination System
Reflected Kohler Illumination with Iris Field Diaphragm, Centering Adjustable

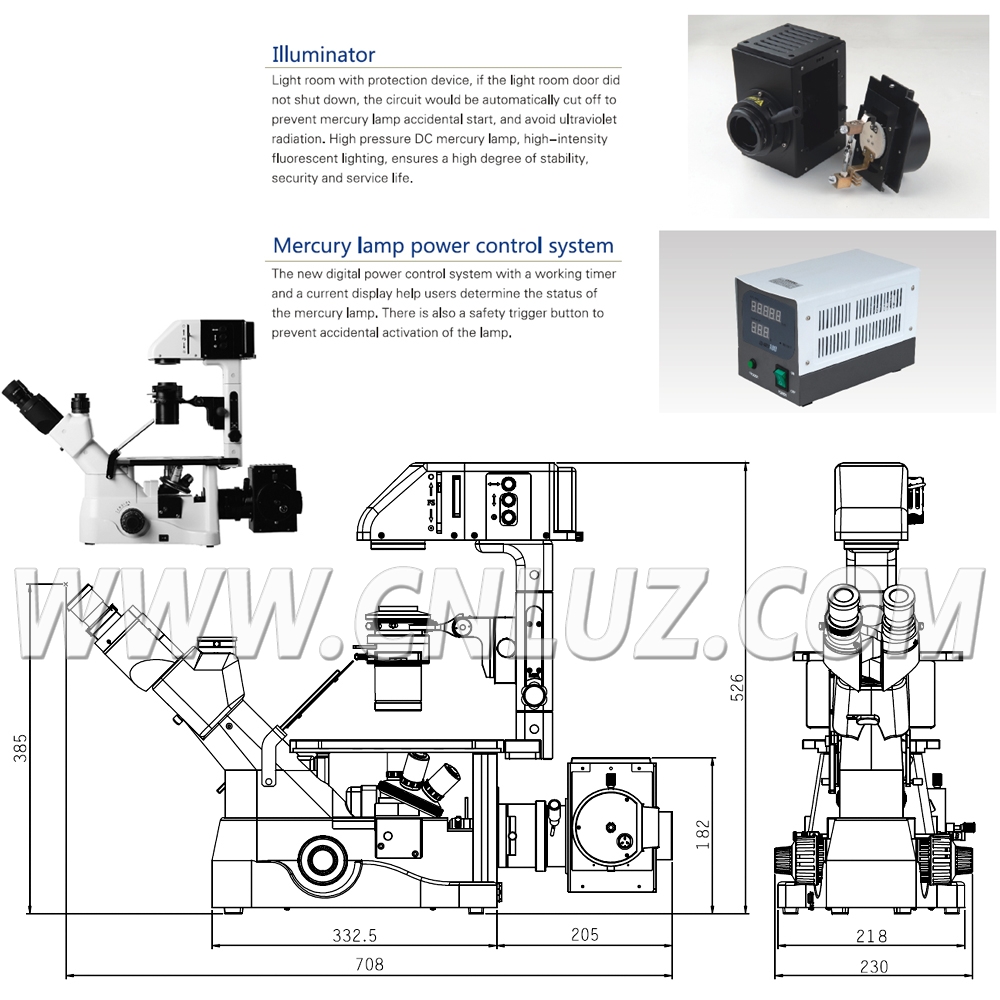

U-LH100HG Mercury Lamp House, Filament Center and Focal Distance Adjustable, with Mirror, Mirror Center and Focal Distance Adjustable
U1-RFLT100 Digital Power Control Box, Wide Voltage Range 90-240V AC
Imported OSRAM 100W DC Mercury Bulb
Centered Objective For Mecury Bulb
Band-pass Fluorescent Filter B, G
30ND25 Attenuation Plate
Light
Kohler Illumination, With Iris Aperture, Halogen 6V30W, Pre-centered, Intensity Adjustable
Power
Wide Voltage 90-240V
CCD Adapter
0.67x CCD Adapter, for 2/3" CCD Camera
