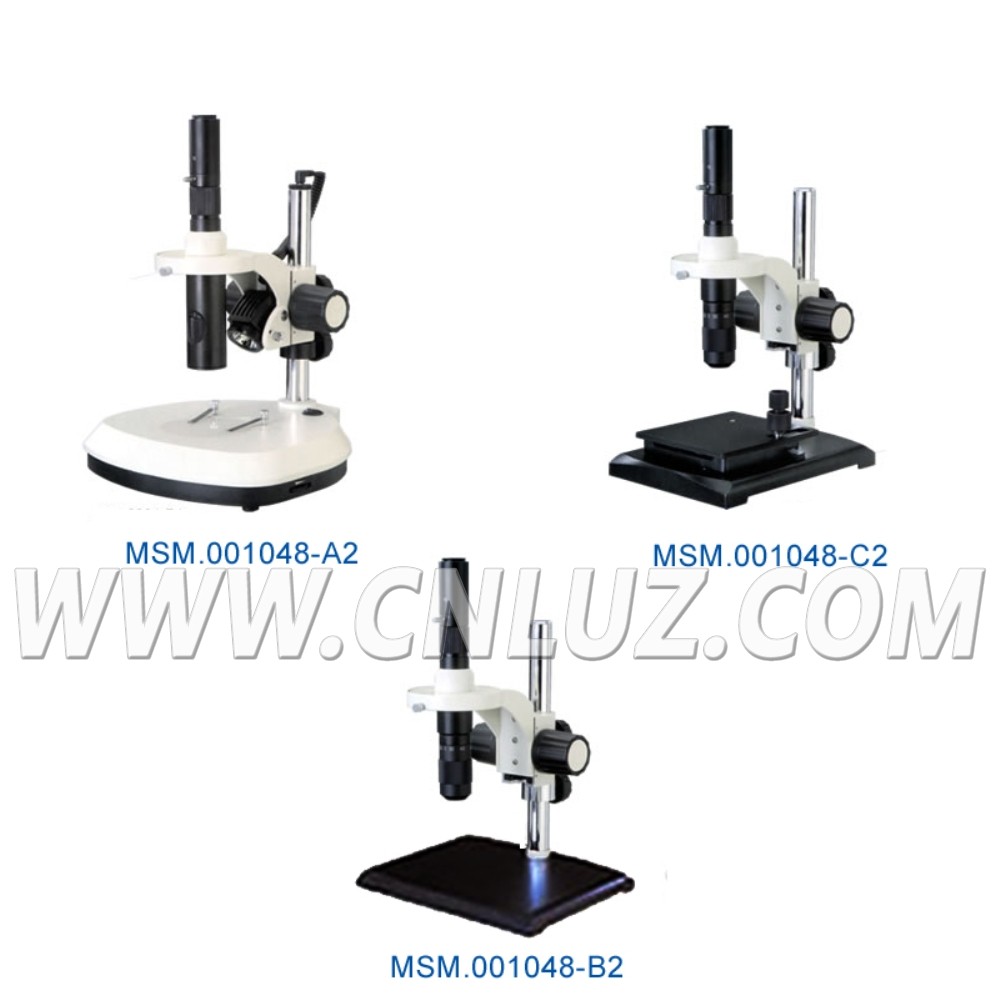

MSM.001048Monocular Stereo Microscope, 7X~45X
  • /usr/575/images/Products/Y/57517776.jpg
  • /usr/575/Picture/Y/10809.jpg
  • /usr/575/Picture/Y/10810.jpg
  • /usr/575/Picture/Y/10811.jpg

The series monocular zoom microscopes, have long working distance, clear and smooth image quality, convenience operation, it can be used for inspection of electro-industry product line and printed circuit board.

  • Objective range of zoom magnification 0.7X~4.5X.
  • Standard C mount design, connecting the camera directly.
  • Digital & video camera, CCD camera and photography eyepiece can be chosen.
  • Equipped with inside rotating optical body, annular LED illumination can be chosen.
Specification

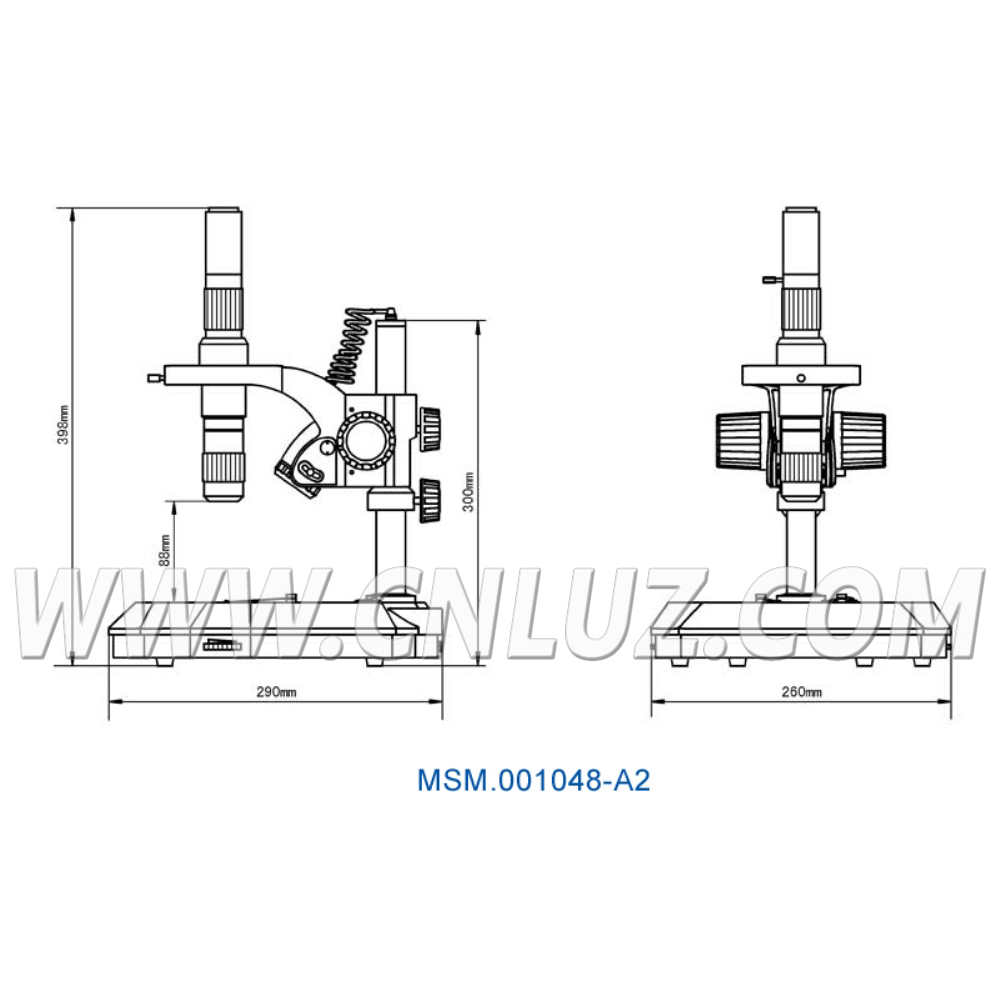

MSM.001048-A2

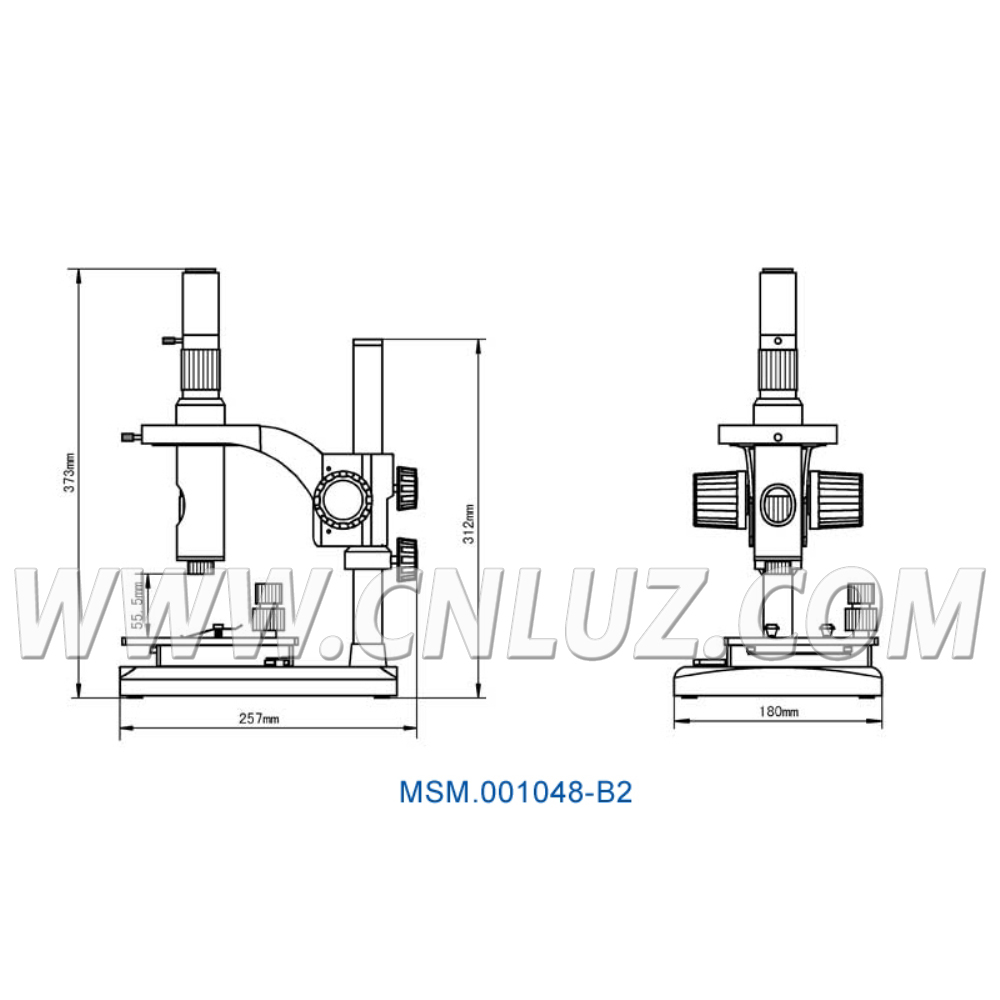

MSM.001048-B2

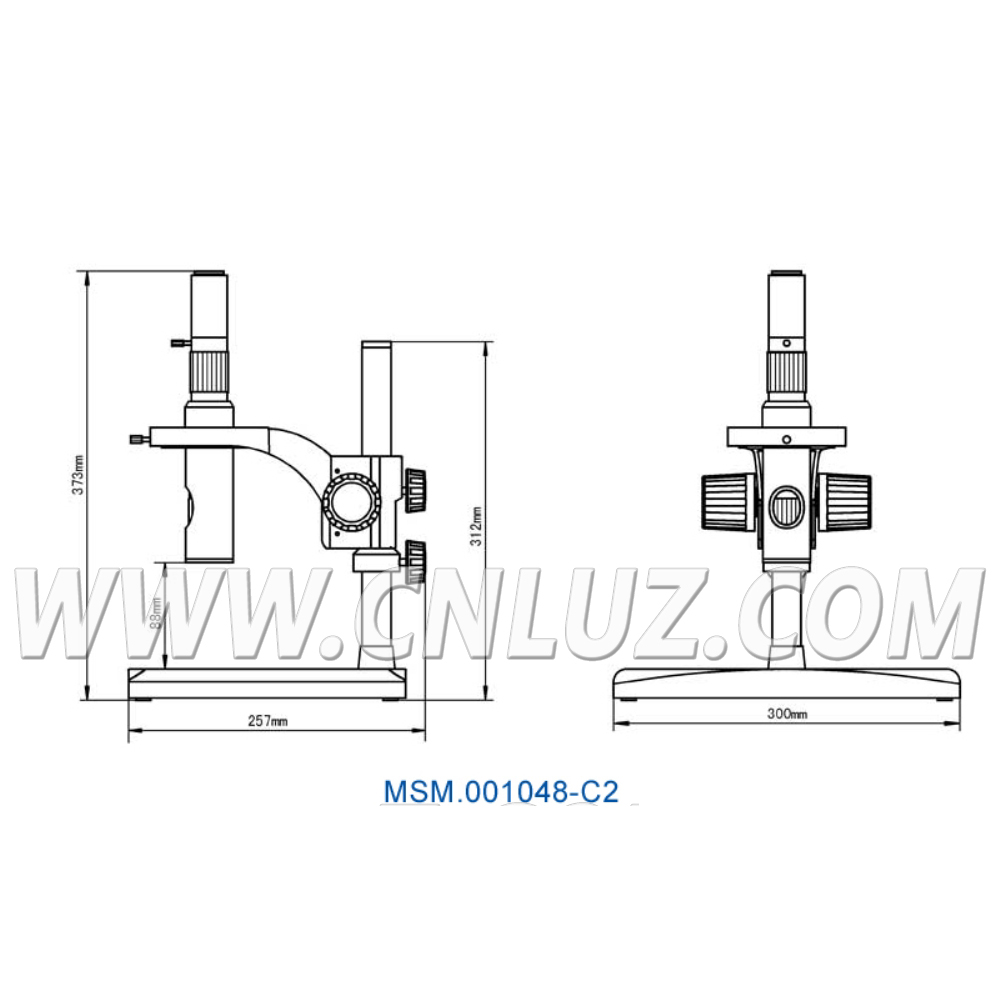

MSM.001048-C2
CCD Adapter
1X
Objectives
Objectives range of zoom magnification 0.7X~4.5X
Working Distance
88mm
Stand & Base
Base size 260x290x55mm, up/down move range 10mm<=h<215mm
Base size 300x240x25mm, up/down move range 10mm<=h<265mm
Base size 240x180x25mm, up/down move range 10mm<=h<240mm, stage move range 42x42mm
Illumination
      Equipped with inside rotating optical body, annular LED illumination can be chosen
Up:12V10W halogen lamp, reflector cup, brightness adjustable
Bottom:12V10W halogen lamp, brightness adjustable
No light source
No light source

Item
Optional Accessories
Eyepiece
Divisional wide field eyepiece 10X/18mm 0.1mm/Div
Divisional wide field eyepiece 10X/20mm 0.1mm/Div
Eyepiece Adapter
For divisional wide field eyepiece10X/20mm
Additional Objective




0.3x W.D.249mm
0.5x W.D.152mm
0.75x W.D.113mm
1.5x W.D.55.5mm
2.0x W.D.40.7mm
Illumination
8W/90~265V, annular LED illumination W.D. 35~200mm
CCD Adapter
0.35x
0.5
