MSM.001047Monocular Stereo Microscope, 7X~45X

The series monocular zoom microscopes, have long working distance, clear and smooth image quality, convenience operation, it can be used for inspection of electro-industry product line and printed circuit board.

Objective range of zoom magnification 0.7X~4.5X.
Standard C mount design, connecting the camera directly.
Digital & video camera, CCD camera and photography eyepiece can be chosen.
Equipped with outside rotating optical body.

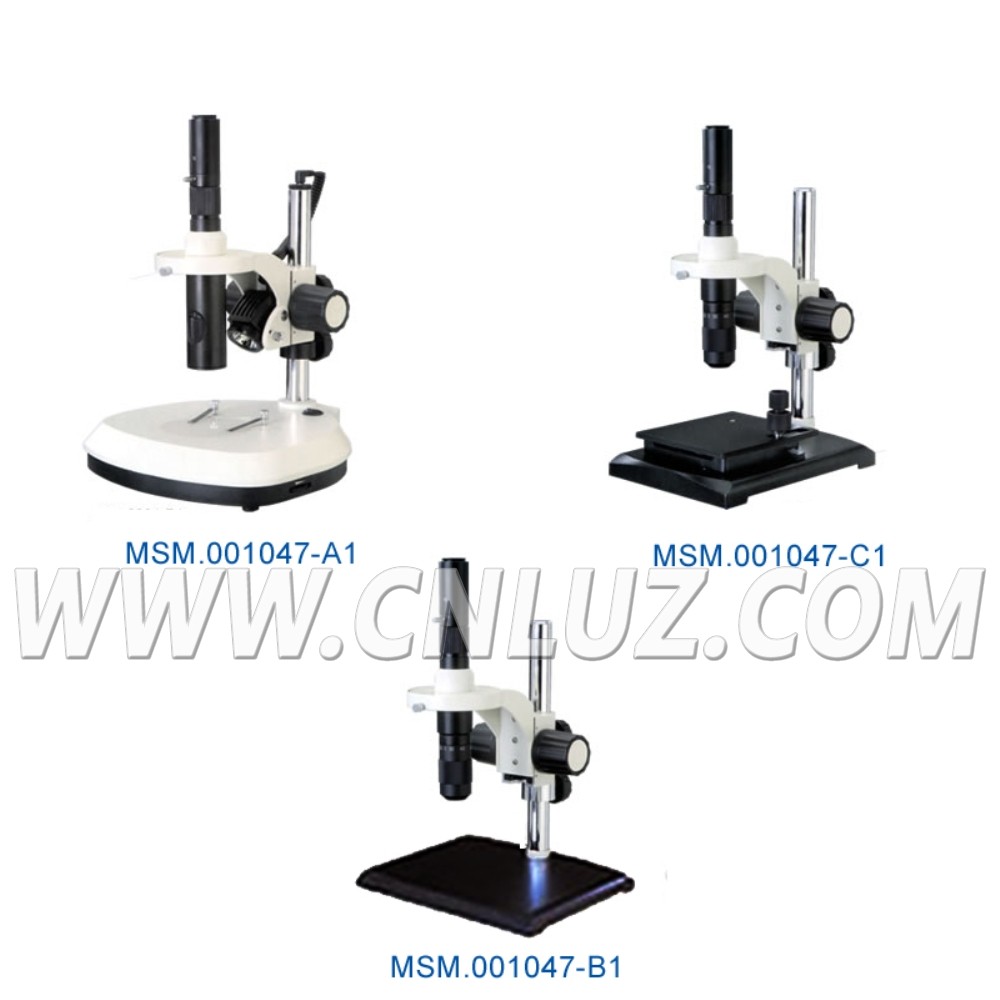

Specification	MSM.001047-A1	MSM.001047-B1	MSM.001047-C1
CCD Adapter	1X
Objectives	Objectives range of zoom magnification 0.7X~4.5X
Working Distance	88mm

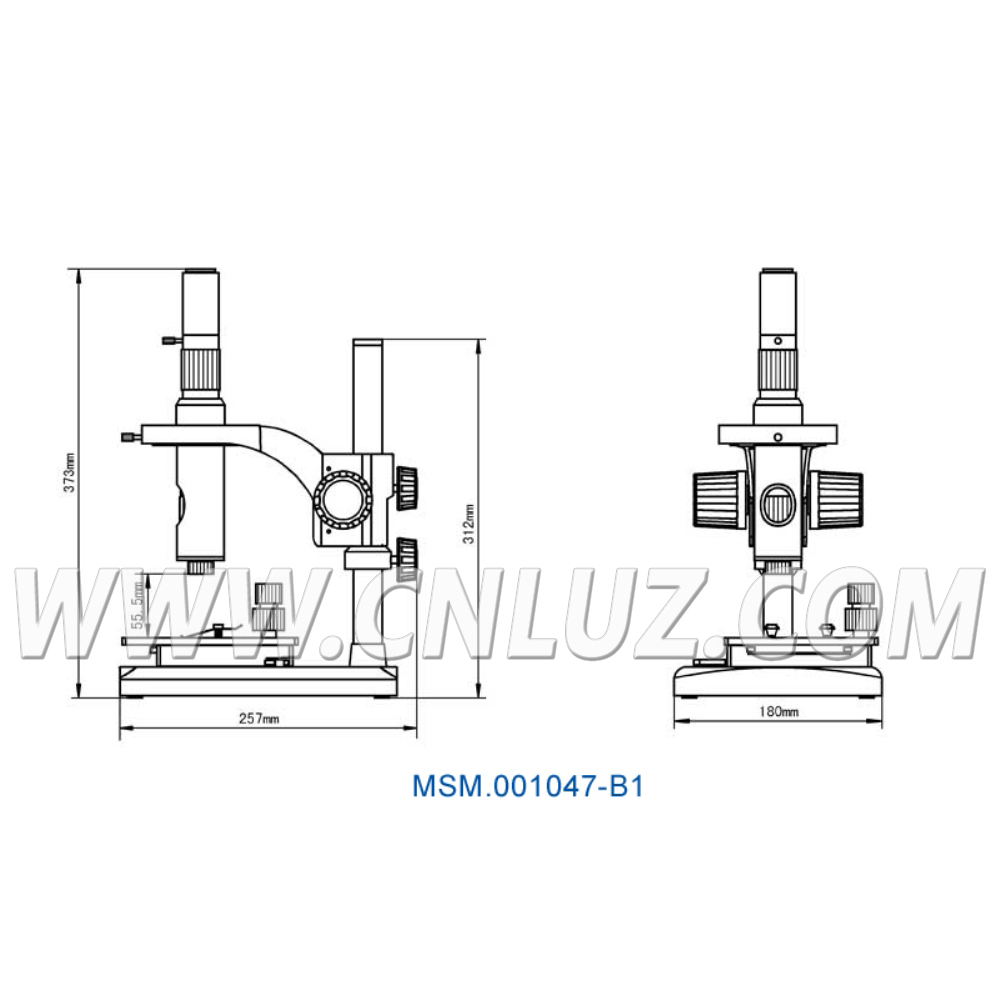

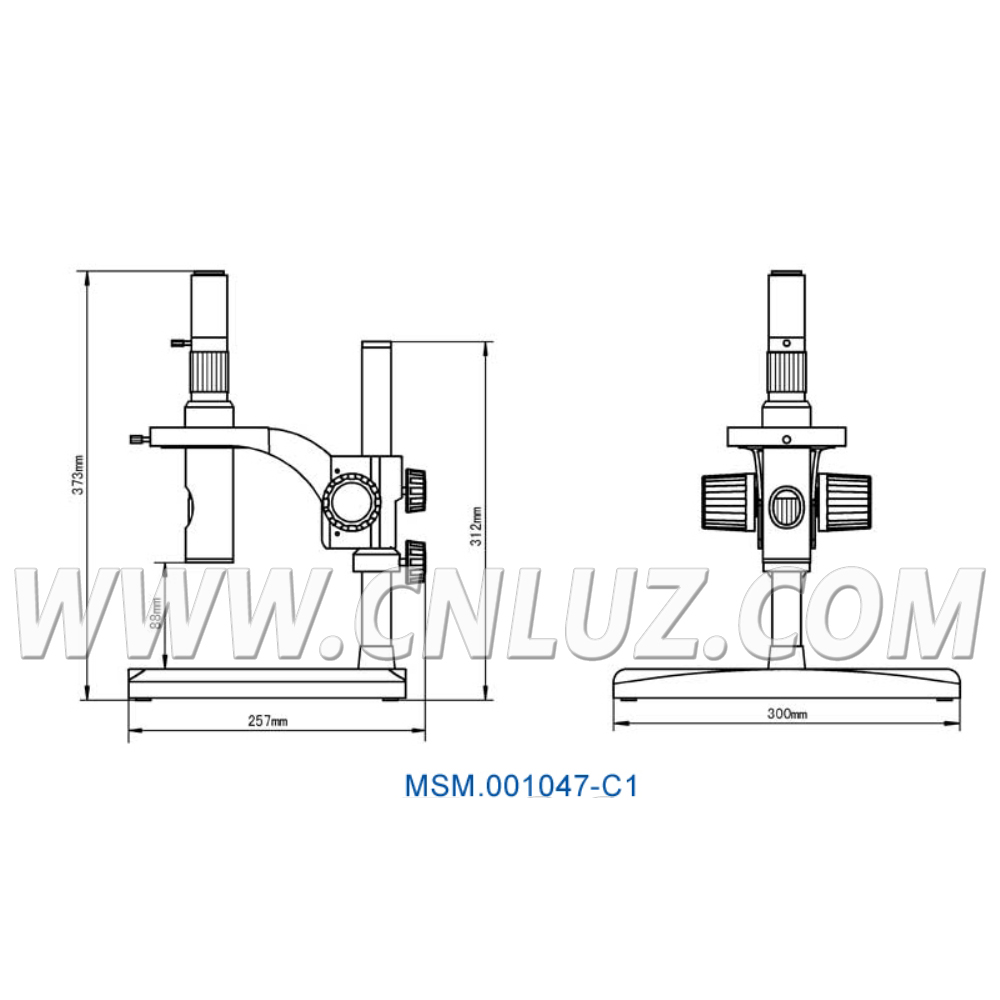

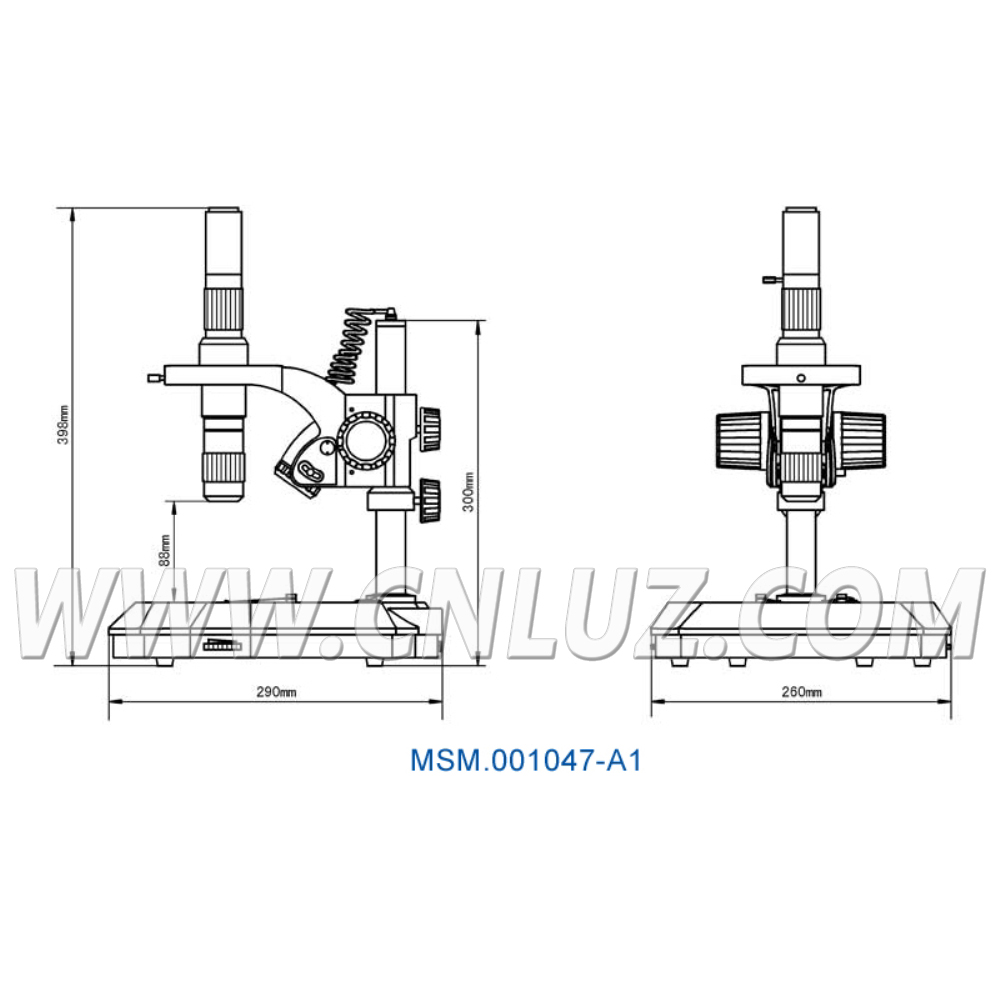

Stand & Base	Base size 260x290x55mm, up/down move range 10mm<=h<215mm	Base size 300x240x25mm, up/down move range 10mm<=h<265mm	Base size 240x180x25mm, up/down move range 10mm<=h<240mm, stage move range 42x42mm
Illumination	Up:12V10W halogen lamp, reflector cup, brightness adjustable Bottom:12V10W halogen lamp, brightness adjustable	No light source	No light source

Item	Optional Accessories
Eyepiece	Divisional wide field eyepiece 10X/18mm 0.1mm/Div
Eyepiece	Divisional wide field eyepiece 10X/20mm 0.1mm/Div
Eyepiece Adapter	For divisional wide field eyepiece10X/20mm
Additional Objective	0.3x W.D.249mm
	0.5x W.D.152mm
	0.75x W.D.113mm
	1.5x W.D.55.5mm
	2.0x W.D.40.7mm
Illumination	8W/90~265V, annular LED illumination W.D. 35~200mm
CCD Adapter	0.35x
CCD Adapter	0.5
