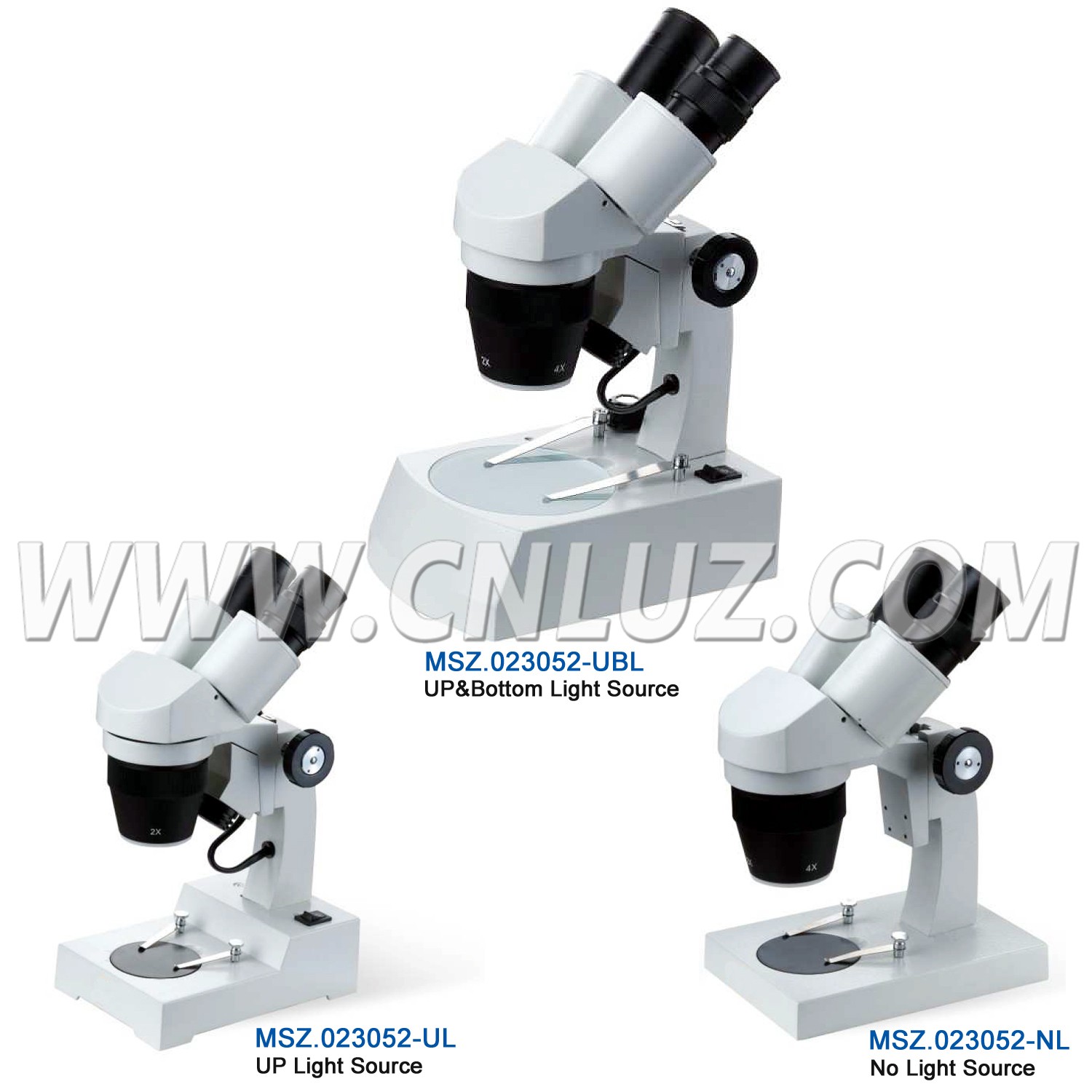

MSZ.023052-UL
|
MSZ.023052-UBL
|
| Standard Magnification |
20X / 40X |
| Max Magnification |
80X=(Turret objective 4X)+(Optional eyepiece-WF20X) |
|
Min Magnification
|
5X=(Optional objective 1X)+(Optional eyepiece-WF 5X)
|
|
|
45° Binocular head, 360° rotatable
|
|
Eyepiece
|
WF10X20mm
|
|
|
Turret objective 2X, Field of View20.00
|
|
Turret objective 4X, Field of View6.70
|
|
|
55~57mm
|
|
Stand
|
Arm stand
|
|
|
Dia 60mm black&white stage
|
Dia 60mm black&white stage
|
Dia 95mm glass stage
|
|
Bulb
|
No lamp
|
Incandescent lamp
|
Incandescent lamp
|
|
Illumination
|
No light
|
Incident light
|
incident and transmitted light
|
