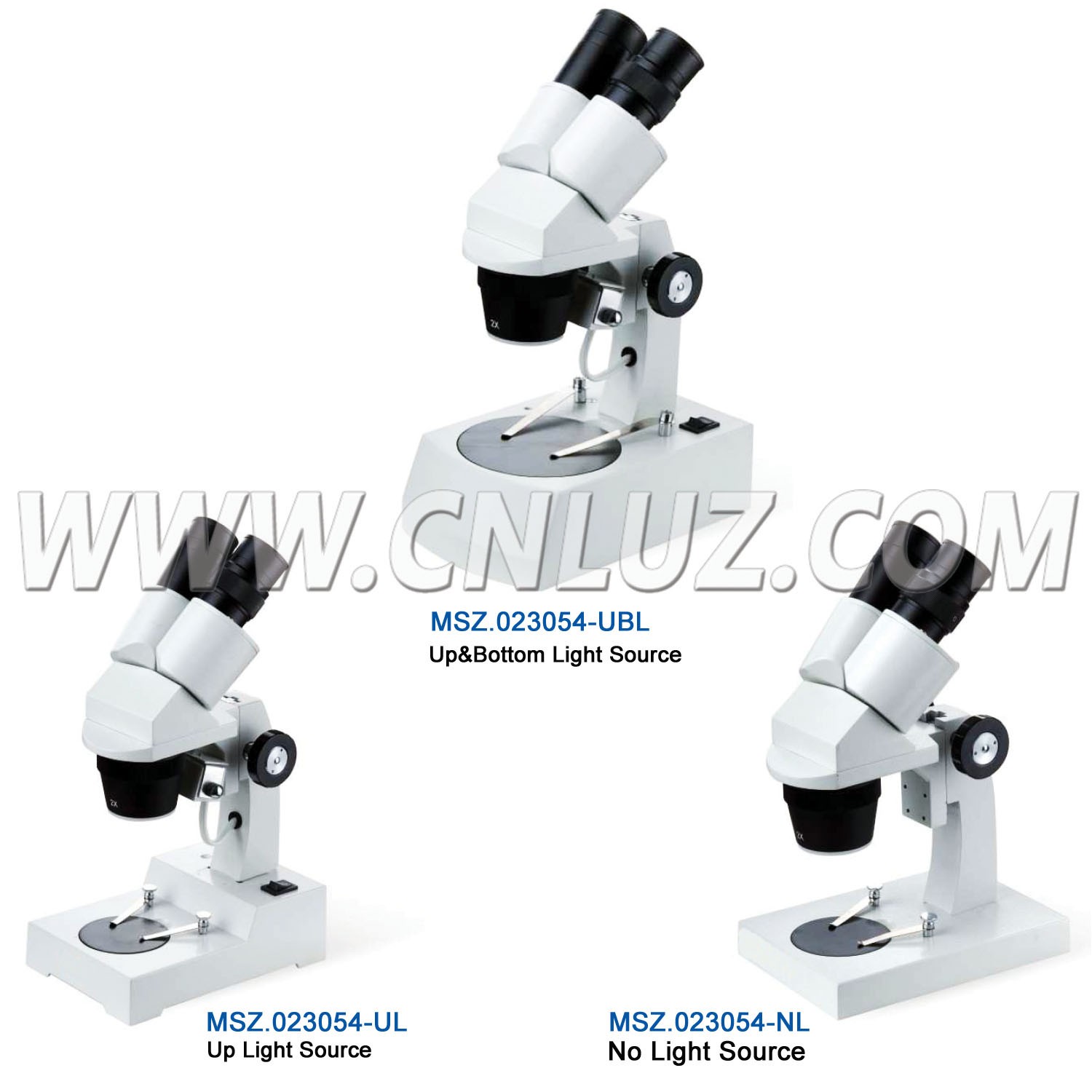

MSZ.023054Step Zoom Stereo Microscope, 5X~80X
  • /usr/575/images/Products/Y/57518162.jpg
  •
  •
  •
  • 45°inclined binocular head
  • Diopter adjustment of range ±5mm
  • The interpupillary distance adjustable between 55-57mm
  • Turret objective 2X/4X,1X/2X, 1X/3X for option
  • Arm stand

Specification
MSZ.023054-NL
MSZ.023054-UL
MSZ.023054-UBL
Standard Magnification 20X / 40X
Max Magnification 80X=(Turret objective 4X)+(Optional eyepiece-WF20X)
Min Magnification
5X=(Optional objective 1X)+(Optional eyepiece-WF 5X)
Head
45° Binocular head, 360° rotatable
Eyepiece
WF10X20mm
Objective
Turret objective 2X, Field of View20.00
Turret objective 4X, Field of View6.70
Working Distance
53mm
Stand
Arm stand
Stage
Dia 60mm black&white stage
Dia 60mm black&white stage
Dia 95mm glass stage
Bulb
No lamp
Incandescent lamp
Incandescent lamp
Illumination
No light
Incident light
incident and transmitted light

Item
Optional Accessories
Eyepiece
WF5x/18mm
WF15x/13mm
WF20x/10mm
Objective


1X/2X (Working Distance:53mm ), Field of View 20.00/10.00

1X/3X (Working Distance: 53mm ), Field of View 10.00/5.00
