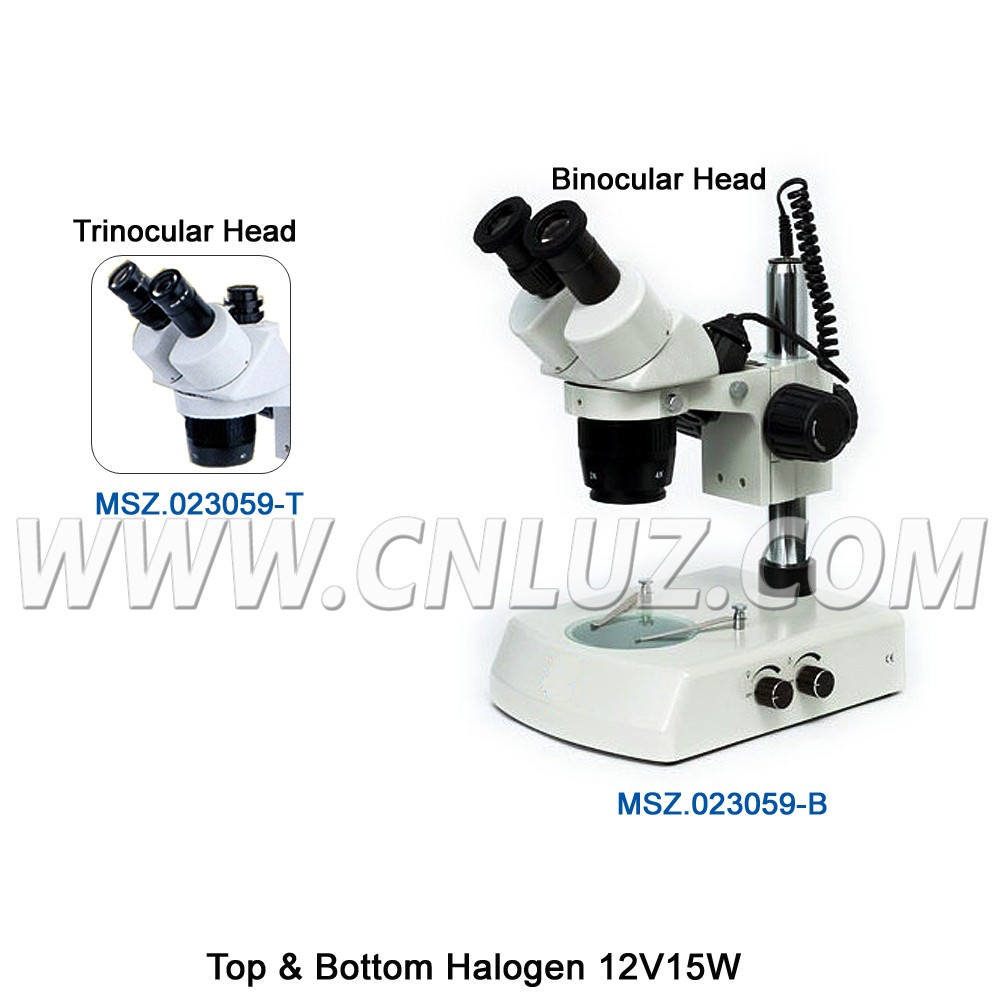

MSZ.023059Step Zoom Stereo Microscope,5X~160X
  • /usr/575/images/Products/Y/57518225.jpg
  •
  •
  •
  • Top & Bottom Halogen 12V15W.
  • Viewing Head 45。Inclined,each tube allows interpupillary distance and diopter adjustments to suit the user.
  • Ergonomic design and turret knobs for magnification change.
Specification
MSZ.023059-B
MSZ.023059-T
Standard Magnification 10X / 20X / 30X / 40X
Max Magnification 160X=(Turret objective 4X)+(Optional eyepiece-WF20X)+(Optional auxiliary Lens 2X)
Min Magnification
5X=(Turret objective 1X)+(Eyepiece-WF10X)+(Optional auxiliary Lens 0.5X)
Head
 45°Binocular head 45°Trinocular head
Eyepiece
Wide field, high-eyepoint eyepiece-WF10X20mm
Objective Turret objective 1x / 3x
Turret objective 2X / 4X
Inter-Pupillay Distance 55-75mm
Diopter Range 5mm
Working Distance 100mm
Illumination Top & Bottom Halogen 12V15W
Base
 SZMST2

Item
Optional Accessories
Eyepiece

 Wide field, high-eyepoint eyepiece-WF15X /15mm
Wide field, high-eyepoint eyepiece-WF20X /10mm
Auxiliary Lens 0.5X / 165mm
1.5X / 45mm
2X / 30mm
CCD Adapter

C-Mount, 0.35x, For 1/3" CCD
C-Mount, 0.50x, For 1/2" CCD
C-Mount, 1.0x
