MSZ.023060Step Zoom Stereo Microscope, 5X~160X, Fluorescent Light

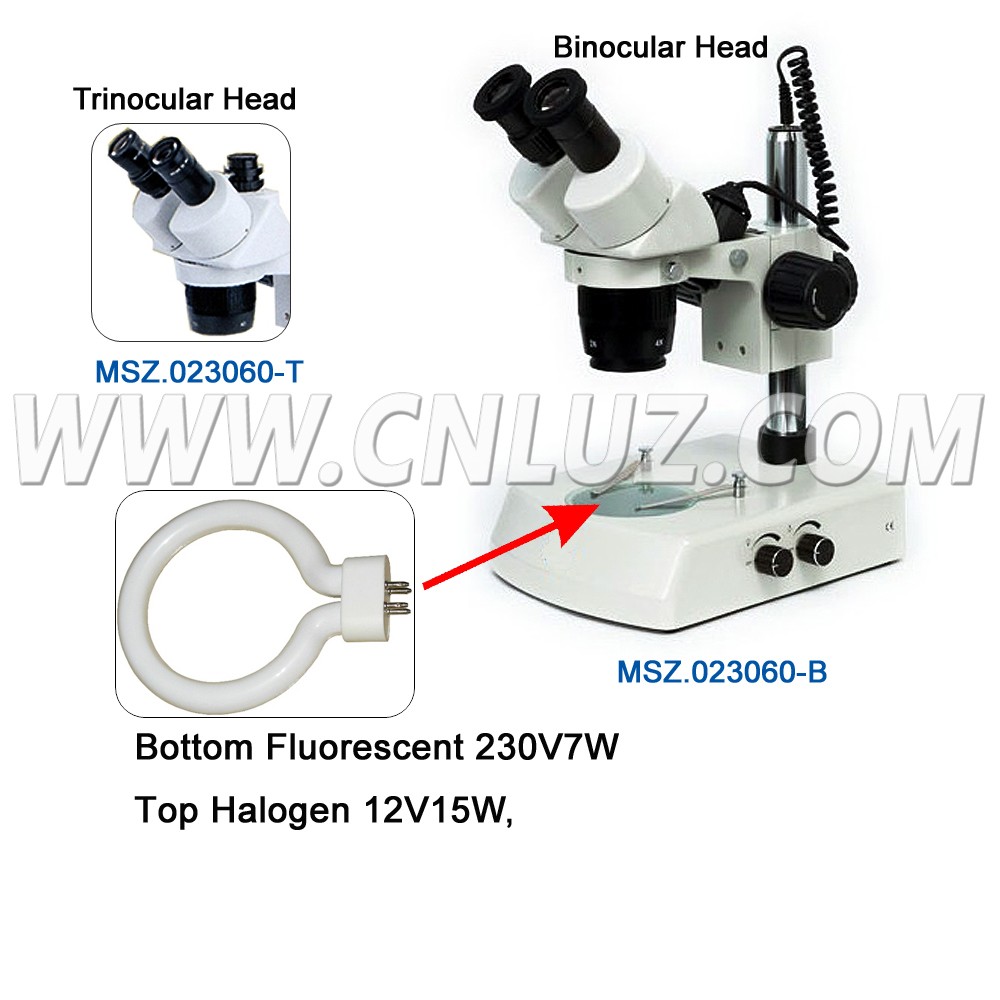

  • /usr/575/images/Products/Y/57518226.jpg
  •
  •
  •
  • Top Halogen 12V15W, Bottom Fluorescent 230V 7W.
  • Viewing Head 45。Inclined,each tube allows interpupillary distance and diopter adjustments to suit the user.
  • Ergonomic design and turret knobs for magnification change.
Specification
MSZ.023060-B
MSZ.023060-T
Standard Magnification 10X / 20X / 30X / 40X
Max Magnification 160X=(Turret objective 4X)+(Optional eyepiece-WF20X)+(Optional auxiliary Lens 2X)
Min Magnification
5X=(Turret objective 1X+(Eyepiece-WF10X)+(Optional auxiliary Lens 0.5X)
Head
 45°Binocular head 45°Trinocular head
Eyepiece
Wide field, high-eyepoint eyepiece-WF10X20mm
Objective Turret objective 1x / 3x
Turret objective 2X / 4X
Inter-Pupillay Distance 55-75mm
Diopter Range 5mm
Working Distance 100mm
Illumination Top Halogen 12V15W, Bottom Fluorescent 230V7W
Base
 SZMST3

Item
Optional Accessories
Eyepiece

 Wide field, high-eyepoint eyepiece-WF15X /15mm
Wide field, high-eyepoint eyepiece-WF20X /10mm
Auxiliary Lens 0.5X / 165mm
1.5X / 45mm
2X / 30mm
CCD Adapter

C-Mount, 0.35x, For 1/3" CCD
C-Mount, 0.50x, For 1/2" CCD
C-Mount, 1.0x
