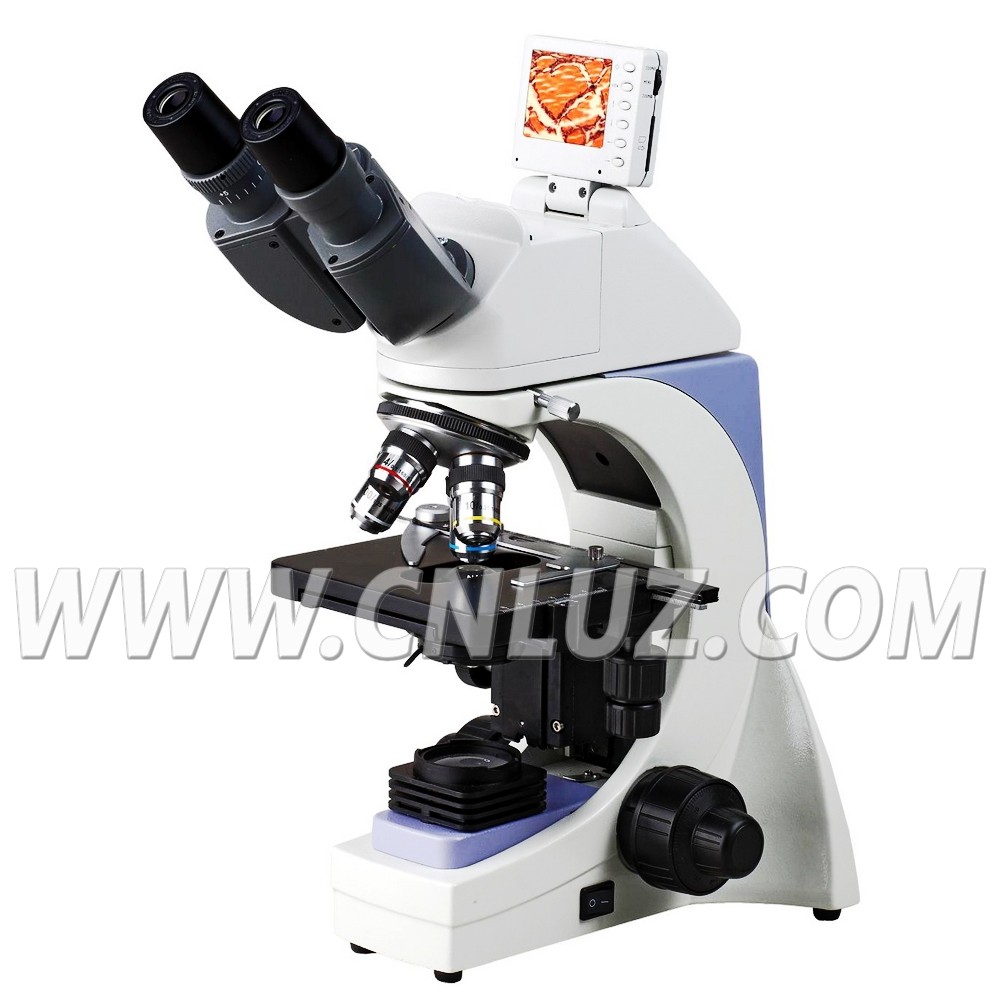

Biological LCD Microscope, 40X~1000X_IHPVISION:Microscope,Digital Vision

MLB.003009Biological LCD Microscope, 40X~1000X

Varity observation mode: Observe image on LCD screen and ocular at the same time; Support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time.
2.5” TFT LCD screen with 4×digital zooming, rotatable at maximum 100°elevation angle and 180°pivoting.
Built-in 3M pixel digital camera facilitates capturing images, video and audio with no messy wires or power cords.
Expandable to Max 1G Bytes SD Card slot for more storage capacity.
Support Windows 2000/XP/Vista/Win7 32 bit and equipped with powerful image processing software.
Integrated traditional optics and digital technology, widely used in teaching, medical, biological and scientific research field.

Specification		MLB.003009-C	MLB.003009-D
Head		Seidentopf Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm
Eyepiece		Wide Field Eyepiece WF10X/18
Objective		Semi-Plan Achromatic Objective 4X	Infinite Semi-Plan Achromatic Objective 4x
		Semi-Plan Achromatic Objective 10X	Infinite Semi-Plan Achromatic Objective 10x
		Semi-Plan Achromatic Objective 40X	Infinite Semi-Plan Achromatic Objective 40x
		Semi-Plan Achromatic Objective 100X	Infinite Semi-Plan Achromatic Objective 100x
Nosepiece		Outward-facing Quadruple nosepiece
Stage		Double Layers Mechanical Stage 140X140mm, movement :75X50mm
Condenser		N.A.1.25 Abbe Condenser with Iris Diaphragm and Filter
Focusing		Coaxial Coarse & Fine Focus Adjustment System, Range 24mm, Fine Division 2μm
LCD	Digital Head	Finity System digital head NLCD3	Infinite System digital head NLCD4
	LCD screen	2.5” Color TFT LCD display, 100°maximum elevation angle, pivoting LCD screen
	Output	USB, AV, S-Video and Audio are available
	Image sensor	Build-in 3.14Mega pixels CMOS Chip
	Resolution	Static Image 2048×1536, Video 320×240
	Memory	32MB Build-in Memory and Expandable to Max 1GB SD Card
	System	Windows 2000, XP, and Vista
	Software	ScopeImage Advanced
Illumination		6V20W halogen lamp, brightness adjustable

Item	Optional Accessories
Eyepiece	Wide Field Eyepiece EWF10X/20
Objective	Plan Achromatic Objective 4X
	Plan Achromatic Objective 10X
	Plan Achromatic Objective 40X
	Plan Achromatic Objective 100X
	Infinity Plan Achromatic Objective 4X
	Infinity Plan Achromatic Objective 10X
	Infinity Plan Achromatic Objective 40X
	Infinity Plan Achromatic Objective 100X
Digital System	SD Interface: Support high-capacity SD card, upt 3GB
