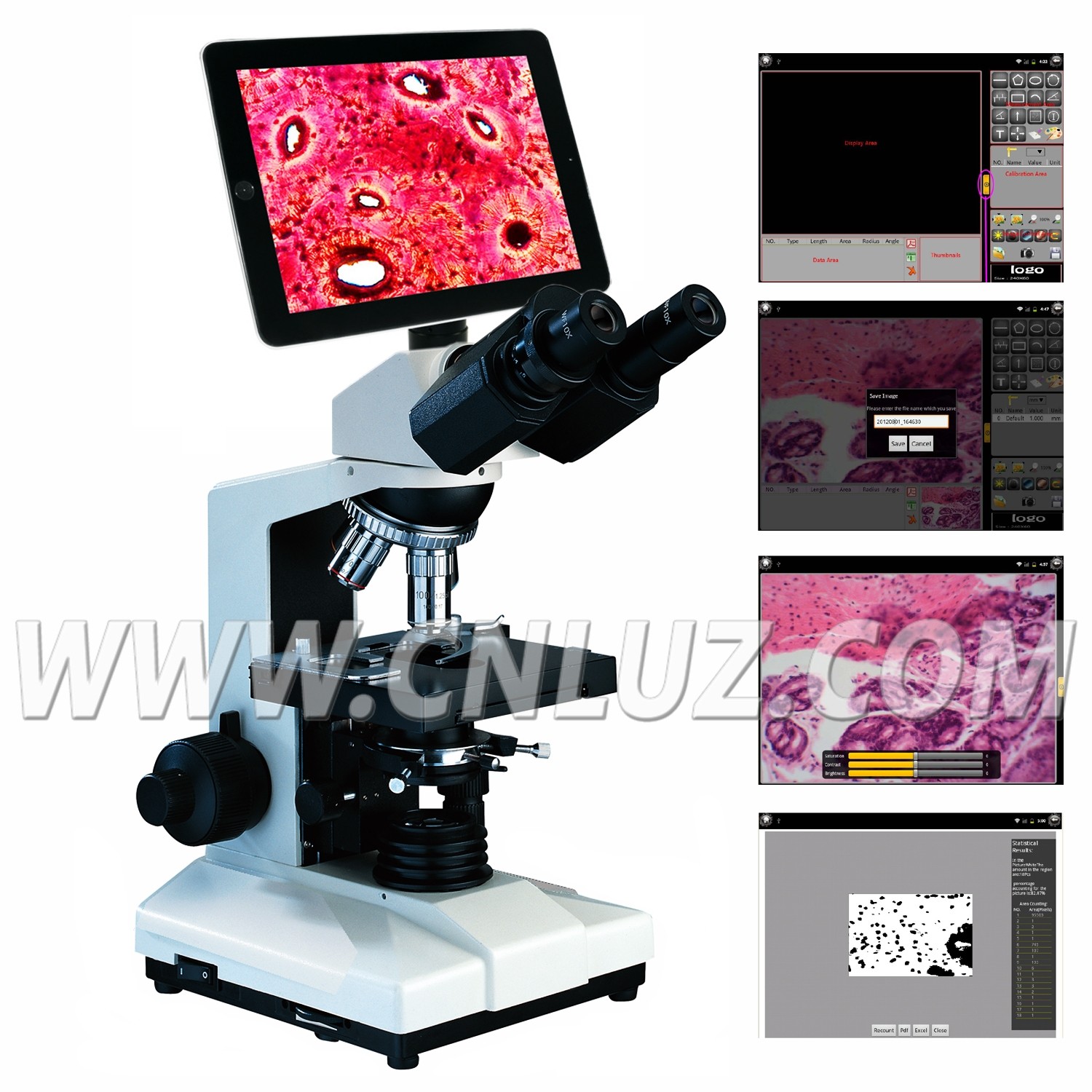

This microscope with 9.7" LCD is very suitable for usage in medical test,teaching and microobservation in hospitals and schools.
|
Specification
|
MLB.001064
|
|
Display
|
9.7" 2nd Generation HD LED Backlit LCD Screen (1024*768) ,G-sensor, Multi-point Capacitance Touch Screen |
| Digital Camera | 5.0 M Pixels, 1/2.5 " CMOS Sensor,Full Resolution 2592*1936 |
|
Eyepiece
|
WF10X(Φ18mm)
|
|
Head
|
Compensation binocular head inclination 30°
|
|
Objective
|
Achromatic 4X/0.10
|
|
Achromatic 10X/0.25
|
|
|
Achromatic 40X/0.65(Spring)
|
|
|
Achromatic 100X/1.25(Spring, oil)
|
|
|
Focusl System
|
Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um |
|
Nosepiece
|
Quadruple backward ball bearing inner locating
|
|
Stage
|
Double layer mechanical, size 135x125mm, moving range 75x35mm
|
|
Condenser
|
Abbe N.A.1.25 Rack & pinion adjustment
|
|
Filter
|
Blue filter
|
|
Frosted filter
|
|
|
Collector
|
For halogen lamp
|
|
Light source
|
6V 20W halogen lamp with brightness control
|
