| Specification |

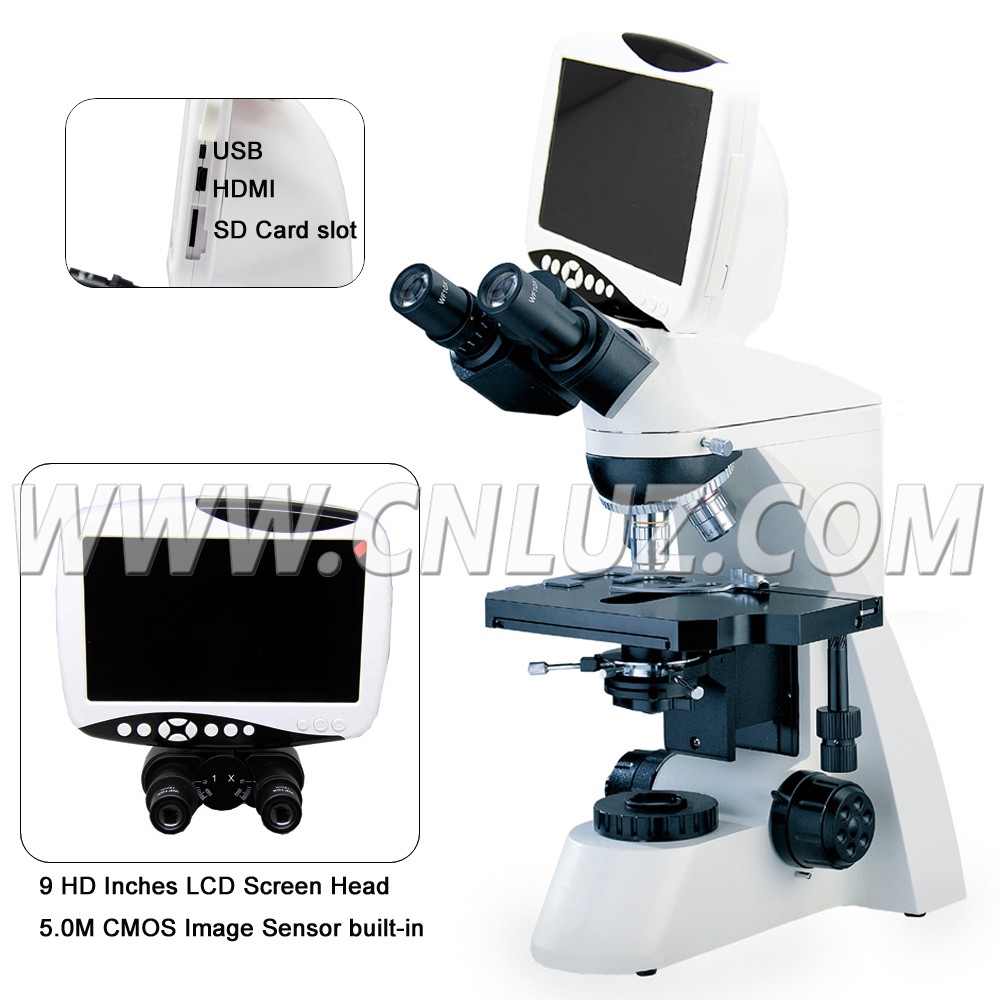

MLB.001066
|
|
Optical System
|
|
Binocular head, Inclined 30°, Interpupillary distance 55-75mm
|
|
Eyepiece
|
Wide Field Eyepiece WF10X/18
|
|
|
Infinity Plan Achromatic 4X/0.1
|
|
Infinity Plan Achromatic 10X/0.25
|
|
Infinity Plan Achromatic 40X/0.65(Spring)
|
|
Infinity Plan Achromatic 100X/1.25(Spring,Oil)
|
|
|
Quadruple nosepiece, backward
|
|
Focusing
|
Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um
With tensional adjustable and up stop,
|
|
|
Double layer mechanical, size 210x140mm, moving range 75x50mm
|
|
Condenser
|
Abbe N.A.1.25 Rack & pinion adjustment
|
| Collector |
Halogen Illumination(Compose with Field Diaphragm) |
|
Illumination
|
6V20W Halogen Lamp, Brightness Adjustable
|
|
Digital System
|
LCD Screen |
9 HD Inches, Resolution is 1280*800 |
| Image Sensor |
5.0 Mega,CMOS,1/2.5 Inches |
| Photo Resolution |
2560X1920 / 1600X1200 |
| Video Resolution |
1080*720 |
| Digital Magnification |
8× |
| Video Output |
AV Output (NTSC/PAL) |
| Data Output |
HDMI & USB |
| Scene Mode |
Standard / Softness / Vivid |
| Date Mode |
Year, Month, Day, Hour, Minute |
| Color Mode |
Color/Black& white/Negative |
| External Interface |
PC/Projector/Monitor |
| Storage |
SD Card Slot with Memory Cards (Optional, Maximam 4G) |
| Exposure Mode |
Manual/Auto |
| White Balance |
Manual/Auto |
| Measurement |
Crosshair |
| Language |
Chinese / English Menu |
| Positioning |
Crosshair/ Arrow pointer |
| Coordinate Colors |
Black/White/Red/Blue/Green |
