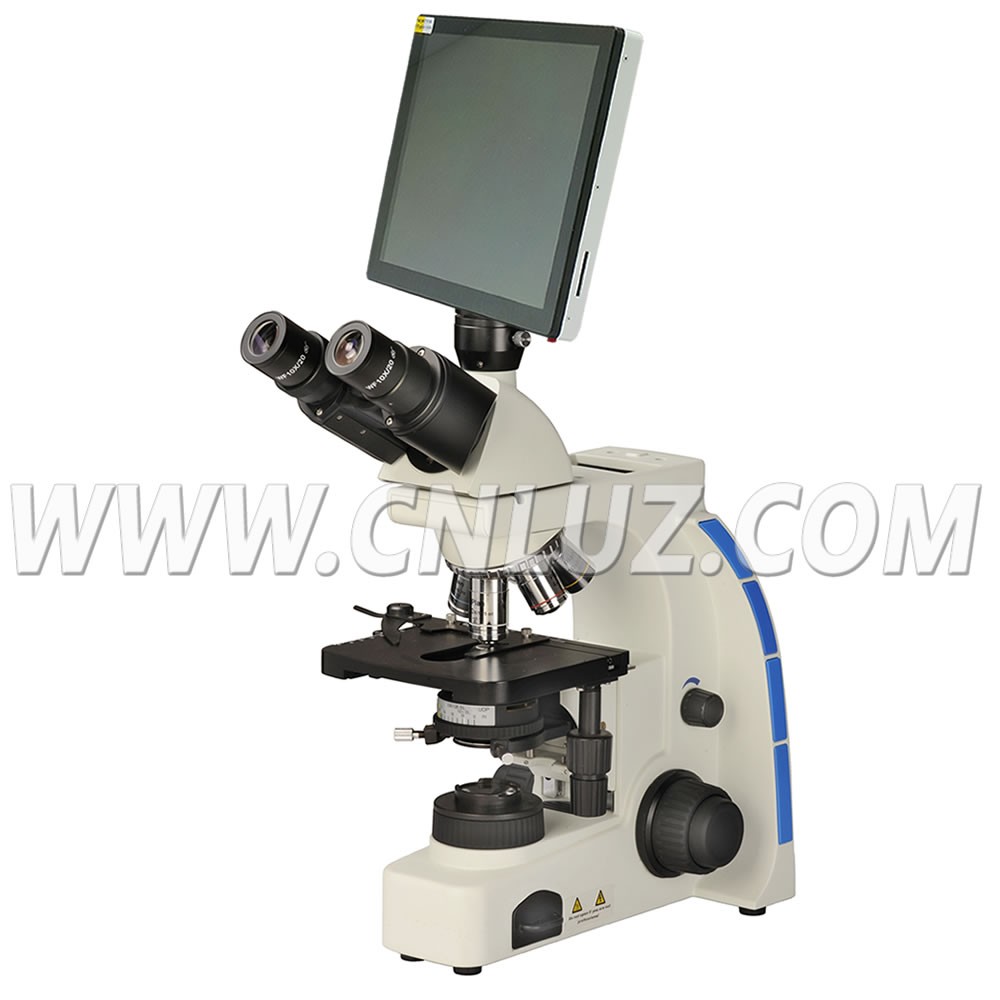

MLB.038002Biological LCD Microscope, 5.0M CMOS, 9.7''LCD, 40X~1000X
  • /usr/575/images/Products/Y/57518429.jpg
  •
  •
  •
  • Magnification 40X~1000X
  • 9.7’’ LCD Screen,resolution 1024*768
  • 5.0M CMOS Image Sensor built-in
  • Infinite Semi-Plan Achromatic Objective
9.7" LCD Pad with Andriod System of  MLB.038002
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch
CPU

1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System

RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser

1/2.5" CMOS, Color, Aptina MT9P001

Resolution
5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount Interface

Specification of Main Body












Specification
Main Body of MLB.038002
Head
Seidentopf Binocular Head, Inclined at 30°, 360° rotatable; Interpupillary Distance 52-75mm, ±5diopter adjustment with C-mount Adapter
Eyepiece

Wide Field Eyepiece WF10x/20mm

Magnification
40x~1000x
Objective
Infinite Plan Achromatic Objective 4x
Infinite Plan Achromatic Objective 10x
Infinite Plan Achromatic Objective 40x
Infinite Plan Achromatic Objective 100x(Spring,Oil)
Nosepiece

Quadruple, reversed type with positive click stops

Focusing

Low positioned, coaxial coarse&finefocusing system with an adjustable tension control and upper limit stopcoarse knob coarse 14mm/rot,fine 0.1mm/rot, minimum reading 1μm on left-side fine knob, moving range 20mm

Stage

Double layer mechanical stage, size 156x138mm, moving range 76x54mm low position and right hand controls,X-Y coaxial control knob, two slides holder

Condenser

Abbe N.A.1.25with iris diaphragm and with socket for phase contrast / dark field slider, centering adjustable,height adjustable, color-coded diaphragm scale marking corresponded with the objectives of different power.

Filter
Blue filter Φ 38
Illumination
6V 20W halogen lamp, brightness adjustable, Kohler type with field diaphragm
Power Supply 100-240V wide power range
