MLB.003090LCD Biological Microscope, 9" LCD, 5M CMOS, HDMI, 40X~400X
  • /usr/575/images/Products/Y/57518580.jpg
  • /usr/575/Picture/Y/11491.gif
  •
  •

MLB.003090 is for medical and health units, university, research, institution to observe and research micro-organisms, cells, bacteria, tissue culture, suspended substance, sediments and so on, especially for continuous observation of cells, bacteria in cultivation liquid. And the microscope can easily snap shot the growing and dividing process. It is widely used for cytology, parasites, oncology, immunology, genetic engineering, industrial microbiology, botany and etc.

Digital Part
LCD Screen 9 HD Inches, Resolution is 1280*800
Image Sensor 5.0 Mega
Photo Resolution 2560X1920
Video Resolution 1280X720/30FPS
Data Output HDMI
Storage 4G SD Card
Date Mode Year, Month, Day, Hour, Minute
Measurement Crosshair and Arrow (Black,White,Red,Green,Blue)
Language

Nine Languages (English,Germany,French,Spanish,Russia,
Janpanese,Korean,Latin,Arabic)

Coordinate Colors Black/White/Red/Blue/Green

Optical Part
Specification

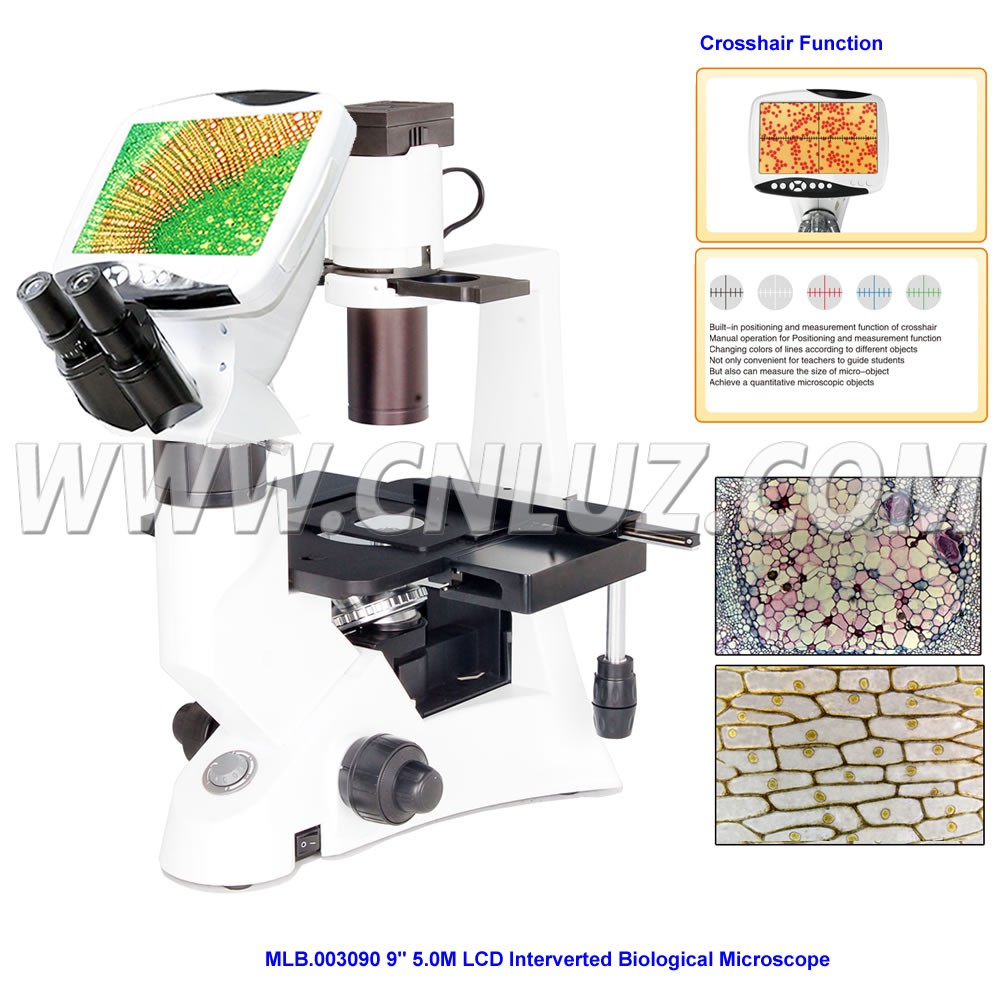

MLB.003090 9" 5.0M LCD Inverted Biological Microscope
Head
Seidentopf Trinocular Head, 30° Inclined, Interpupillary 55~75mm, Diopter Adjustable
Optical System
Infinite optical system
Eyepiece
Extra Wide Field Eyepiece EW10x/18mm, High Eyepoint
Objective
Infinity Plan LWD Achromatic Objective 4x/0.1, W.D.18mm
Infinity Plan LWD Achromatic Objective 40x/0.6, W.D.2.6mm,Cover Glass 1.2mm
Infinity Plan Phase Contrast Achromatic Objective PH10x/0.25, W.D.10mm
Infinity Plan Phase Contrast Achromatic Objective PH20x/0.40, W.D.5.1mm
Nosepiece
Quintuple Nosepiece
Focusing
Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation
Stage

* Plain Stage 160*250mm
* Glass Insert Plate
* Auxiliary Stage 70*180mm

Condenser
ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser
Phase Contrast
Phase Contrast Slide, 2 Holes For 10x-20x Objective
Filters
Green, Blue, Ground Glass, Dia.45mm
Illumination
External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable

Item
Optional Accessories
Objective

LWD Infinity Plan Achromatic 10X

LWD Infinity Plan Achromatic 20X

Infinite Plan Phase Objective PH40×/0.65,WD0.35mm
Phase Annulus
40×Phase Annulus Plate
Stage


Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang 120×78mm

Terasaki Holder

Φ38mm Petri Dish Holder

Φ54mm Slide Glass Holder
