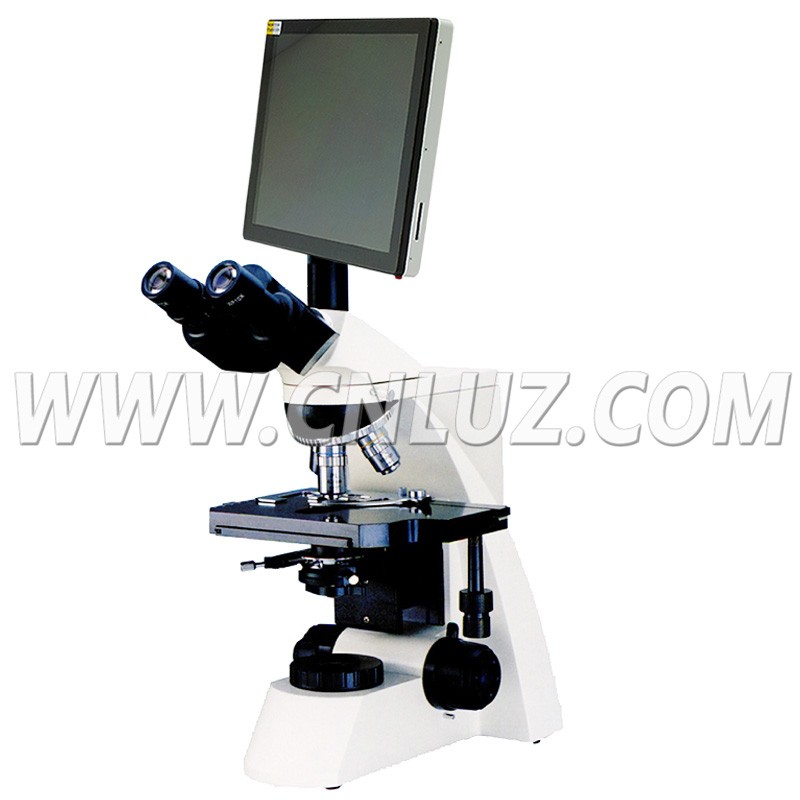

9.7" LCD Pad with Andriod System of MLB.001010
|
Specification of LCD PAD
|
LCD Screen |
9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch |
| CPU |
1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System
|
| RAM |
2GB, Support DDR3, DDR2, LPDDR2 |
| Data Storage |
SD Card Slot, Support Max 32GB C10 High Speed SD Card |
| Data Interface |
HDMI, Mini USB2.0, USB 2.0 |
| Operation System |
Android 4.2 System, Multi Language |
| Power |
Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off |
| WIFI |
Support |
| Bluetooth |
Support |
| Software |
YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed |
| Product Size |
Pad 17.5*22.5*2.0cm |
| Package Size |
Packing Box 10*24*29cm, 1 pc/Box |
| Specification of Digital Camera |
Senser |
1/2.5" CMOS, Color, Aptina MT9P001 |
|
Resolution
|
5.0M Pixels, Maximum Photo Resolution 2592*1944 |
| Pixel Size |
2.2um*2.2 um |
| Effective Image Size |
5.70(H) * 4.28(V)mm, (7.23mm Diagonal) |
| Frame Rate |
1280*720/15 Fps, 640*480/30Fps |
| Dynamic Range |
66.5dB |
| SNR |
40.5dB Max |
| ADC |
12 Bit, On Chip |
| Shutter Type |
ERS, Auto |
| White Balance |
Auto |
| Connect |
Standard C-Mount Interface |
