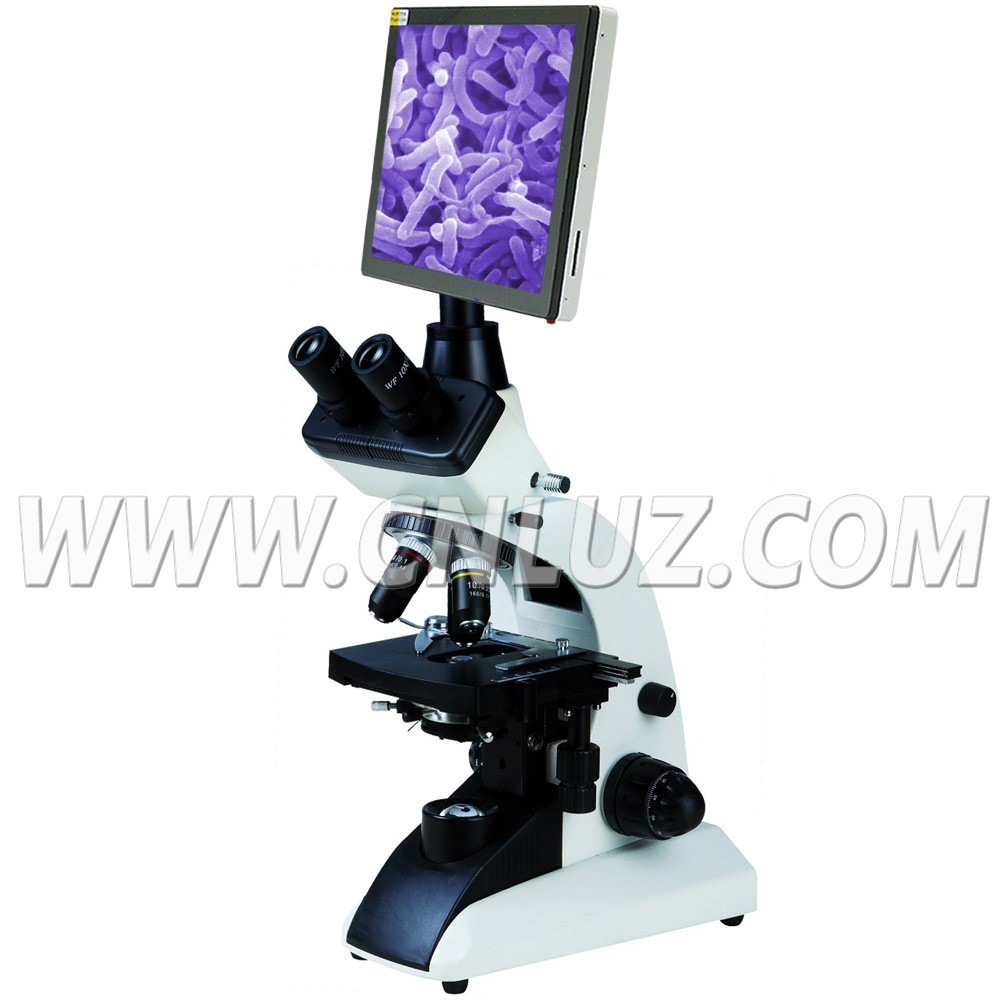

MLB.040015LCD Biological Microscope, 9.7''LCD, 5M, 40X~1000X
  • /usr/575/images/Products/Y/57519503.jpg
  •
  •
  •

9.7’’ LCD Screen,resolution 1024*768

5.0M CMOS Image Sensor built-in

This series microscope is widely used in Biology. Histology, Pathology, Medicament, chemistry research and Clinical examination. It can also be used for education in Colleges and Schools.



9.7" LCD Pad with Andriod System of MLB.040015
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch
CPU 1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System
RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser 1/2.5" CMOS, Color, Aptina MT9P001
Resolution
5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount Interface

Specification of Main Body
Specification
Main Body of MLB.040015
Head
Sliding Trinocular,45°inclined,55mm-75mm
Eyepiece
WF10x/18mm
Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x, SPring
Achromatic Objective 100x, Spring, Oil
Nosepiece
Quadruple Revolving Nosepiece
Focusing
Coaxial Coarse and Fine Focusing Scale Value 0.002mm
Stage
Double Layer Mechanical Stage,Size140x132mm,Moving Range:70mmx30mm
Condenser
Abbe Condenser N.A.=1.25, with Iris Diaphragm and Filter
Light Source
Halogen Bulb6V/20W or 6V/15W,AC 220V/110V, Adjustble Brightness
