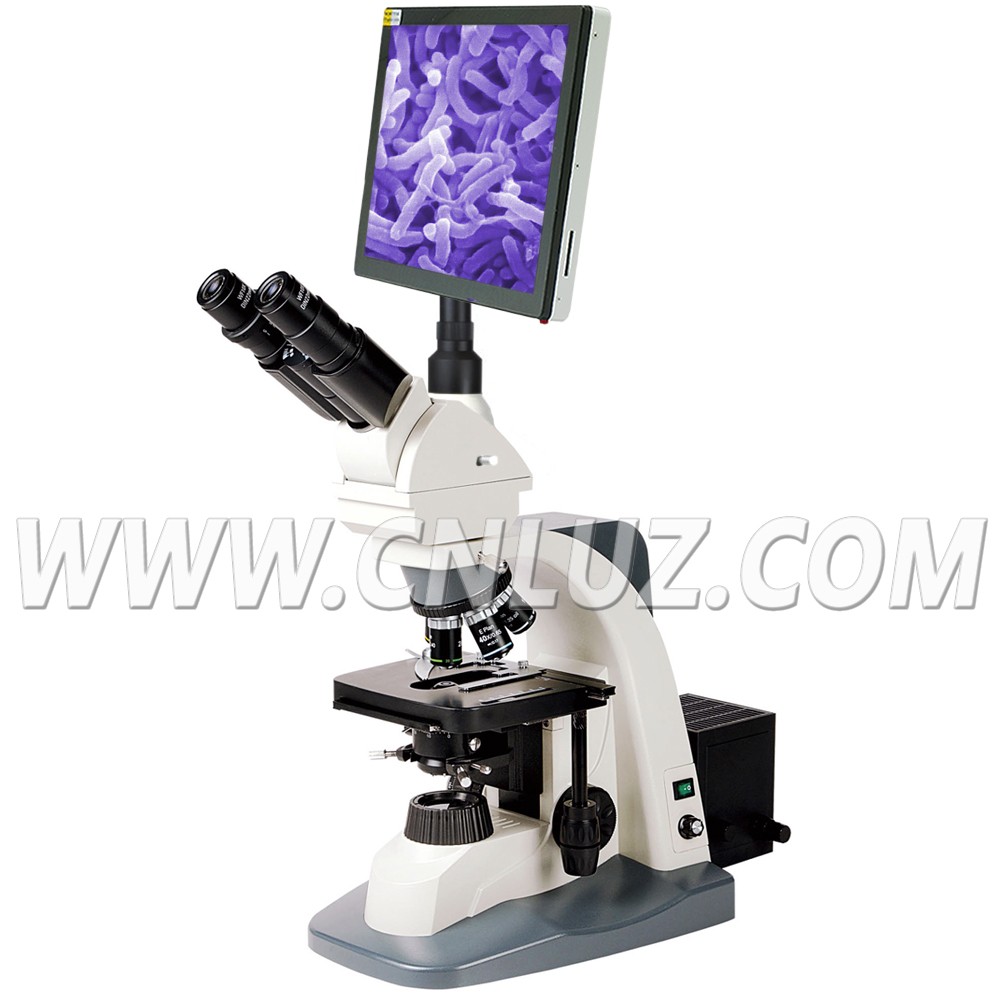

LCD Biological Microscope, 9.7''LCD, 5M, Infinity Plan, 40X~1000X

MLB.040019LCD Biological Microscope, 9.7''LCD, 5M, Infinity Plan, 40X~1000X

9.7’’ LCD Screen,resolution 1024*768

5.0M CMOS Image Sensor built-in

It is diversification brings you enter into an epoch not only the performance but also the application. The module design can meet your needs on all normal experiment and scientific research .
Its humanized configuration design,reasonable control device and layout of every operation knob can keep your eyes, neck, shoulders, waist, arms and wrist against tiredness. You can be released from heavy word due to the comfortable operation.

9.7" LCD Pad with Andriod System of MLB.040019
Specification of LCD PAD	LCD Screen	9.7" HD Diagonal IPS LCD Resolution 1024*768 Backlight Screen, Five Point Touch Screen, Hardware Power Switch
	CPU	1.6GHz Four Core ARM Mali-400 MP GPU Support OpenGL ES 1.1/2.0 And OpenVG 1.1 Support Full HD 1080p Support Android 4.2 System
	RAM	2GB, Support DDR3, DDR2, LPDDR2
	Data Storage	SD Card Slot, Support Max 32GB C10 High Speed SD Card
	Data Interface	HDMI, Mini USB2.0, USB 2.0
	Operation System	Android 4.2 System, Multi Language
	Power	Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor, Power Mode : Normal, Sleep, Power Off
	WIFI	Support
	Bluetooth	Support
	Software	YX Camera Installed, --Can Adjust Real Time Image --Can Measure Length, Area, Angle, Count --Can Take Picture, Record Video YX Image Installed --Grey, Contrast, Brightness Adjust --Binary Image For Granular Count Both Software Chinese/English Version, With Instruction Manual Installed
	Product Size	Pad 17.522.52.0cm
	Package Size	Packing Box 102429cm, 1 pc/Box
Specification of Digital Camera	Senser	1/2.5" CMOS, Color, Aptina MT9P001
	Resolution	5.0M Pixels, Maximum Photo Resolution 2592*1944
	Pixel Size	2.2um*2.2 um
	Effective Image Size	5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
	Frame Rate	1280720/15 Fps, 640480/30Fps
	Dynamic Range	66.5dB
	SNR	40.5dB Max
	ADC	12 Bit, On Chip
	Shutter Type	ERS, Auto
	White Balance	Auto
	Connect	Standard C-Mount Interface

Specification of Main Body	Specification	Main Body of MLB.040019
	Head	Compensation FreeTrinocular,0°-40° inclined adjustment, Interpupillary Distance 55mm-75mm
	Eyepiece	WF10X/22mm
	Objective	Infinity Plan 4X
		Infinity Plan 10X
		Infinity Plan 40X, Spring
		Infinity Plan 100X/Oil, Spring
	Nosepiece	Quintuple Revolving Nosepiece
	Focusing	Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm
	Stage	Double Layer Mechanical,Size 180mmX160mm,Moving Range75mmx50mm
	Collector	Kohler Illumination
	Condenser	Swing N.A.1.25 Abbe Condenser with Iris Diaphragm Filter
	Light Source	Halogen Bulb12V/30W,12V/50W or 12V100W,AC 85-230V, Adjustble Brightness
