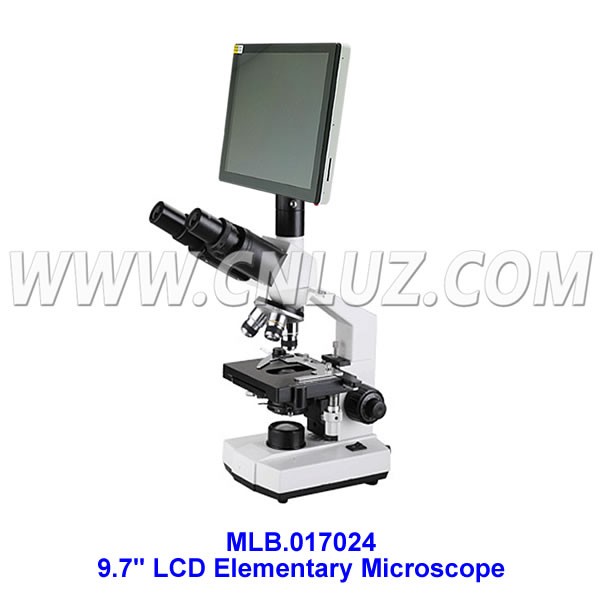

MLB.0170249.7” LCD Elementary Microscope for Student
  • /usr/575/images/Products/Y/57520258.jpg
  •
  •
  •
  • 5.0M,USB 2.0 with Android system
  • An economical model for student with a 9.7” LCD pad
  • Excellent performance microscope



9.7" LCD Pad with Andriod System of MLB.017024
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch
CPU

1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System

RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser 1/2.5" CMOS, Color, Aptina MT9P001
Resolution
5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount Interface

Specification of Main Body Specification
Main Body of MLB.017024
Head Binocular Head, 30° Inclined, 360° Rotatable
Eyepiece WF10x
Objective
Achromatic Objective 4x
Achromatic Objective 10x
Achromatic Objective 40x
Achromatic Objective 100x
Nosepiece
Quadruple Nosepiece, Ball Bearing Inner Locating
Focusing
Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm
Stage
Double Layer Mechanical Stage 115*125mm
Condenser
Abbe condenser N.A.1.25 with Iris diaphram & filter
Illumination
Halogen Lamp or LED Optional, Brightness Adjustable
