MLS.003010Streo LCD Microscope, 8X~80X
  • /usr/575/images/Products/Y/57517748.jpg
  • /usr/575/Picture/Y/10766.jpg
  •
  •

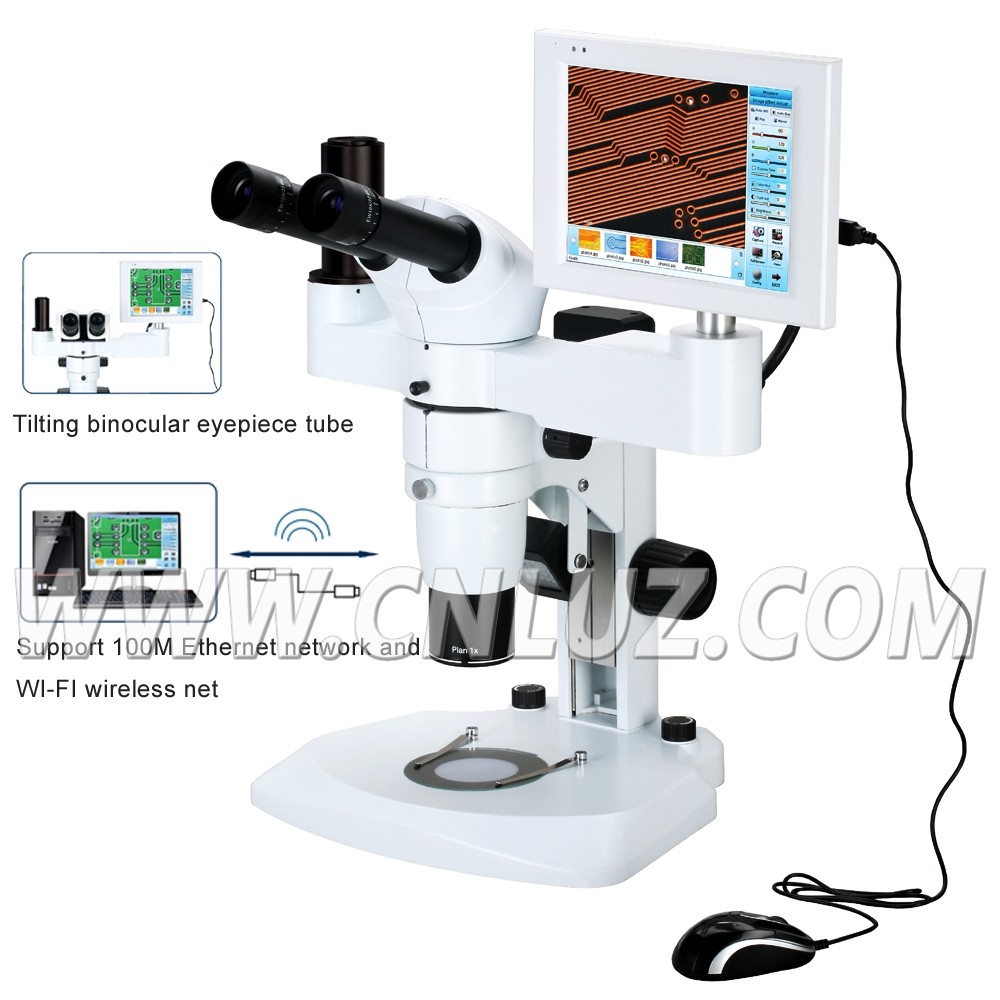

  • MLS.003010 series are new generation microscope with micro computer which drives the operation system WinCE5.0 and display system.
  • It supports 100M Ethernet network and WI-FI wireless net and can communicate with PC.
  • 8.4 Inch TFT touching screen, friendly man-machine interface, multiple peripheral interfaces and powerful processing function, make it very easy to operate. And it can be widely used in various optical micro fields, such as teaching, researching, electronic checking and so on.
Specification
MLS.003010-05
MLS.003010-06
MLS.003010-08
Head
Binocular Head, 20° inclined,interpupillary 55-75mm
Eyepiece
EW10X/22
Zoom Objective
0.8x-5x
0.8x-6.4x
0.8x-8x
Zoom Ratio
1: 6
1: 8
1: 10
Nosepiece
Outward-facing Quadruple nosepiece
Objective
Plan Achromatic Objective 1x
Working Distance
78mm
Focusing
Focusing Range 105mm
Stage
Double Layers Mechanical Stage 140X140mm, movement :75X50mm
Condenser
N.A.1.25 Abbe Condenser with Iris Diaphragm and Filter
Focusing
Coaxial Coarse & Fine Focus Adjustment System, Range 24mm, Fine Division 2μm

Digital Part

2.0 Mega pixels CMOS chip, range of viewing field 80%

W-LAN and LAN function

Output

USB2.0、AV and VGA output,100M ethernet interface

Operating System

Windows CE 5.0

Software

NMS client (For PC)

NMS client (For PC)

Mouse

Mouse

Illumination
Transmission or Reflection LED Illumination, Brightness Adjustable




Item
Optional Accessories
Eyepiece
WF20x/12mm
WF15x/16mm
Objective
Plan Apochromatic Lens 0.5x
Plan Apochromatic Lens 1.0x
Plan Apochromatic Lens 2.0x
Achromatic Lens 0.3x
Achromatic Lens 0.5x
Fluorescent
EPI-Fluorescent Attachment For Stereo Microscope
Dark Field
Dark Field Attachment For Stereo Microscope
Polarizing
Simple Polarizing Attachment For Stereo Microscope
Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera
Adapter
C-mount 0.5x
C-mount 1.0x
Illumination
Coaxial Illumination Set:
--Cold Light Power Supplier,
--Dual Light Guide,
--Coaxial Episcopic Illuminator,
--Iris Diaphragm
Iris Diaphragm
Digital System
SD Interface: Support high-capacity SD card, upt 3GB
