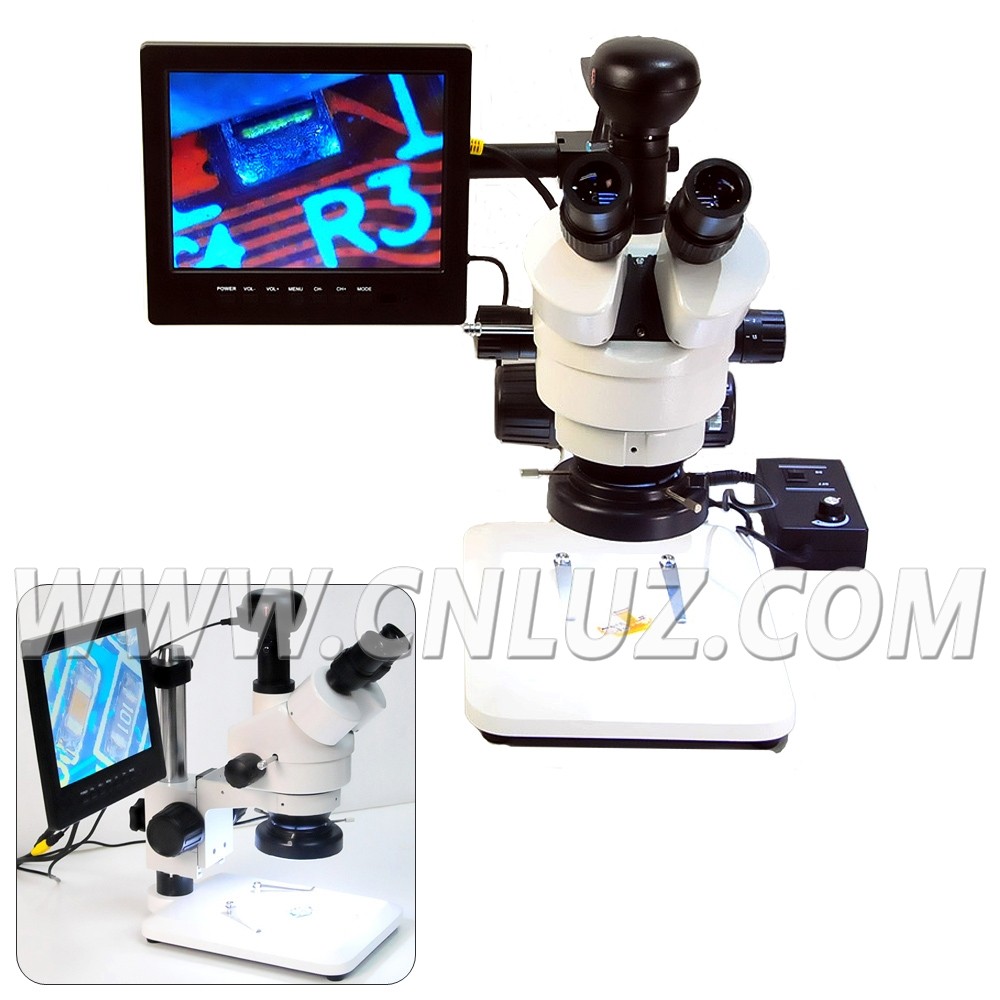

Stereo Microscope for PCB or SMT observation.
|
Specification
|
MLS.023001
|
| LCD | 8", Visual range: 162mm*121.5 mm |
| Sensor | Sony CCD,AV,700line,HD |
| Total Magnification | 7-45x |
|
Zoom Ratio
|
1:6.5 |
| Eyepiece | WF10X/20 |
| Head |
Trinocular Head, 45 ° inclined,interpupillary 55-75mm
|
| Objective | 0.7X-4.5X |
| Field of View | φ5mm-φ30mm |
|
Diopter
|
Binocular diopter adjustment range ±6
|

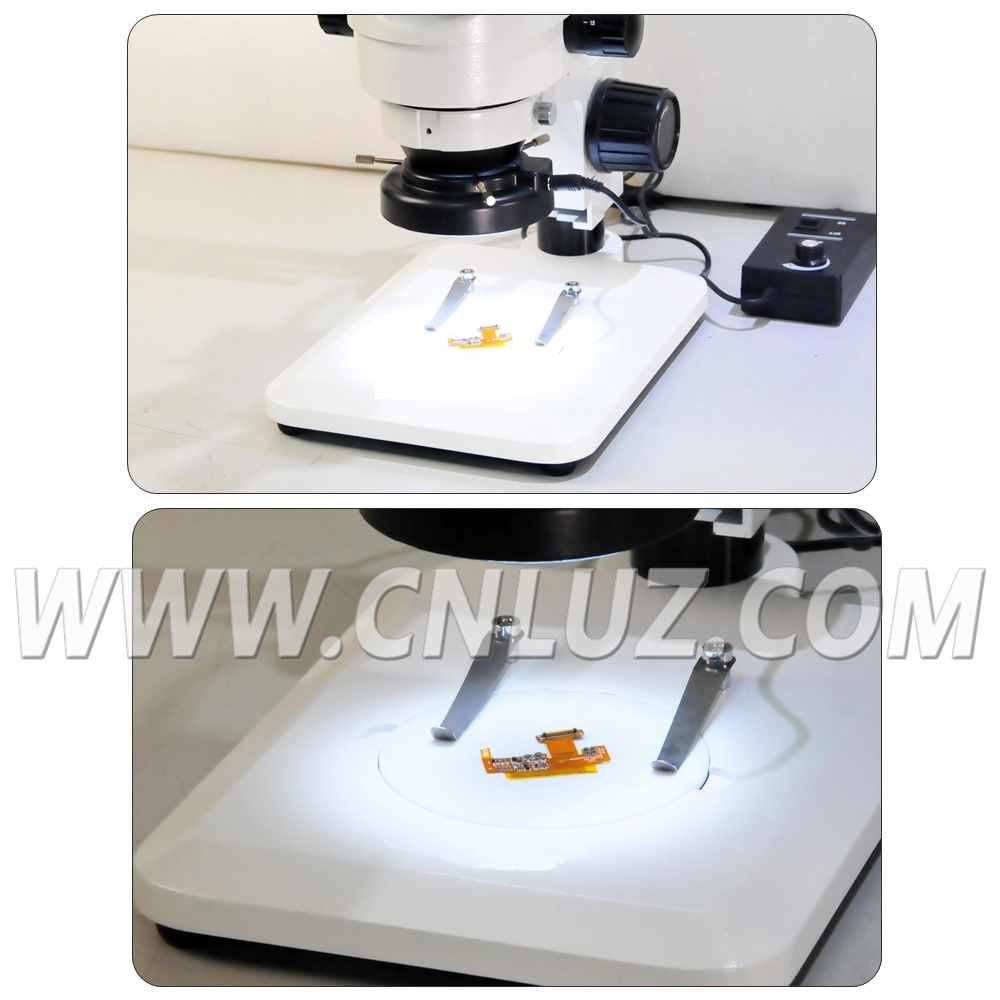

| Stage | vertical arm stage,280mm×180mm |
| Working Distance | 30mm-160mm |
