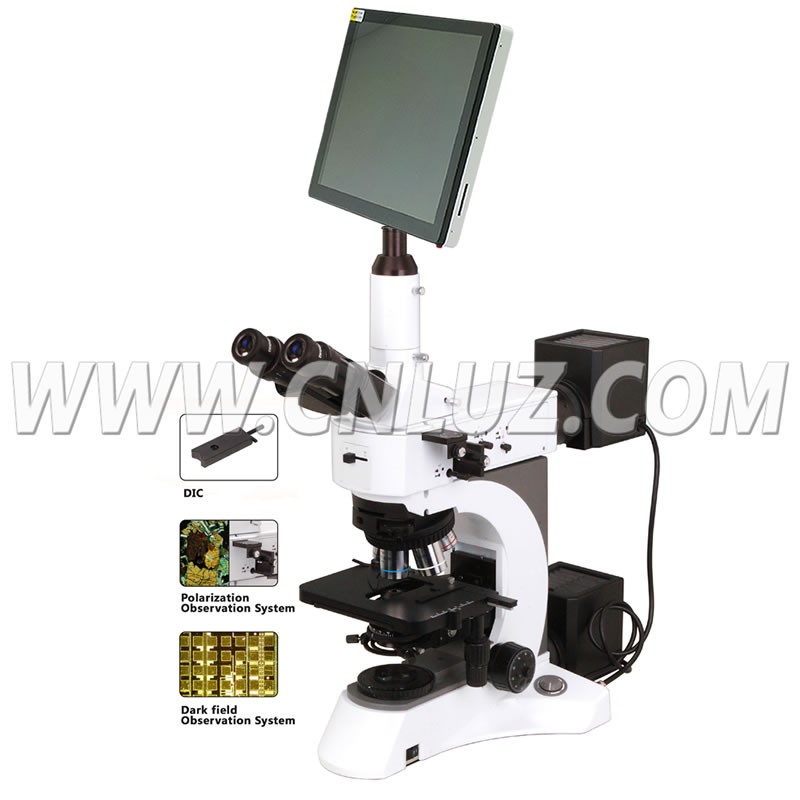

MLM.003045LCD Metallurgical Microscope, 9.7'' LCD, 5M,
  • /usr/575/images/Products/Y/57519033.jpg
  • Laboratory metallurgical microscope,including bright field,dark field,polarization and DIC observation system.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for industry inspection and science research.
  • 9.7’’ LCD Screen,resolution 1024*768
  • 5.0M CMOS Image Sensor built-in
9.7" LCD Pad with Andriod System of MLM.003045
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch
CPU 1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System
RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser 1/2.5" CMOS, Color, Aptina MT9P001
5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount Interface
Specification of Main Body
Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Optical System
Infinity Optical System, Bright Field/Dark Field, DIC, Polarizing
Eyepiece Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ - (BF/DF),W.D.12mm
Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ - (BF/DF),W.D.10mm
Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/0 (BF/DF),W.D.4.3mm
Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/0 (BF/DF),W.D.0.32mm
Infinity Plan Achromatic Objectives100x/0.80/∞/0 (BF/DF),W.D.2mm
Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17,W.D.0.54mm
Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17,W.D.0.13mm
Backward Quintuple Nosepiece
Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safty Stop, With Tension Adjustment
Maximum Sample Height 50mm
Non-Porous Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including:
Maximum Sample Height 30mm
Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including:
--Specimen Preparation Plate
--Slide Glass
Reflect Illumination
24V 100W Halogen Light, Brightness Adjustable
Kohler Illumination With Aspherical Condenser
Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer
Blue, Green, Yellow Filter, Gound Glass
Transmit Illumination
Swing-Out Condenser N.A.0.9/0.25
24V 100W Halogen Light With Aspherical Condenser
Blue Filter
