Biological Digital Microscope, 1.3M CMOS, 40X~1000X_IHPVISION:Microscope,Digital Vision

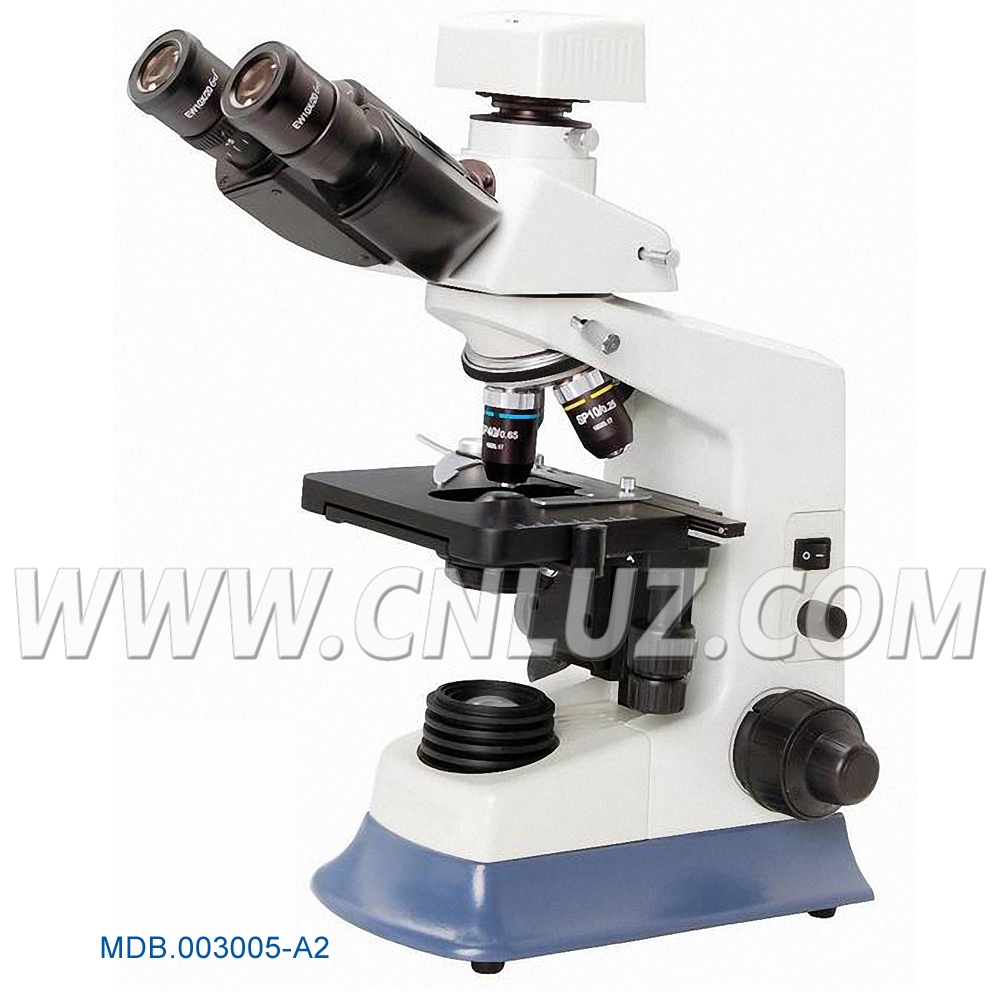

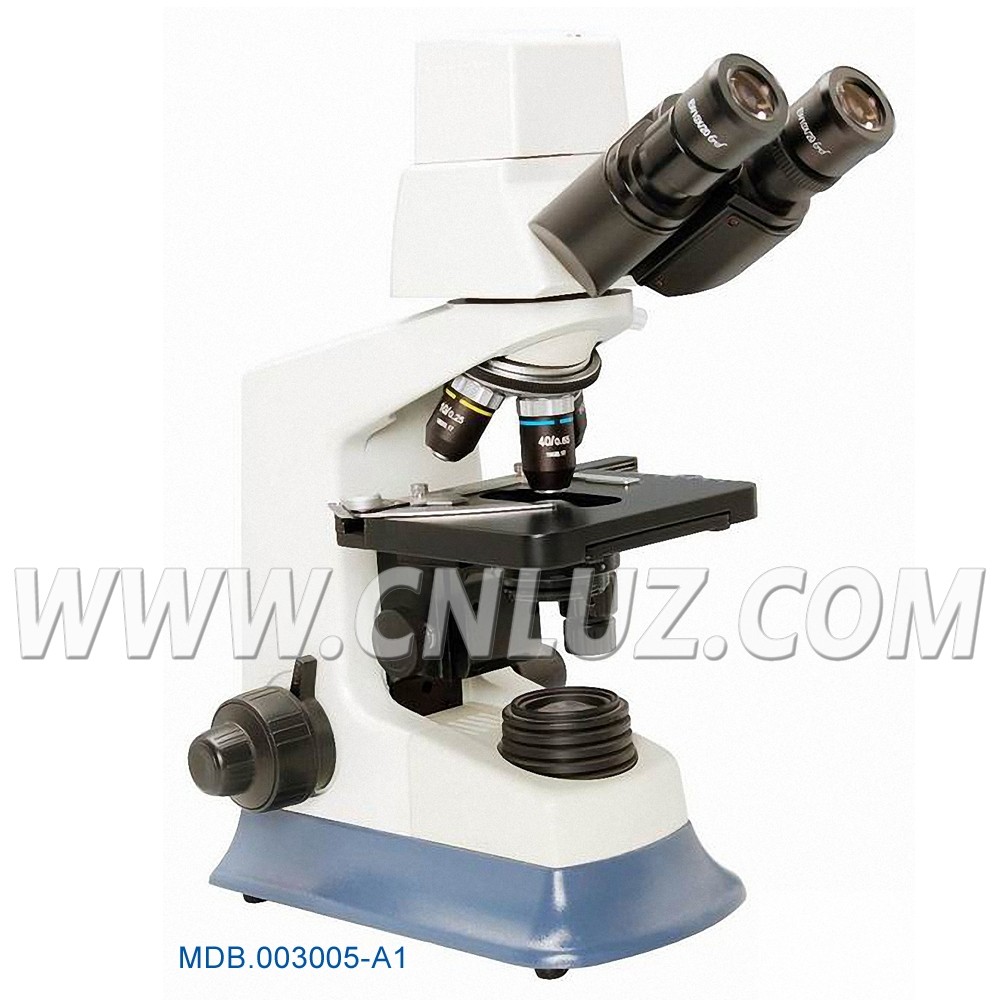

MDB.003005Biological Digital Microscope, 1.3M CMOS, 40X~1000X

High Sensitive, Real-time Image Display by 1.3M pixel CMOS Digital Camera Connecting to PC through USB2.0 or IEEE1394 Adapter
Sharper Image with Semi-plan Achromatic Objective
Steady Image Show whatever Changing the Magnification of Objective or the Size of Iris Hole
Easy Lamp Replacement Device, just Take away the Collector
Professional and Strong Micro-image Process and Analysis Software

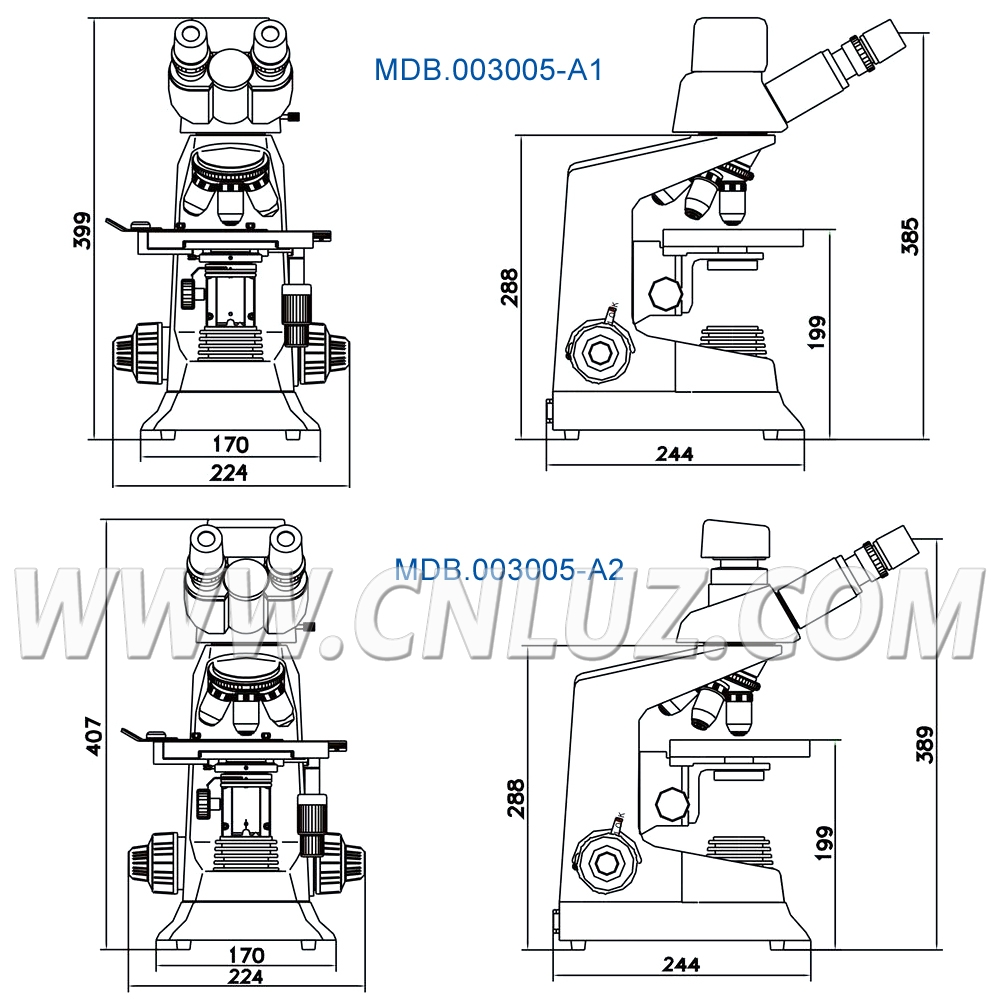

Specification	MDB.003005-A1	MDB.003005-A2
Viewing Head	Compensation Free Binocular Head at 30°, Interpupilary Distance 55-75mm	Compensation Free Binocular Head at 30°, Interpupilary Distance 48-75mm
Audio-video System	Built-in	External
	1,3M pixels CMOS digital camera with high-resolution, 1280×1024 digital camera system, USB2.0 output
Eyepiece	High Point and Wide Field EW10/20
Objective	Semi-plan Achromatic objectives 4x
	Semi-plan Achromatic objectives 10x
	Semi-plan Achromatic objectives 40x
	Semi-plan Achromatic objectives 100x
Nosepiece	Backward Quadruple Nosepiece
Stage	Double Layers Mechanical Stage 140×140mm/ 75×50mm
Condenser	N.A.1.25 Abbe Condenser
Filter	Blue Filter
	Green Filter
Illumination	Halogen Lamp 6V/20W, Brightness Adjustable
Software	ScopeImaage Advanced Micro-image Process Software

Item	Optional Accessories
Objective	Plan Achromatic Objective 4x
	Plan Achromatic Objective 10x
	Plan Achromatic Objective 40x
	Plan Achromatic Objective 100x
	Infinity Plan Achromatic Objective System
Audio-video System	2.0M pixels CMOS digital camera with high-resolution, 1600×1200 digital camera system, USB2.0 output
Audio-video System	3.0M pixels CMOS digital camera with high-resolution, 2048×1536 digital camera system, USB2.0 output
Nosepiece	Backward Quintuple Nosepiece
Illumination	Kohler Illumination
Software	ScopeImage Analysis Software
Pointer	LED Pointer
Phase Contrast Kit	Turret Phase Contrast Kit
Polarization Set	Simple Polarization Attachment
Dark Field Attachment	Dark-field Condenser(Dry)
Dark Field Attachment	Dark-field Condenser(Immersion)
