MDB.001061Biological Digital Microscope, 0.3M CCD, USB2.0, 40X~1000X

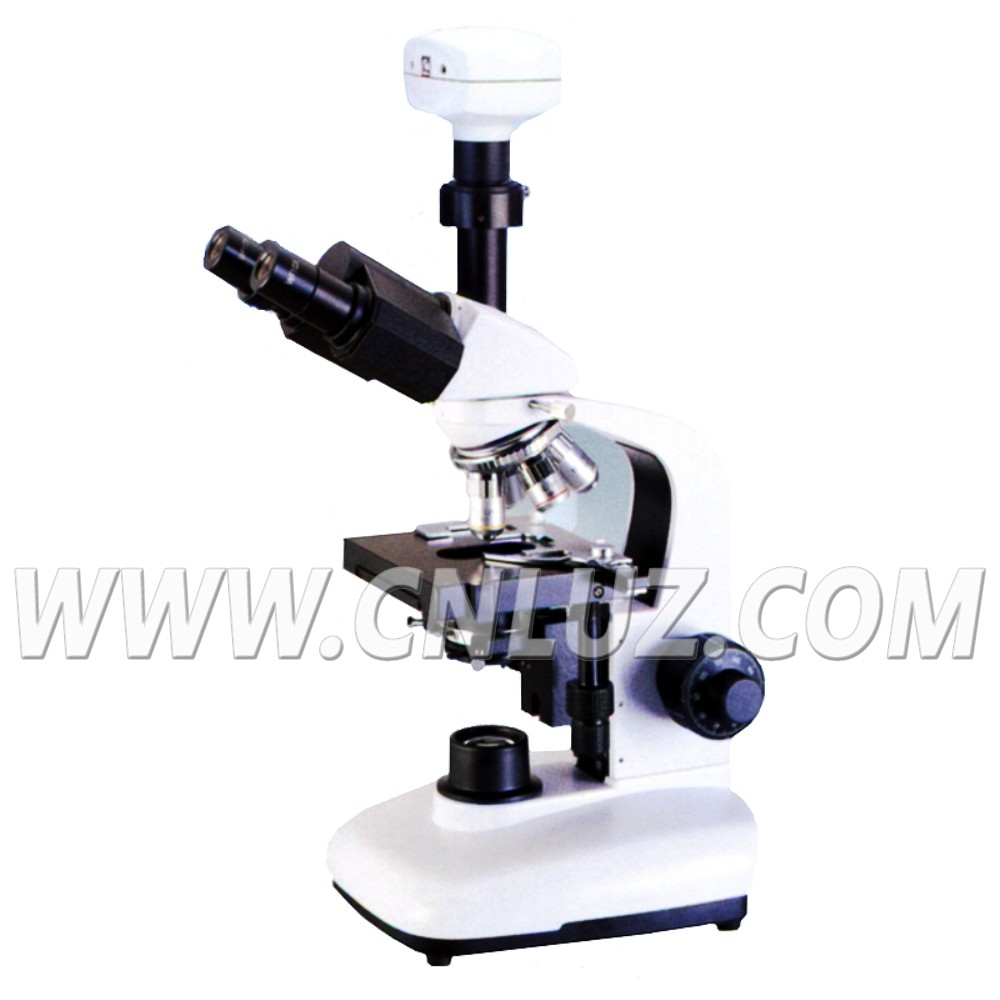

MDB.001061 Digital & Video Biological Microscope is wide field eyepieces, achromatic and digital & video camera. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Digital & Video Camera with USB and Video output
Coaxial coarse/fine focus system, with tensional adjustable and limit stopper, minimum division of fine focusing: 2μm
6V 20W halogen lamp with brightness control

Specification	MDB.001061
Head	Trinocular Head, inclination 30°
Video Camera	Digital CCD Camear 1/3" CCD USB2.0, resolution: 720X576(PAL) 720X480(NTSC), Auto white balance System requirement: Windows 2000/ Windows XP VIDEO output 380 TV lines, 1Vp-p/75Ω NTSC/PAL (optional) Accessories: Video cable, Power adapter, USB cable, Driver CD, User guide. CCD adapter:1X
Eyepiece	WF10X/18mm
Objectives	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 40X/0.65(Spring)
	Achromatic 100X/1.25(Spring, oil)
Focus System	Coaxial coarse/fine focus system, with tensional adjustable and limit stopper, minimum division of fine focusing: 2μm
Nosepiece	Quadruple (Backward ball bearing inner locating)
Stage	Double layer mechanical,size:135X125mm, Move range: 75X35mm
Condenser	Abbe condenser N.A.=1.25, rack & pinion adjustable
Filter	Blue filter
Filter	Frosted filter
Collector	For halogen lamp
Light source	6V20W halogen lamp, brightness adjustable

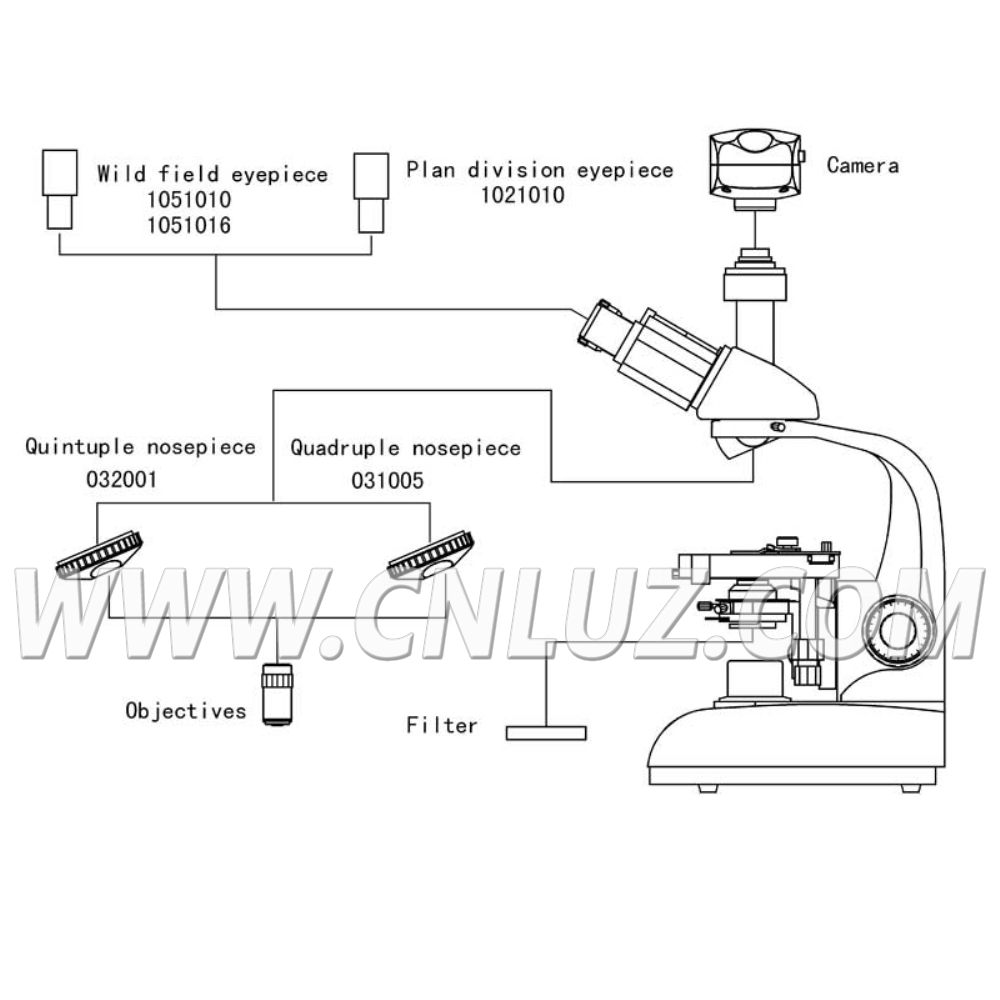

Item	Optional Accessories
Eyepiece	WF16x/11mm
Eyepiece	Dividing 10x/18mm, 0.1mm/Div
Objective	Semi-plan achromatic 4X/0.10
	Semi-plan achromatic 10X/0.25
	Semi-plan achromatic 40X/0.65(Spring)
	Semi-plan achromatic 100X/1.25(Spring, oil)
	Plan achromatic 4X/0.10
	Plan achromatic 10X/0.25
	Plan achromatic 40X/0.65(Spring)
	Plan achromatic 100X/1.25(Spring, oil)
Nosepiece	Quintuple(Backward ball bearing inner locating)
CCD Adapter	0.4x
	0.5x
	0.5x with dividing 0.1mm/Div
Video Camera	Digital CCD Camear: 1/3" CCD、USB2.0、resolution 720X576
	Digital CMOS Camear: 1/2" CMOS 、USB2.0、1.3 Mega pixels,resolution1280X1024
	Digital CMOS Camear: 1/2" CMOS 、USB2.0、2.0 Mega pixels,resolution:1600X1200
	CCD Camear： 1/3" CCD、VIDEO output 380 TV lines
	CCD Camear： 1/3" CCD、VIDEO output 520 TV lines
Filter	Green filter
Filter	Yellow filter
