MDB.001054Biological Digital Microscope,CMOS 380TV Lines, 40X1000X

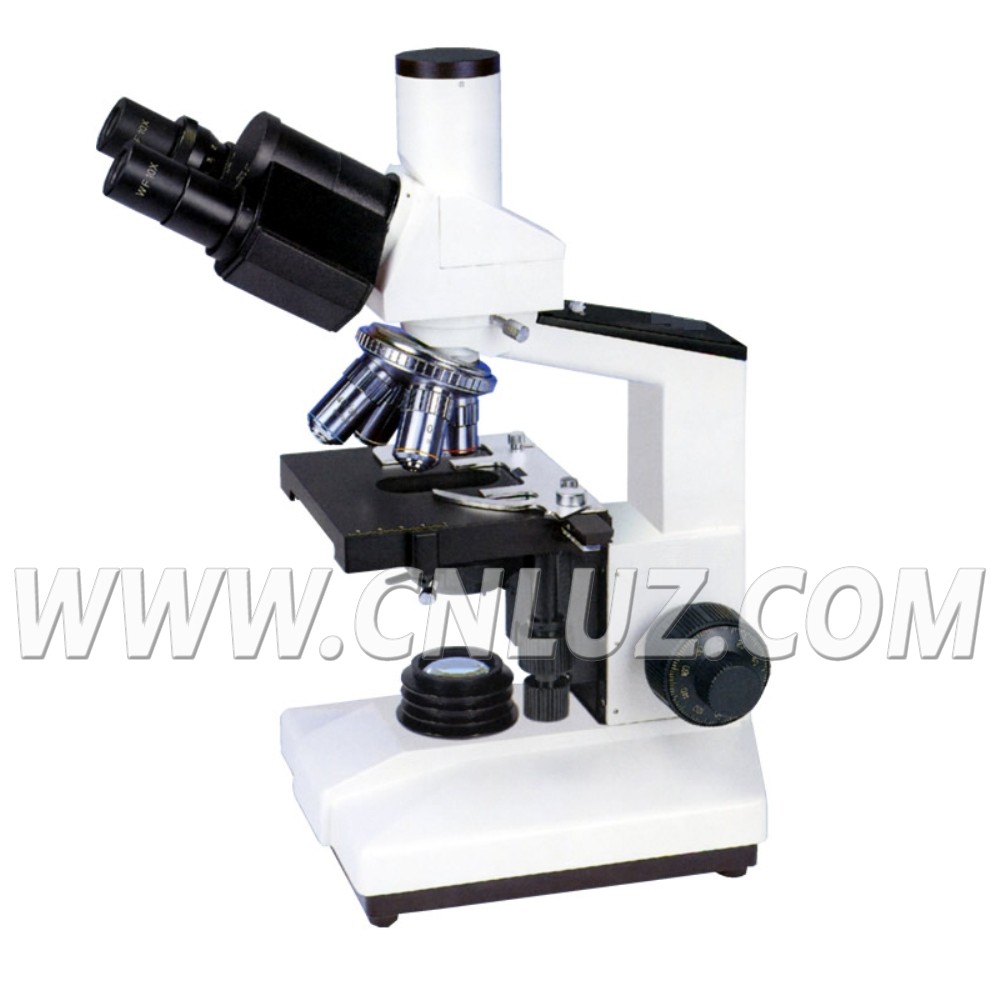

MDB.001054 Video Biological Microscope is equipped with achromatic objectives, wide field eyepieces and video trinocular. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

Built-in CMOS or CCD sensor and video output
Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm
6V 20W halogen lamp with brightness control

Specification	MDB.001054
Video Head	Built-in clear color 1/3”CMOS sensor, horizontal resolution:380TV lines White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional). Power supply adapter:9V DC.
Eyepiece	WF10X/18mm
Objectives	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 40X/0.65(Spring)
	Achromatic 100X/1.25(Spring, oil)
Focus System	Coaxial coarse/fine focus minimum division of fine focusing: 2μm
Nosepiece	Quadruple (Frontward ball bearing inner locating)
Video Cable	Standard Video cable, length:1.8m
Stage	Double layer mechanical,size:135X125mm, Move range: 75X35mm
Condenser	Abbe condenser N.A.=1.25, rack & pinion adjustable
Filter	Blue filter
Filter	Frosted filter
Collector	For halogen lamp
Light source	6V20W halogen lamp, brightness adjustable
Attachment	Video cable, length:1.8M

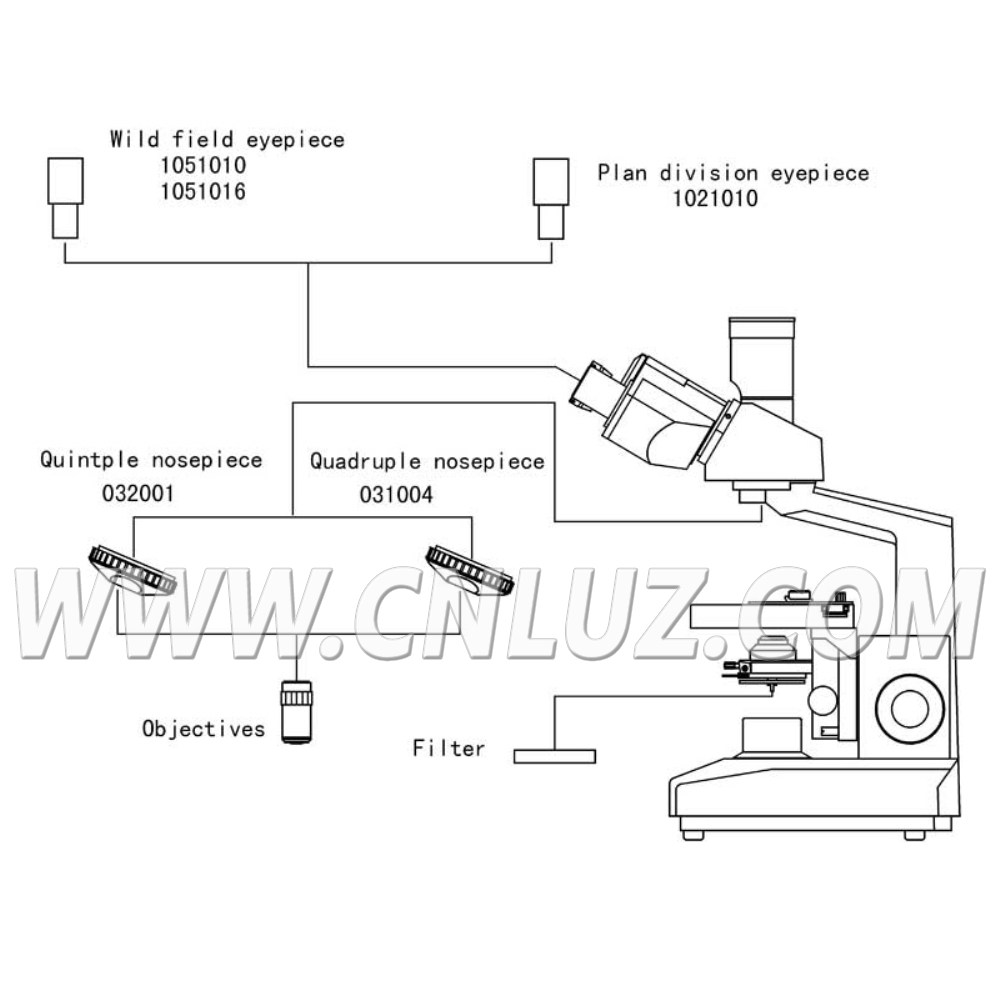

Item	Optional Accessories
Eyepiece	Dividing 10x/18mm, 0.1mm/Div
Eyepiece	WF16x/11mm
Objective	Semi-plan achromatic 4X/0.10
	Semi-plan achromatic 10X/0.25
	Semi-plan achromatic 20X/0.40
	Semi-plan achromatic 40X/0.65(Spring)
	Semi-plan achromatic 100X/1.25(Spring, oil)
Nosepiece	Quintuple(Frontward ball bearing inner locating)
Filter	Green filter
Filter	Yellow filter
