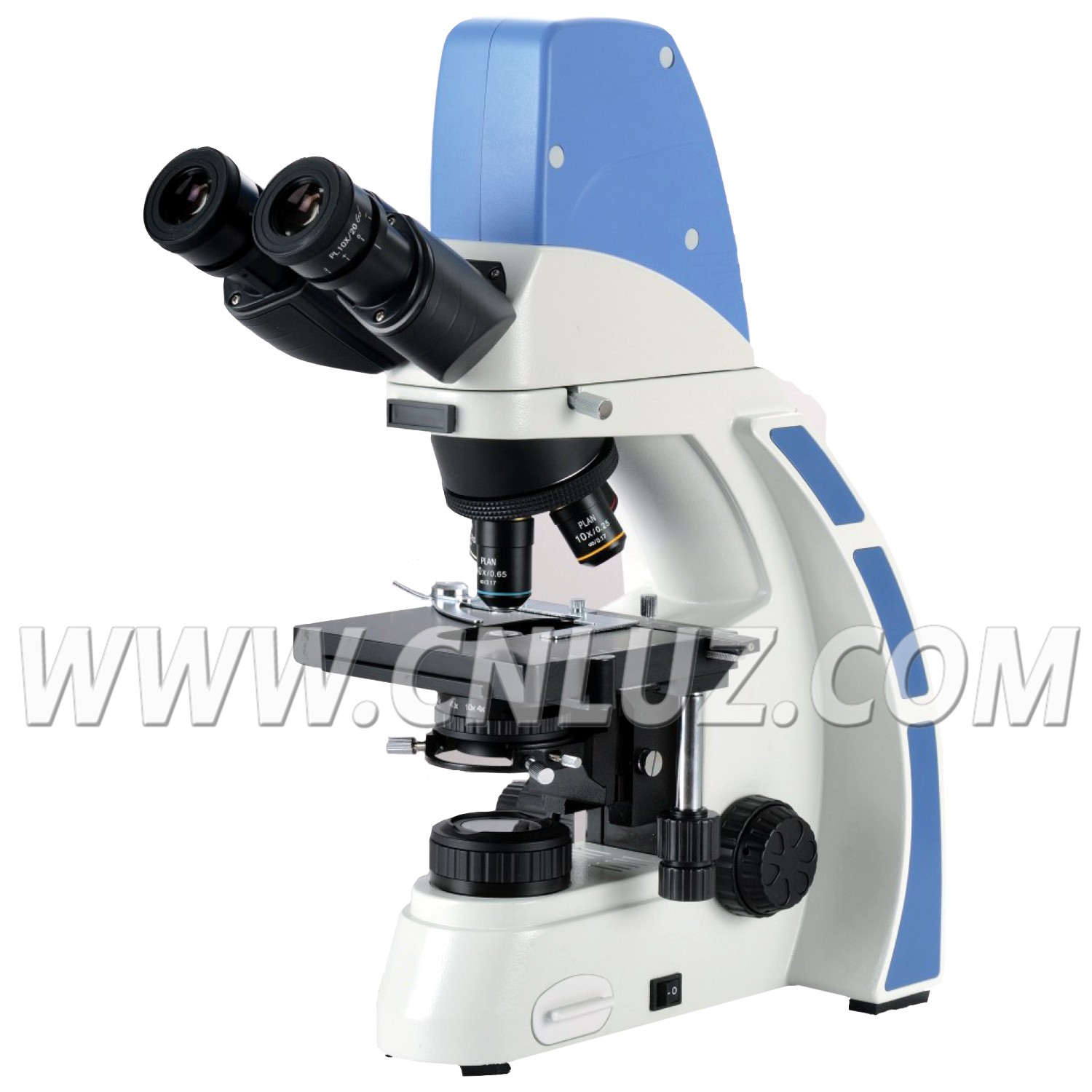

MDB.023007Biological Digital Microscope, 3.2M CMOS, 40X~1000X
  • /usr/575/images/Products/Y/57518007.jpg
  • /usr/575/Picture/Y/11015.jpg
  • /usr/575/Picture/Y/11016.jpg
  • /usr/575/Picture/Y/11017.jpg

This digital microscope used 3.2 million pixels figure chip and 1/2” target surface that can scan non-interlaced.USB2.0 can get fast outputting speed and highly signal to nosie ratio and can capture image at real time.It can completely satisfy your any requirement of image professional analysis.

Specification
MDB.023007
Digital Camera

3.2M, 1/2" CMOS, USB 2.0, Resolution Ratio 2048*1536,
Line by Line Scan, 90% Image Display Image from Field of View

Head
Binocular, 30° Inclined, Interpupillary Distance 50-75mm

Eyepiece

PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree
Objective
Infinity Plan Achromatic 4x/0.10
Infinity Plan Achromatic 10x/0.25
Infinity Plan Achromatic 40x/0.65
Infinity Plan Achromatic 100x/1.25
Nosepiece

Backward Quadruple

Working Stage
Double Layer Mechanical Stage 150*140mm, Moving Range 76*50mm, Precision 0.1mm
Focusing
Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
Condenser
Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed

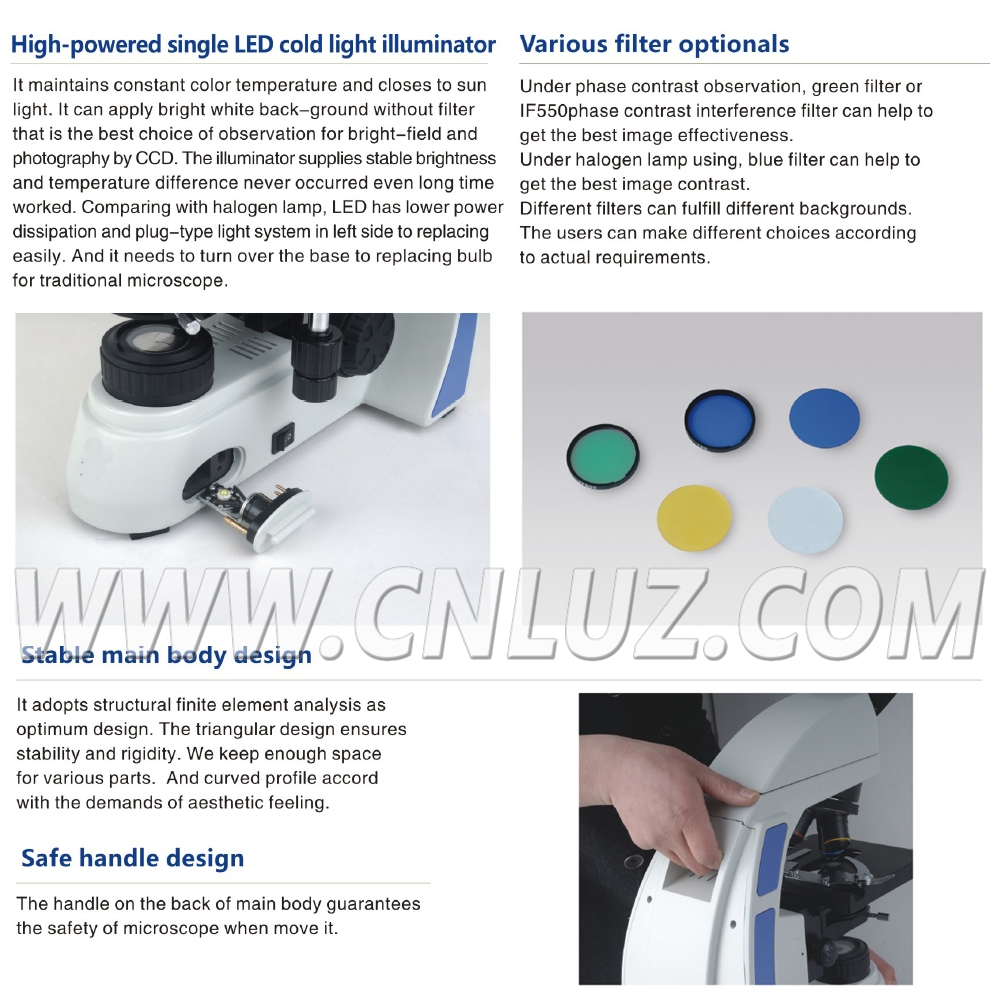

Light Source
3W LED, Intensity Adjustable, Center Fixed
Power

90~240V Wide Range Power Supply


Item
Optional Accessories
Eyepiece
PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree
Nosepiece
Backward Quintuple
Dark Field
Dark Field Slide, for 4x~40x Objective
Polarizing
Polarizer
Analyser
Filter
Blue, Dia.45
Yellow,Dia.45
Green, Dia.45
Netural, Dia.45
Phase Contrast
Centering Telescope, Dia.30mm
Phase Contrast Slide, for 10x, 40x Infinity Objective
Phase Contrast Slide, for 20x,100x Infinity Objective
Infinity Plan Phase Contrast Objective 10x/0.25, W.D.=4.70mm
Infinity Plan Phase Contrast Objective 20x/0.50, W.D.=1.75mm
Infinity Plan Phase Contrast Objective 40x/0.65, W.D.=0.72mm
Infinity Plan Phase Contrast Objective 100x/1.25, W.D.=0.15mm
N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10x,20x,40x,100x Phase Contrast Observation
N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser + Dark Field Condenser Set, For 10x,40x,100x Phase Contrast Observation and Dark Filed Observation
