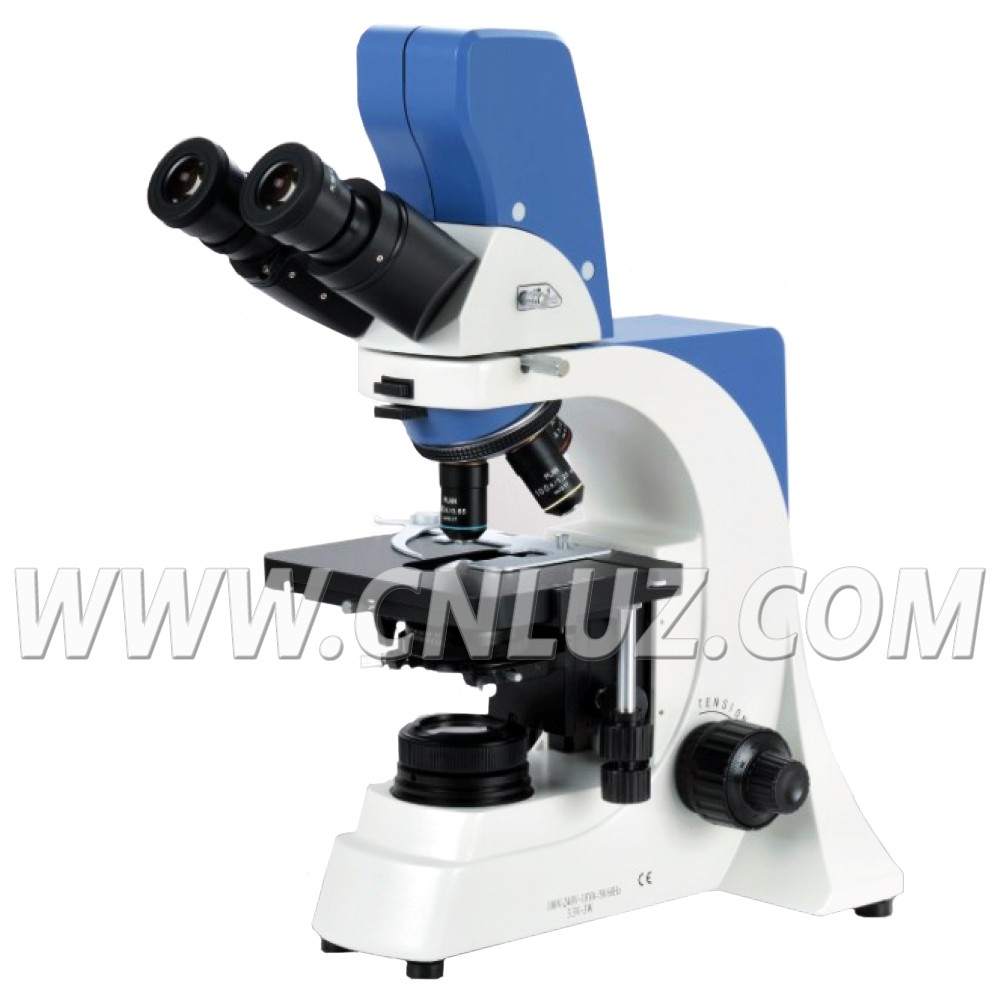

MDB.023010Biological Digital Microscope, 5M CMOS, 40X~1000X
  • /usr/575/images/Products/Y/57518034.jpg
  • /usr/575/Picture/Y/11030.jpg
  • /usr/575/Picture/Y/11031.jpg
  • /usr/575/Picture/Y/11032.jpg
  • This digital microscope adopts build-in integrated digital camera system with 5 million pixels high resolution and 1/2.5” target surface.line by line scanning,automatic exposure and auto color balance,USB2.0 output,reproduces 90% image which is in the field of view.

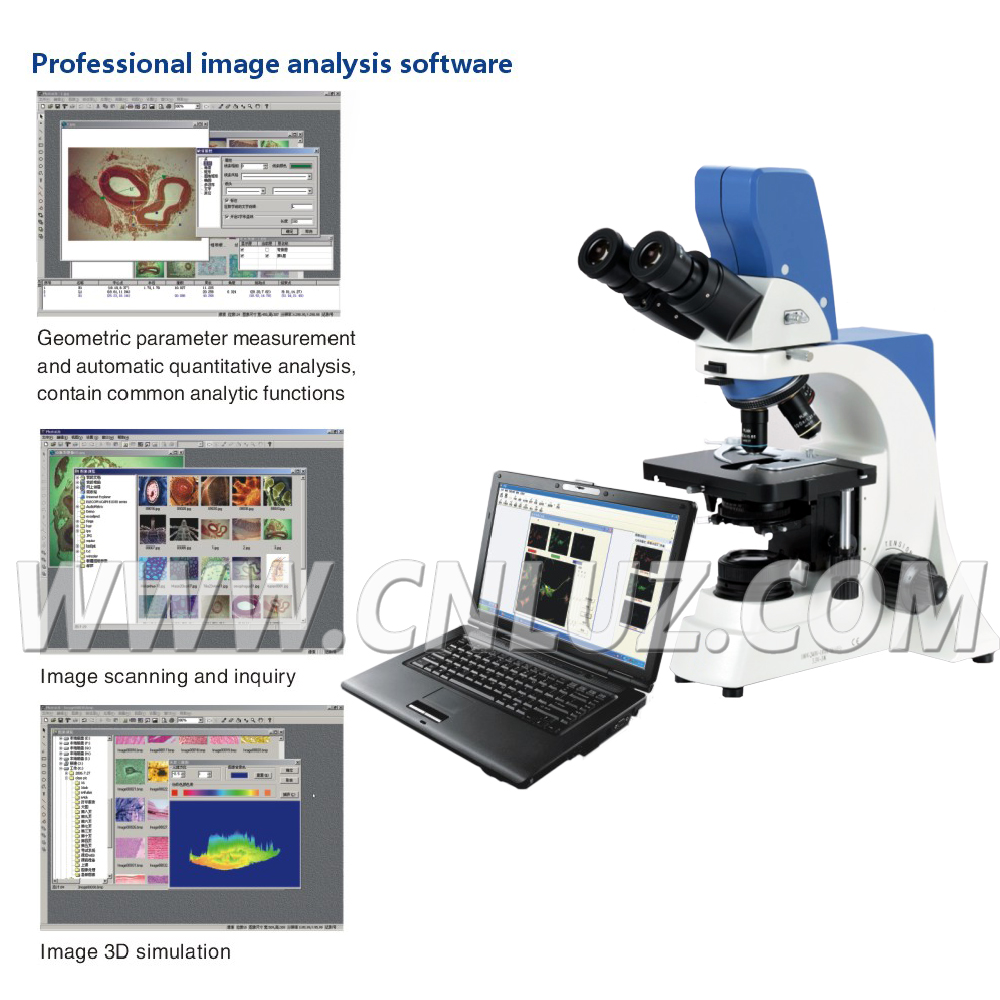

  • Professional image processing and analysis,includes more than 100 functions,such as chromaticity adjustment,image transforming,texture analysis,featurerecognition,etc.

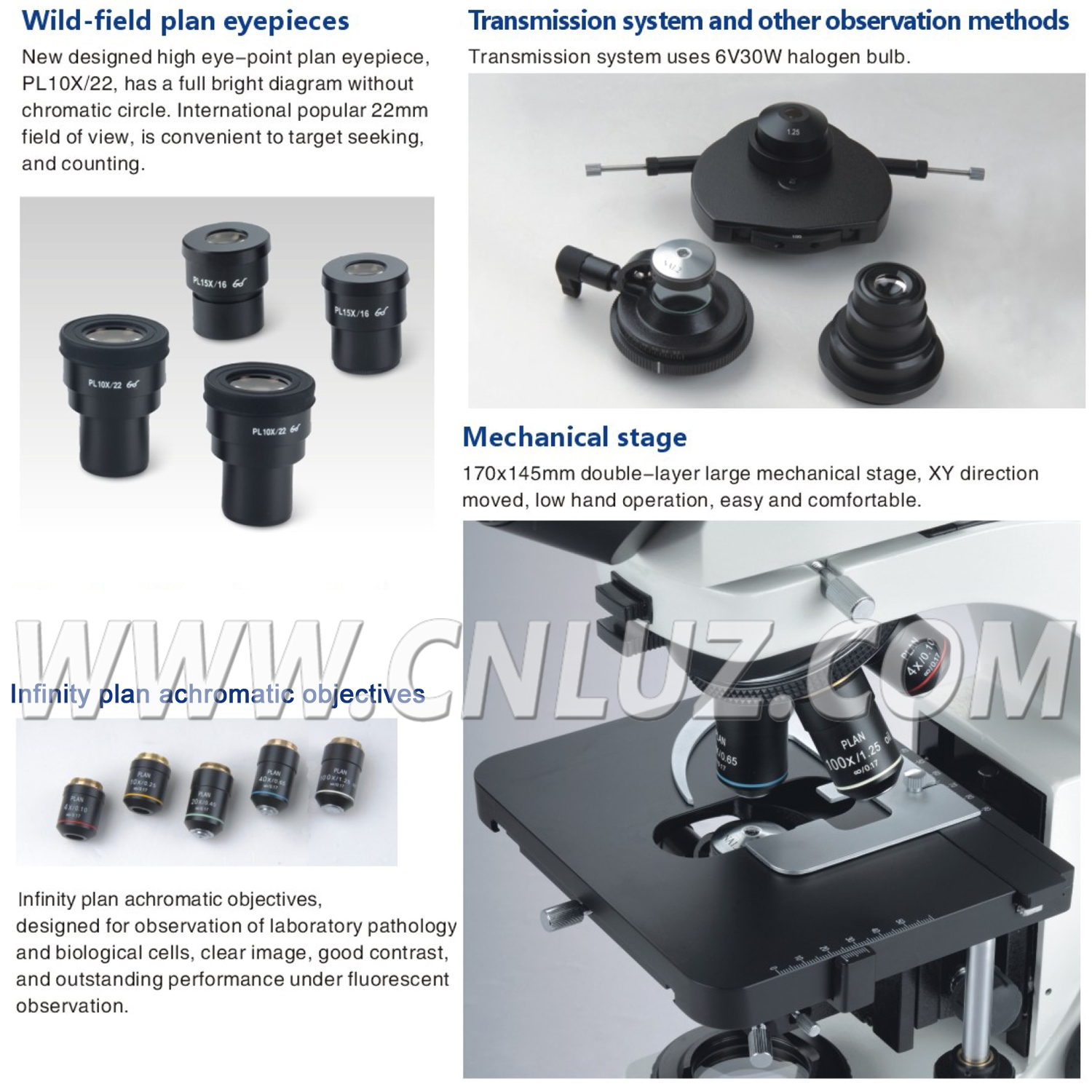

  • A new generation of infinity color corrected optical systems with wild-field high eye-point eyepieces and plan achromatic objectives, presents you sharp and bright micro-images.
  • Integrated T-shaped body with firm structure and ergonomic design makes comfortable operation.
  • Different kinds of accessories, more functions, achieve more methods of observation and suit for all kinds of detections or experiments.
Specification
MDB.023010
Optical System
Color Corrected Infinity Optical System
Digital Camera 5.0M, 1/2.5" CMOS Digital Camera Built-in, USB 2.0 Output, Repuduces 90% Of Optical View Field On Screen
Head
Binocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°
Eyepiece

PL10x/22mm, High Eyepoint, With Eye-cup

Objective
Infinity Plan Achromatic Objective 4x/0.1, W.D. 7.18mm
Infinity Plan Achromatic Objective 10x/0.25, W.D. 4.70mm
Infinity Plan Achromatic Objective 20x/0.40, W.D. 1.75mm
Infinity Plan Achromatic Objective 40x/0.65, W.D. 0.72mm
Infinity Plan Achromatic Objective 100x/1.25 W.D. 0.15mm
Nosepiece
Reversed Quintuple Nosepiece
Focusing
Low Position Coaxial Focusing System, WIth Tension Adjustment and Up-limit. Coarse Focusing Range 25mm, Fine Focusing Precision 0.002mm
Stage
Double Layer Mechanical Stage, 175*145mm, Moving Range 75*50mm, Moving Precision 0.1mm
Filter
Blue Filter Dia.45mm
Power
90~240V Wide Range Voltage
Condenser
N.A.1.2/0.22 Swing Achromatic Condenser, With Scale Marked Diaphragm
Illumination
Built-in Koehler Illumination 6V30W Halogen Light (Philips 5761), Brightness Continously Adjustable, Center Pre-fixed

Item
Optional Accessories
Eyepiece
PL10x/22mm, High Eyepoint
PL10x/22mm, Plan Eyepiece with Cross, High Eyepoint
Software
  • Professional Image Processing And Analysis, Including More Than 100 Functions
  • Support 24 Bit Ture Color Image Processing,
  • Support Color Mode RGB,CMY, HSY, YUV
  • Advanced Particle Automatic Identification,
  • Automatic Segmentation of Blocking Particles
  • Geometric Parameter Measurement And Auto Quantitative Analysis
Dark Field
Dark Field Condenser, Dry, N.A=0.9
Dark Field Condenser, Immersion, N.A=1.2
Polarization Set
Polarizer, Dia. 45mm
Analyizer Slide
λ Slide
Rotatable Working Stage
Filter
Yellow, Dia.45mm
Green, Dia.45mm
Neutral, Dia.45mm
Adapter
C-Mount, 1.0x, Focus Adjustable
C-Mount, 0.67x, For 2/3" CCD, Focus Adjustable
C-Mount, 0.50x, For 1/2" CCD, Focus Adjustable
C-Mount, 0.35x, For 1/3" CCD, Focus Adjustable
Infinity Plan Phase Contrast Set
Centering Telescope
Infinity Plan Phase Contrast Objective 10x/0.25, W.D. 4.70mm
Infinity Plan Phase Contrast Objective 20x/0.25, W.D. 1.75mm
Infinity Plan Phase Contrast Objective 40x/0.65, W.D. 0.72mm
Infinity Plan Phase Contrast Objective 100x/1.25, W.D.0.15mm
Infinity Phase Contract Disc Condenser, Abbe N.A.1.25
