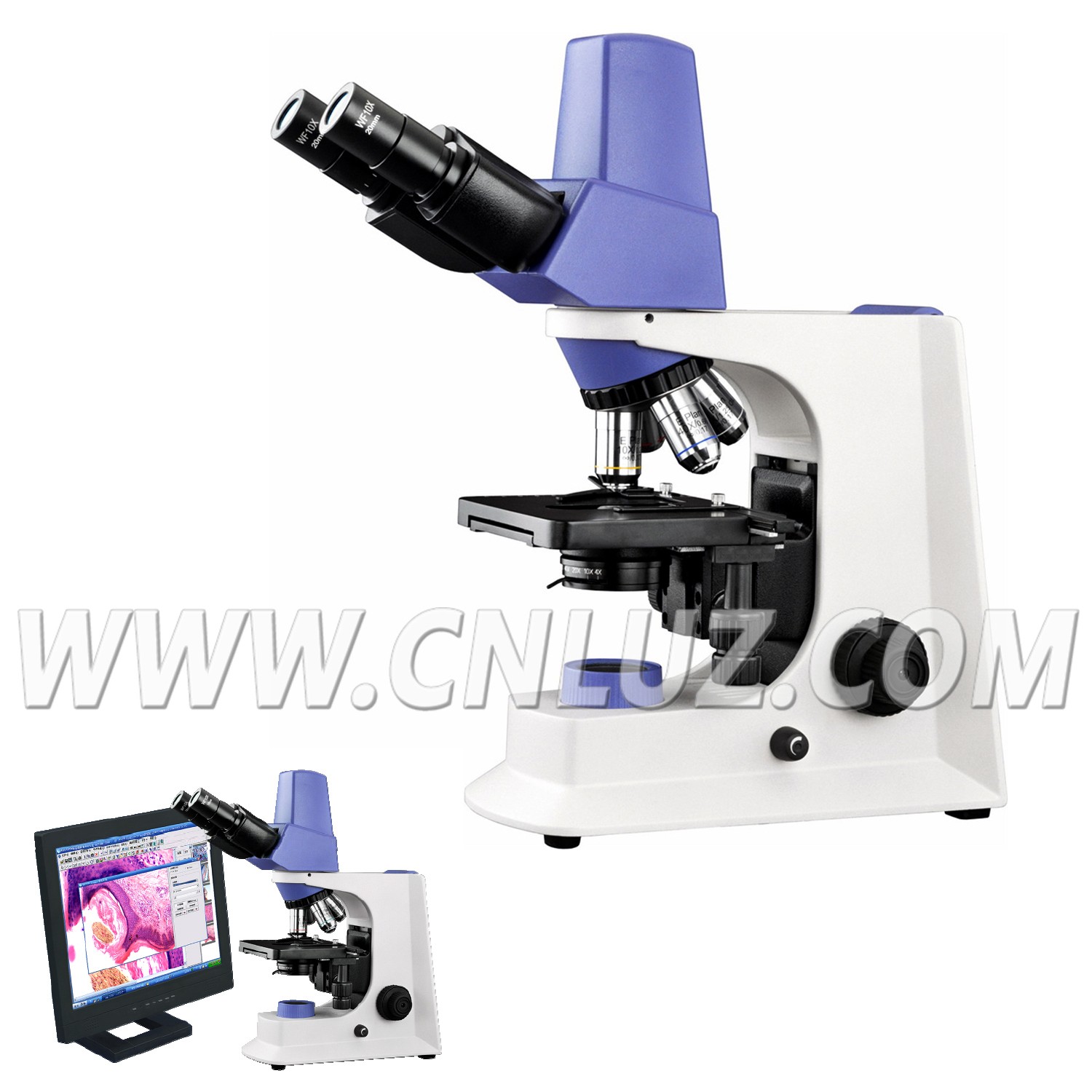

Biological Digital Microscope, 3M/5M, CMOS, 40X~1000X_IHPVISION:Microscope,Digital Vision

MDB.004008Biological Digital Microscope, 3M/5M, CMOS, 40X~1000X

Dustproof, moisture-proof, built-in chip.
Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.
Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.
USB2.0 connection without external power supply.
Available for WINDOWS 2000/XP/7/Vista system.

Specification	MDB.004008-3M	MDB.004008-5M
Digital Camera System	3.2M pixels, 1/2" CMOS, USB 2.0	5.0M pixels, 1/2" CMOS, USB 2.0
Head	Seidentopf binocular head , inclinded 30°, 360° rotatable, interpupillary distance 50-75mm
Eyepiece	WF10X/20mm
Objective	Infinity EPLAN 4X/0.10
	Infinity EPLAN 10X/0.25
	Infinity EPLAN 40X/0.65(s)
	Infinity EPLAN 100X/1.25(s,o)
Nosepiece	Quadruple Revolving Nosepiece
Focusing	Coaxial coarse and fine focusing knob
Stage	Mechanical Stage 145 x140 mm, with imported triangle track, moving range 76x52mm
Condenser	Abbe N.A.1.25 with aperture iris diaphragm
Filter	Blue, Built-in
Illumination	6V20W halogen lamp with brightness control (85V-265V)
Software	Digital Image Analysis Software, for Windows2000 / XP / Vista

Item	Optional Accessories
Eyepiece	WF10X/18mm
Eyepiece	WF16X/13mm
Objective	Infinity EPLAN 20X/0.65(S)
Nosepiece	Upgrade to Quintule Nosepiece
Dark Field	Dark Field Condenser,Dry N.A.0.9
Illumination	Upgrade to 6V 30W Halogen Lamp
	Upgrade to 3W LED Illumination ( Non Rechargable)
	Upgrade to 0.3W LED (Rechargable,including 3 rechargeable batteries)
Filter	Green
Filter	Yellow
