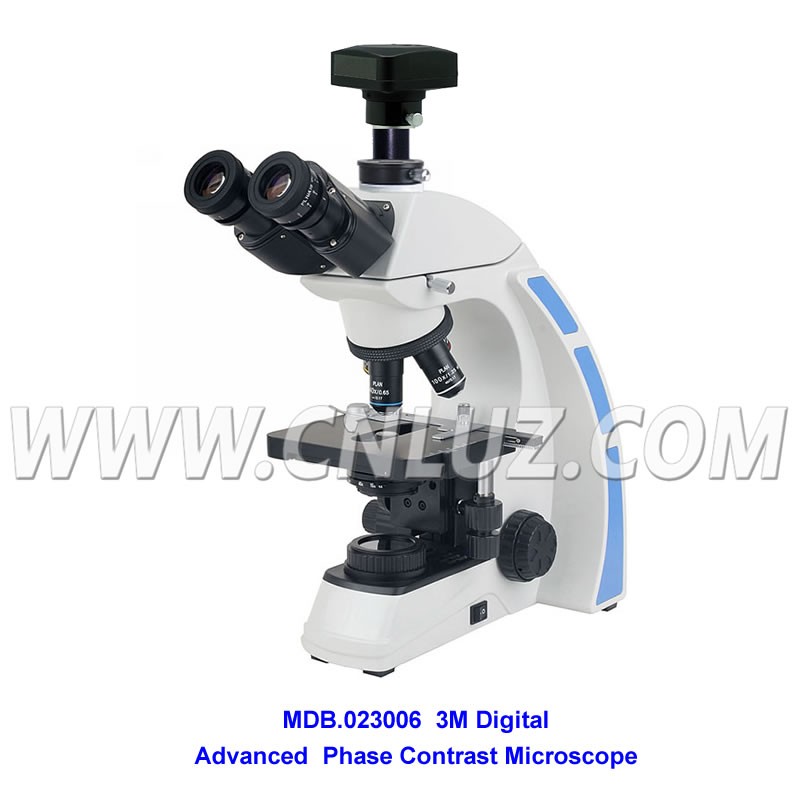

MDB.0230063M Digital Advanced Phase Contrast Microscope
  • /usr/575/images/Products/Y/57520401.jpg
  • /usr/575/Picture/Y/11640.jpg
  • /usr/575/Picture/Y/11641.jpg
  •

MDB.023006 3.0M Digital Advanced Phase Contrast Microscope for professionalUsers!

  • 3M Digital Microscope with USB output.
  • Infinity color corrected optical system with high quality micro-technique pres- ents superexcellent micro-image at any observation.
  • Infinity phase contrast objective 10X、20X、40X、100X

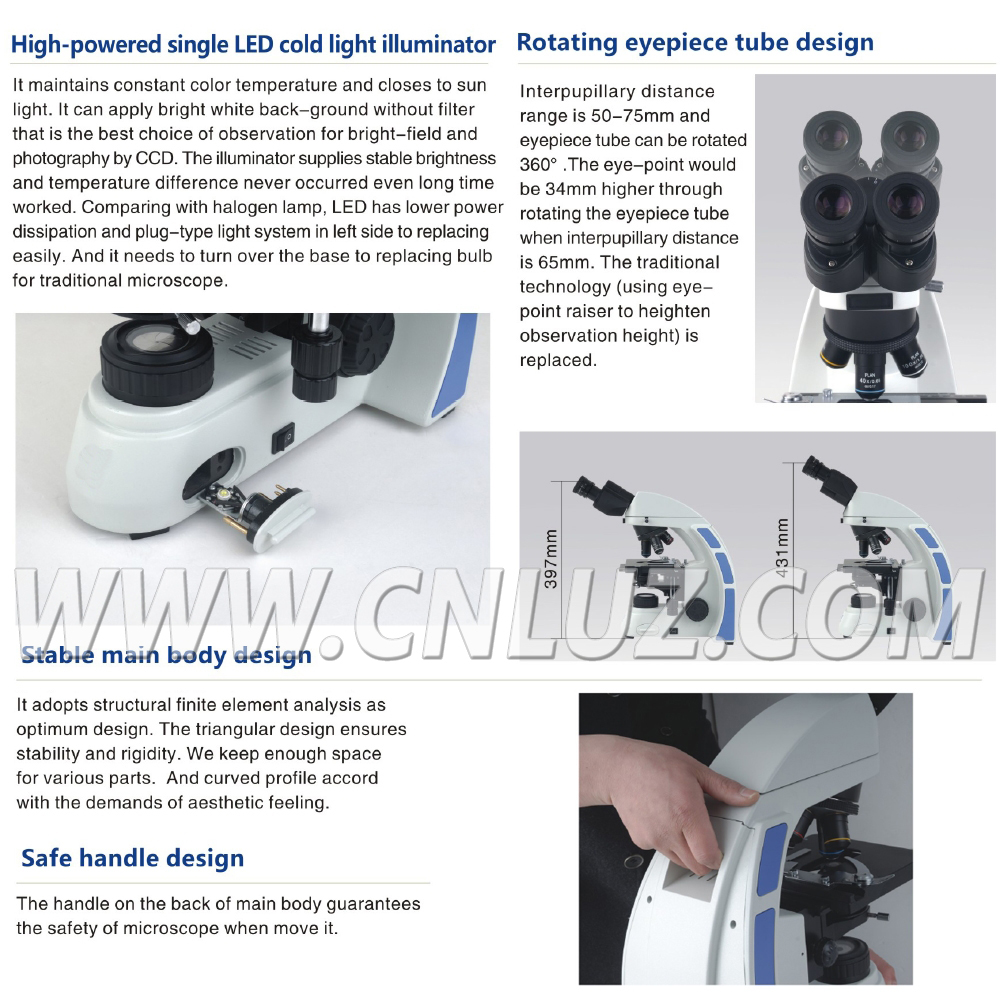

  • Single 3W LED Transmitted Light Source
Specification
MDB.003003 -3M Advanced Digtal Phase Contrast Microscope, 3.0M
Optical System Infinity Color Corrected Optical System
Digital Camera 3.0 M Digital Camera Built-in, USB 2.0
Software ScopeImage, For Window 2000/XP/Vista/Win 7/Win10
Head
 Seidentopf trinocular head, inclined at 30°,360° Rotatable
Eyepiece
Eyepiece 360 degree rotateable, means the High Eyepoint can be adjusted 34mm higher. Wide field eyepiece WF10x/ 20,High Eye Point, Diopter Adjustable +/-5 Degree;

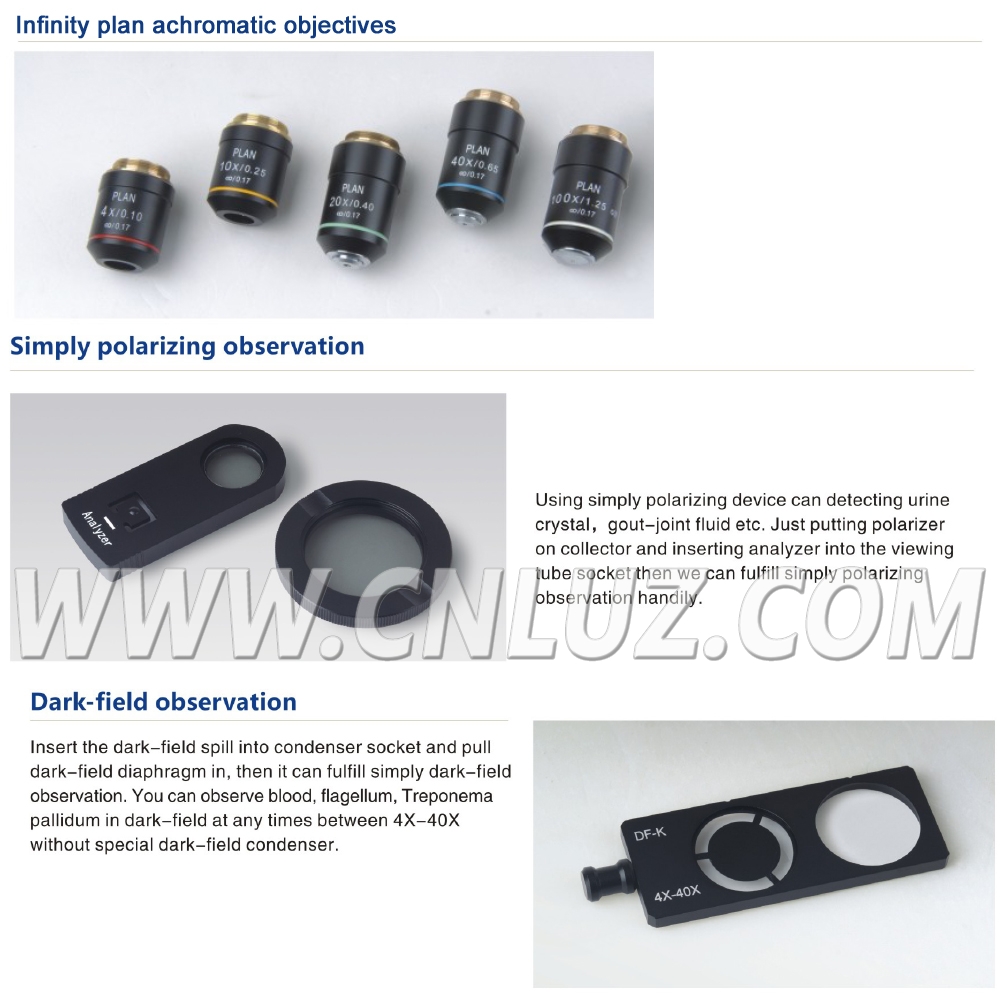

Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10X/0.25
Infinity Plan Phase Contrast Objective 20X/0.50
Infinity Plan Phase Contrast Objective 40X/0.65
Infinity Plan Phase Contrast Objective 100X/1.25
Centering telescope
Phase Contrast Slide, for 10x, 40x Infinity Objective
Phase Contrast Slide, for 20x,100x Infinity Objective
Nosepiece
Backward quadruple nosepiece
Focusing
Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
Stage
Double Layer Mechanical Stage 140*150mm, Moving Range 76*50mm, Precision 0.1mm
Condenser
Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed
Illumination
3W LED, Intensity Adjustable, Center Fixed
Power 100~240V Wide Range Power Supply
Other Pixel There are more different pixels for choice, like 5M,8M and 10M.
