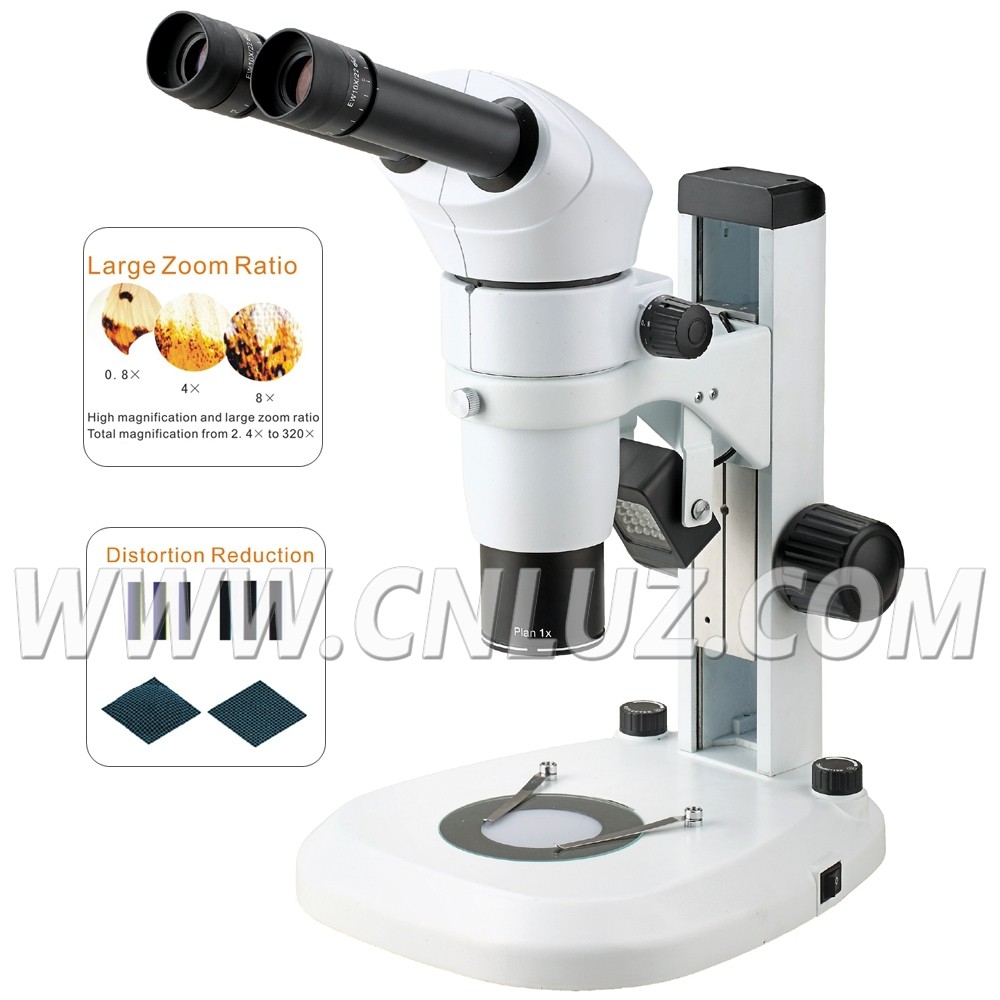

MSZ.003070Zoom Stereo Microscope, 8X~80X
  • /usr/575/images/Products/Y/57517759.jpg
  • /usr/575/Picture/Y/10778.jpg
  • /usr/575/Picture/Y/10779.jpg
  •
  • Unrivaled pptical performance with infinity parallel optical system
  • Providing even illumination and 6000 hours life expectancy with ultra-thin LED illumination for both incident and transmitted light
  • With complete accessories,it can be used extensively scientific research,industry,biological and medical field
Specification
MSZ.003070-06
MSZ.003070-08
MSZ.003070-10
Head
Tilting Head 0°-35° Viewing Angle Adjustable for User
Optical System Parallel Optical System, Module Design to Add Function Easily
Eyepiece

Extra Wide Field Eyepiece EWF10x/22mm

Zoom Objective

0.8×-5×

0.8×-6.4×

0.8×-8×

Zoom Ratio

1: 6

1: 8

1: 10

Auxiliary Lens Plan Achromatic Lens 1.0x
Working Distance 78mm

Focusing

Focusing Range 105mm

Focusing Range 105mm

Coaxial Coarse & Fine Focusing Unit,Moving Range 105mm

Illumination

Transmission or Reflection LED Illumination, Brightness Adjustable


Item

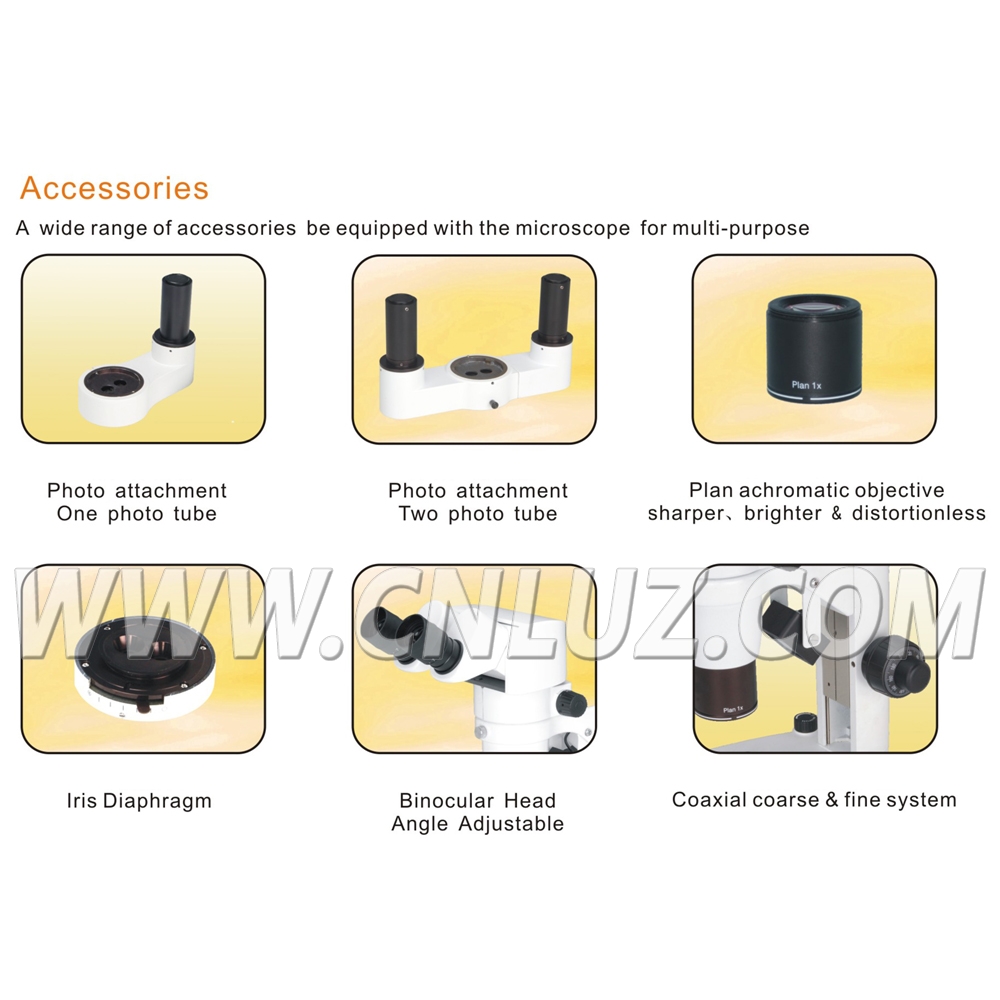

Optional Accessories
Eyepiece WF15x/16mm
WF20x/12mm
WF30x/
Auxiliary Lens Plan Apochromatic Lens 0.5x

Plan Achromatic Lens 1.0x

Plan Achromatic Lens 2.0x
Achromatic Lens 0.3x

Achromatic Lens 0.5x

Working Stage Temperature Control Stage
Movable Working Stage
Dark Field Dark Field Attachment For Stereo Microscope
Fluorescent EPI-Fluorescent Attachment For Stereo Microscope
Polarizing Simple Polarizing Attachment For Stereo Microscope
Adapter Photo Tube, Beamsplitter 1 Port
Photo Tube, Beamsplitter 2 Port
Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera
0.5x C-Mount
1.0x C-Mount
