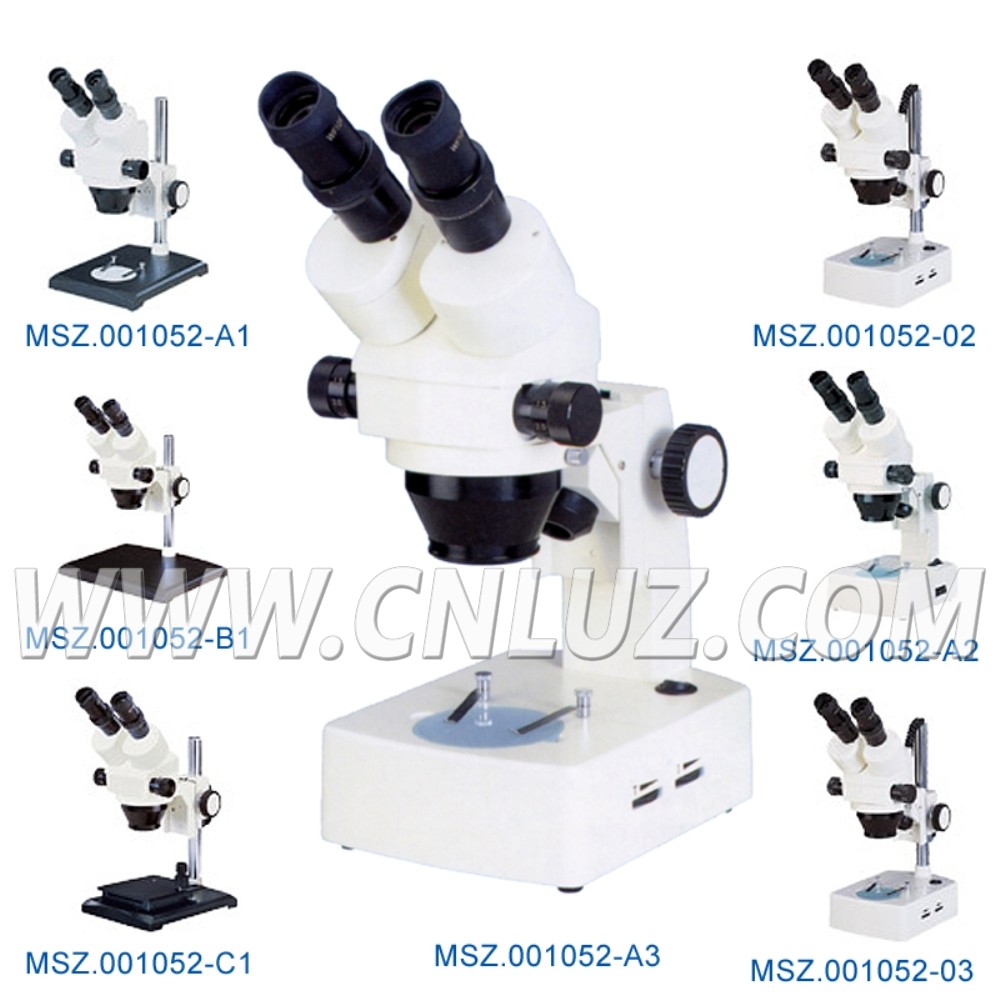

MSZ.001052Zoom Stereo Microscope, 7X~45X
  • /usr/575/images/Products/Y/57517774.jpg
  • /usr/575/Picture/Y/10802.jpg
  • /usr/575/Picture/Y/10803.jpg
  • /usr/575/Picture/Y/10804.jpg

The series stereo microscopes is a kind of positive image microscope; it is adopted horizontal knob to zoom control, have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.

  • Eyepiece is Wide Field 20mm
  • Objective Zoom 0.7x~4.5x
  • Optical head 45° inclination, 360° rotatable, interpupillary distance 55~75mm, eyepiece tube diopter adjustable

MSD.001052-
Specification
A1
B1
C1
02
A2
03
A3
Eyepiece
WF10x/20mm
Objectives
Zoom objetive 0.7~4.5x
Total Magnification
7~45x
Visual Field
Dia 28.5~4.5mm
Working Distance
88mm
Stand
Pole Stand
Track Stand
Pole Stand
Track Stand
Up/down Move Range(mm)
25<=h<265
25<=h<240
25~265
25~130
25~265
25~130
Base(mm)
240x180x25
300x240x25

240x180x25,

with movable stage 42x42

215x160x60
Illumination
No light source
Up light source 12V10W halogen lamp, reflector cup, brightness adjustable
Up light source 12V10W halogen lamp, reflector cup, brightness adjustable
Bottom light source 12V10W halogen lamp, bright ness adjustable

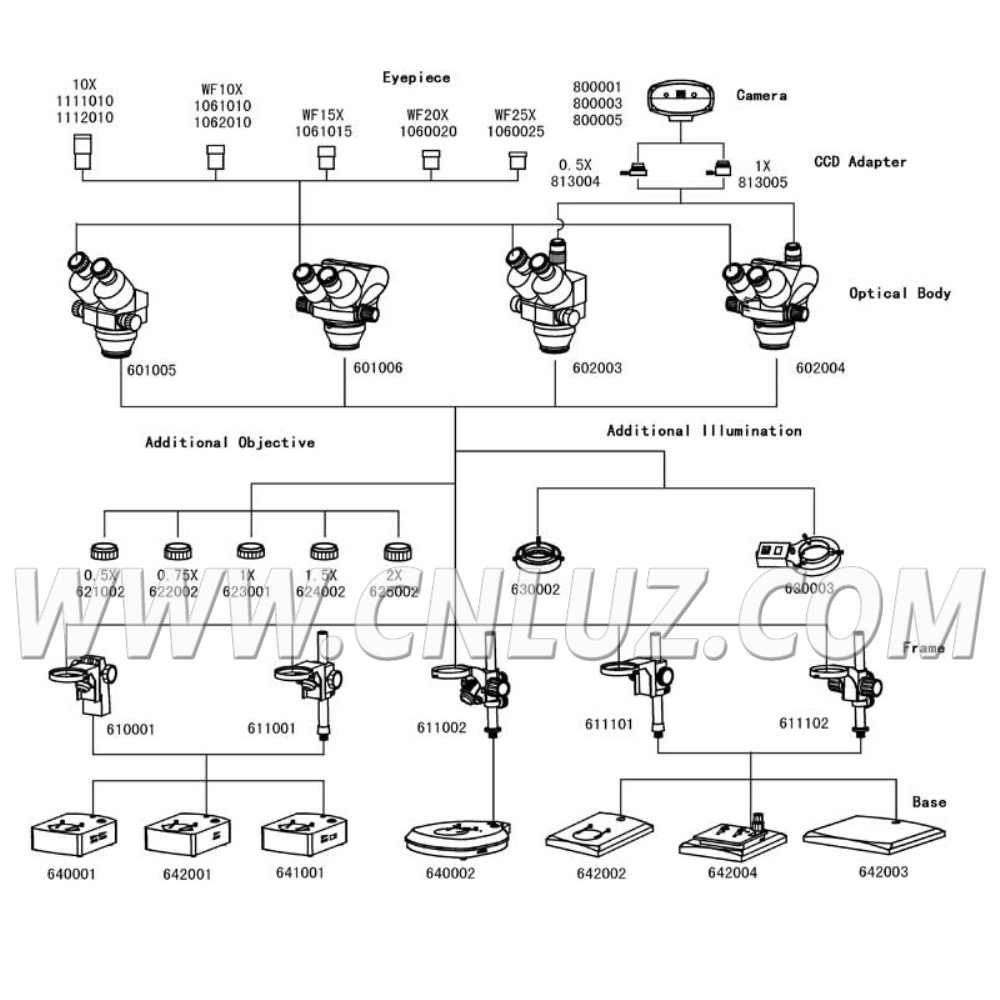

Item
Optional Accessories
Eyepiece
WF10x/22mm
WF15x/15mm
WF20x/12mm
WF25x/9mm
Divisional wide field eyepiece 10X/20mm 0.1mm/Div
Divisional wide field eyepiece 10X/22mm 0.1mm/Div
Objective
0.5x W.D.137mm
0.75x W.D.103mm
1x W.D.88mm
1.5x, W.D.48mm
2x, W.D.29mm
Head Trinocular Head
CCD Adapter 0.5x
1x
Illumination
8W, 90~265V Annular LED illumination W.D. 35~200mm
5W, 110V/220V, Annular fluorescent illumination
