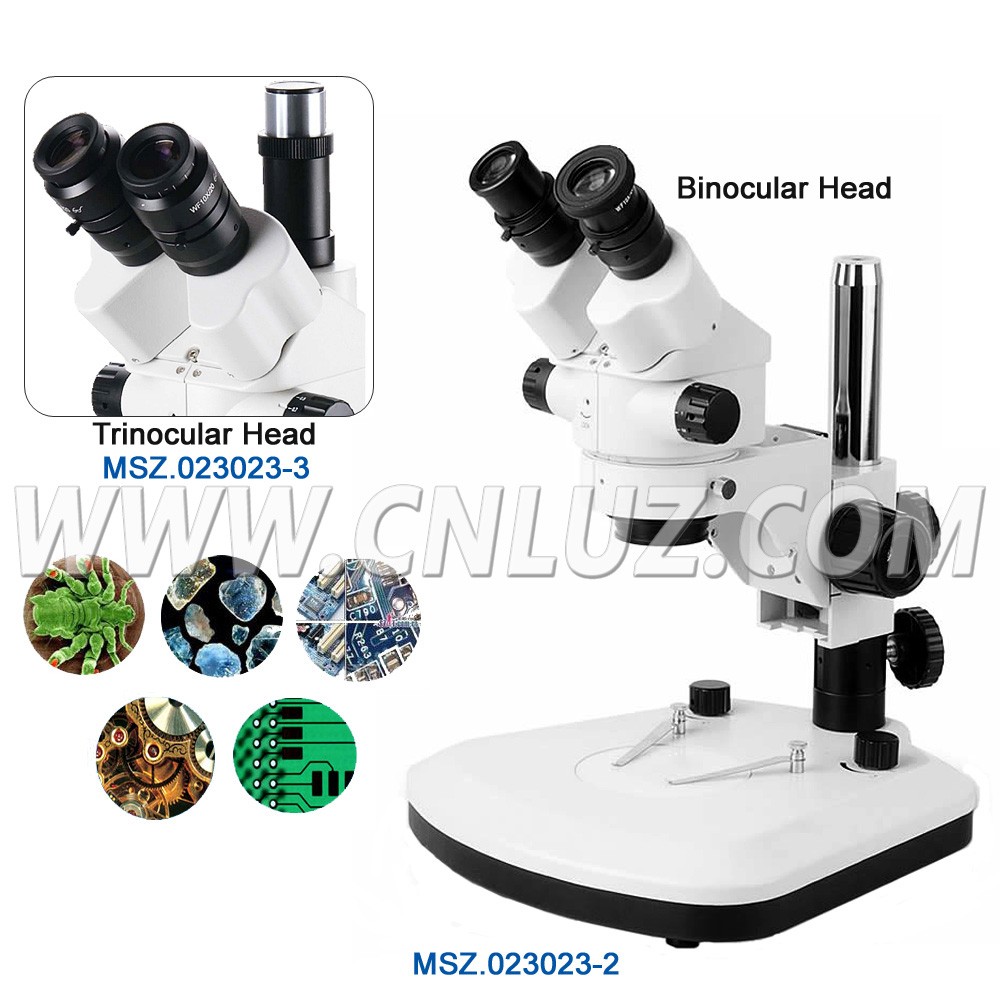

MSZ.023023Zoom Stereo Microscope,7~45X
  • /usr/575/images/Products/Y/57518083.jpg
  •
  •
  •
  • 0.7~4.5x Zoom Lens, with WF10x/20mm Eyepiece
  • Total Optical Magnification 7~45x
  • Pole Stand

Specification
MSZ.023023-2
MSZ.023023-3
Magnification
7~45x, Up to 3.5~180x with Auxiliary Lens
Head
Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm
Trinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm
Eyepiece
WF10x/20mm, Both with Eye-cup
Zoom Ratio
1:6.5
Zoom Range
0.7~4.5x
Working Distance
100mm, With Standard 1x Lens
Field of View
1~95.2mm
Stand
Big Fan Pole Stand BL3, With Focusing Knob
Illumination
Up & Bottom Light Source

Item
Optional Accessories
Eyepiece WF15x/15mm
  WF20x/10mm
Auxiliary Lens


0.5x

0.75x
1.5x
2.0x
