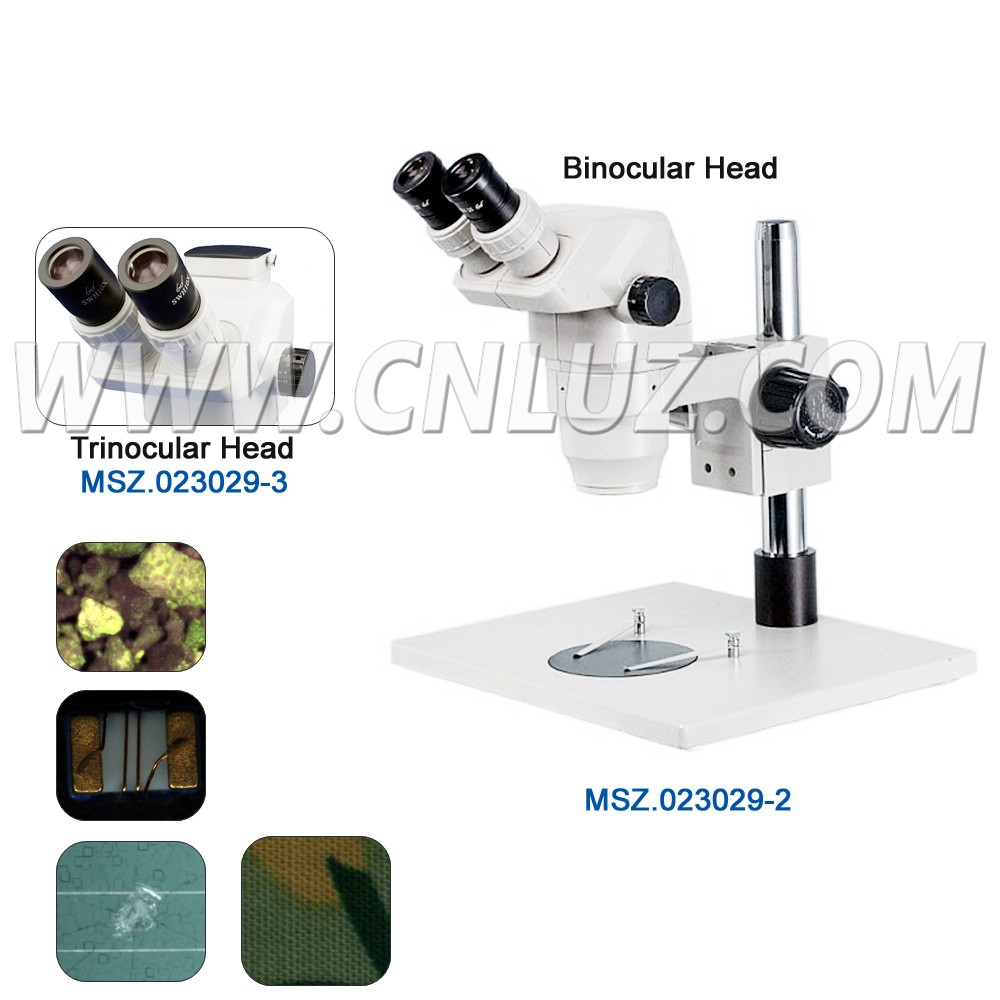

MSZ.023029-3
|
| Magnification |
6.7x~90x, (2x~225x with Auxliliary Objective)
|
|
|
Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm
|
Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm
|
|
Eyepiece
|
WF10x/22mm, High Eyepoint
|
|
|
0.67~4.5x
|
|
Zoom Ratio
|
1:6.7
|
|
|
100mm, With Auxiliary Objectives 26~287mm
|
|
Stand
|
Big Pole Stand, Height 248mm,, Base 260*320*12mm
|
|
Light Source
|
No Light Source
|
|
|
|
|
| Head |
Binocular Head + WF10x/20mm
|
| Trinocular Head + WF10x/20mm |
|
Eyepiece
|
WF10x/20mm, High-eyepoint, Outside Dia. 30mm
|
| WF15x/15mm, High-eyepoint, Outside Dia. 30mm |
| WF20x/10mm, High-eyepoint, Outside Dia. 30mm |
| WF10x/20mm,with Reticle |
| WF15x/15mm,with Reticle |
| WF20x/10mm,with Reticle |
|
Auxiliary Lens
|
0.5X,W.D. 165mm
|
|
0.75X,W.D. 105mm
|
|
1.5X,W.D. 45mm
|
|
2.0X,W.D. 30mm
|
|
CCD Adapter
|
0.50x, For 1/2" CCD
|
|
0.35x, For 1/3" CCD
|
|
