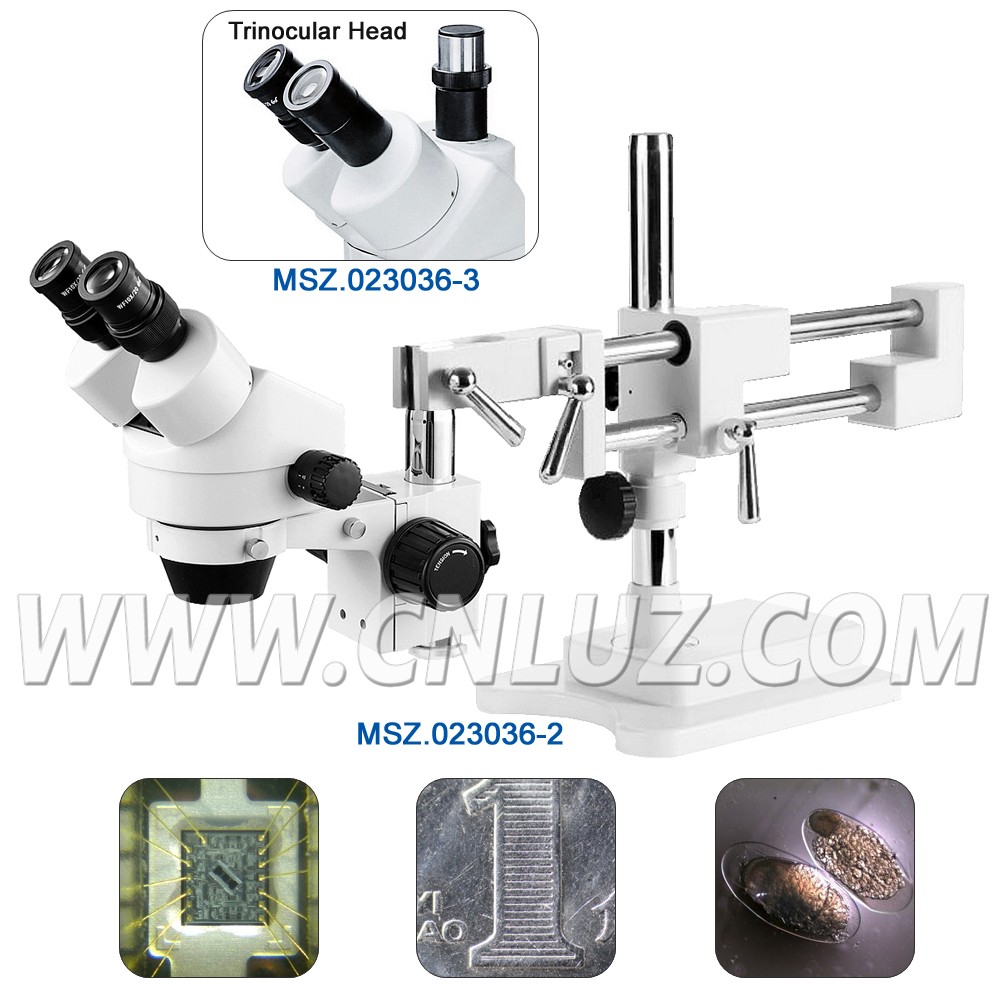

MSZ.023036Zoom Stereo Microscope,7~45X
  • /usr/575/images/Products/Y/57518135.jpg
  •
  •
  •

High quality optical performance, various accessories and diversified combination specification. To meet high-precision requirements on modern biology, medicine, scientific research, inspection lines in modern electronics and other technology industries

  • High quality optical system, and optical components coated with special coating created a high-quality optical system.
  • Standard magnification 7X~45X. Use optional auxiliary lens, the magnification can be 3.5X~180X
  • Long working distance to create enough space for the uses
  • Suit to ergonomic design, feel less fatigue when long time use

Specification
MSZ.023036-2
MSZ.023036-3
Magnification
7x~45x, (2x~225x with Auxliliary Objective)
Head
Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm

Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm
Eyepiece
WF10x/20mm, High Eyepoint
Zoom Lens
0.7~4.5x
Zoom Ratio
1:6.5
Working Distance
100mm, With Auxiliary Objectives 26~287mm
Stand
Double Arm Universal Pole Stand STL2, Height 380mm, Focusing Pole Height 140mm, Level Move Range 235mm, Base 210*260*20mm,
Light Source
No Light Source

Item
Optional Accessories
Head

Binocular Head + WF10x/20mm
Trinocular Head + WF10x/20mm
Eyepiece


WF10x/20mm, High-eyepoint, Outside Dia. 30mm
WF15x/15mm, High-eyepoint, Outside Dia. 30mm
WF20x/10mm, High-eyepoint, Outside Dia. 30mm
WF10x/20mm,with Reticle
WF15x/15mm,with Reticle
WF20x/10mm,with Reticle
Auxiliary Lens


0.5X,W.D. 165mm
0.75X,W.D. 105mm
1.5X,W.D. 45mm
2.0X,W.D. 30mm
CCD Adapter

0.50x, For 1/2" CCD
0.35x, For 1/3" CCD
