MSZ.017016Zoom Stereo Microscope, 8X~50X
  • /usr/575/images/Products/Y/57519050.jpg
  • /usr/575/Picture/Y/11549.jpg
  • /usr/575/Picture/Y/11550.jpg
  • /usr/575/Picture/Y/11551.jpg
  • Ergonomic design
  • 8x-50x. With additional eyepiece & objectives, can reach 4x-200x.
  • Binocular Head for optional
  • Multiple base for optional
Specification
MSZ.017016-TSN
MSZ.017016-TSD
MSZ.017016-TFN
MSZ.017016-TFD
Magnification 8x-50x. With additional eyepiece & objectives, can reach 4x-200x.
Head
Trinocular head, 45° inclined, 360° rotatable, Interpupillary range from 52mm-75mm . Distribution is 3:7 for trinocular
Eyepiece WF10x/22mm
Working Distance
Standard Working Distance is 115mm. With additional objectives can be up to 45mm-211mm.
Focusing
Coarse Focusing Knob with tension adjustable. Adjusting range 100mm
Auxiliary Objective
0.5x/210mm; 0.7x/130mm; 2x/45mm
Base

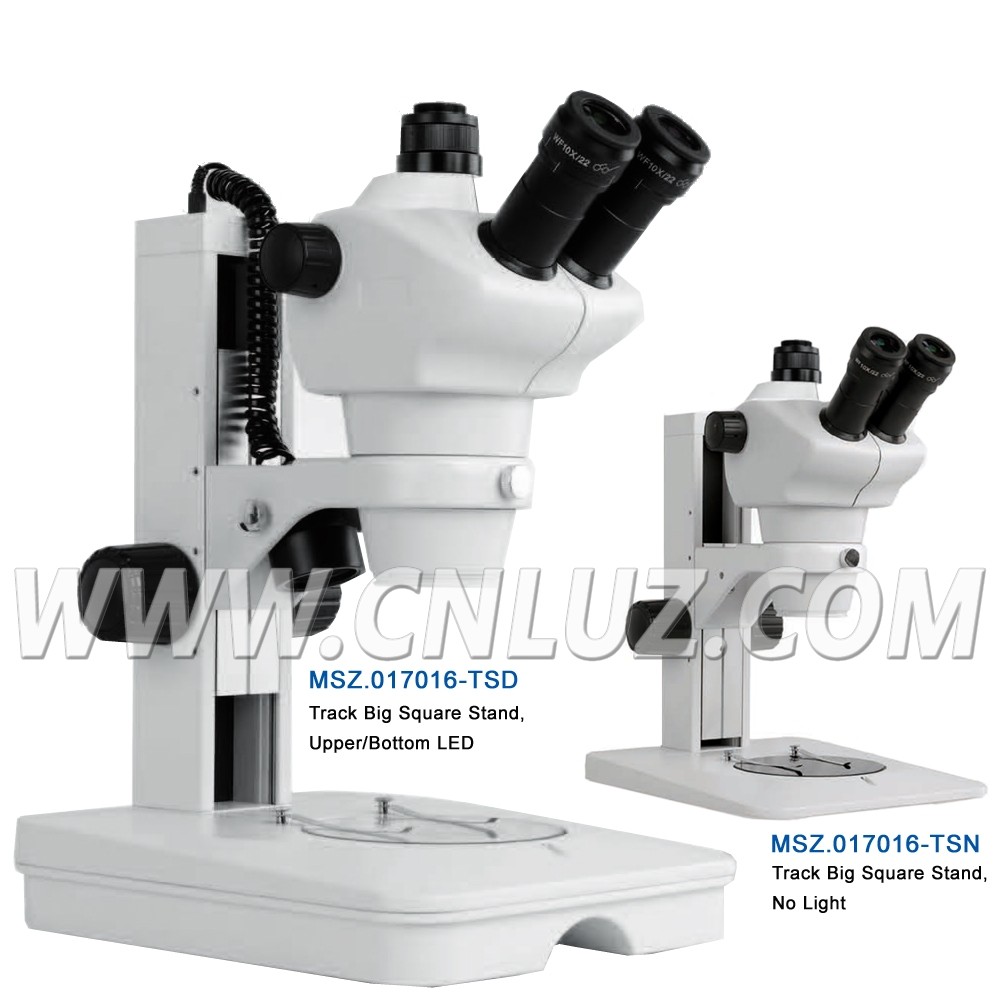

Track Big Square Stand, No Light
Track Big Square Stand, Upper/Bottom LED
Track Big Fan Stand, No Light
Track Big Fan Stand, Upper/Bottom LED

Item
Optional Accessories
Head
Binocular head, 45° inclined, 360° rotatable, Interpupillary range from 52mm-75mm
Eyepiece

 WF10x/22mm, Diopter adjustment D-8~+5
WF15x/16mm, Diopter adjustment D-8~+5
WF20x/12.5mm, Diopter adjustment D-8~+5
Light
LED Ring Light , 60pcs
