MDU.025001Wifi Digital Microscope,200X,0.3M
  • /usr/575/images/Products/Y/57517940.jpg
  • /usr/575/Picture/Y/11014.jpg
  •
  •

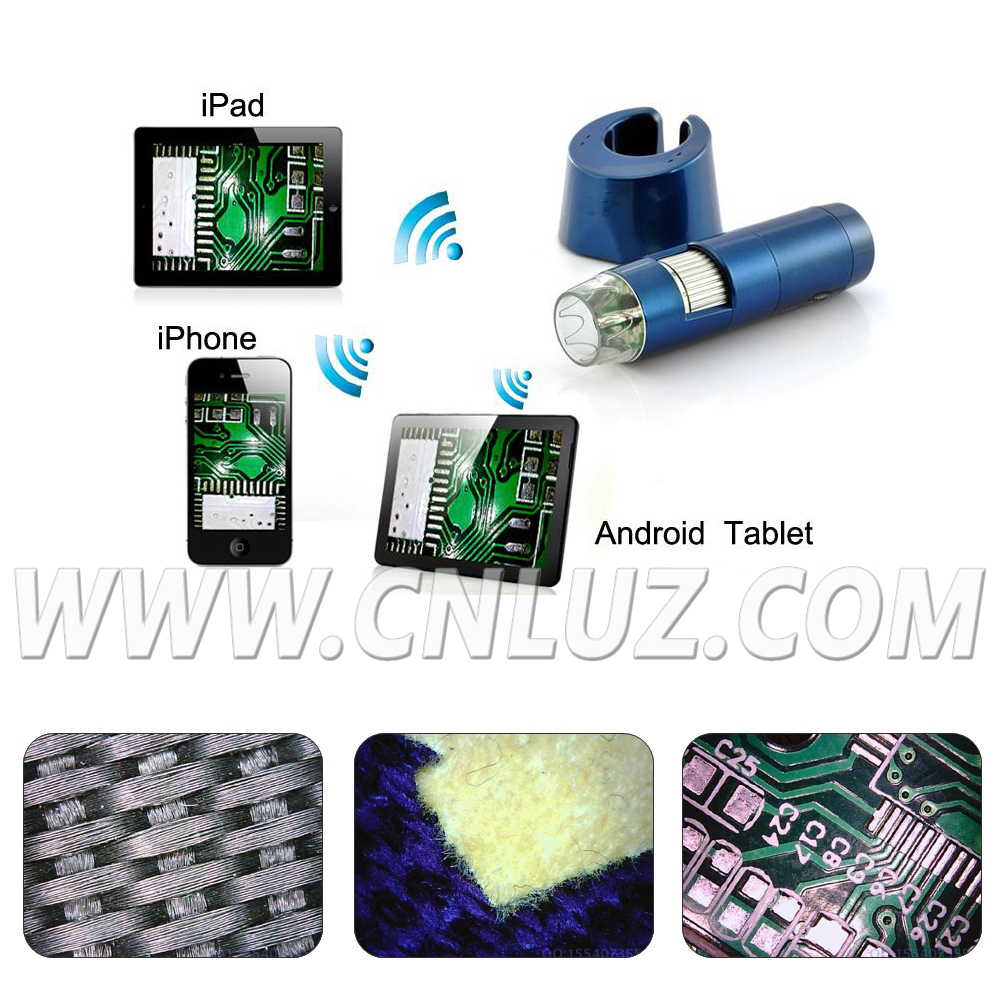

WIFI wireless digital microscope is mainly aimed at portable mobile devices, such as tablet computer and mobile phone.
Wireless digital microscope to make up for the cable digital microscope distance limitation, can in the space 10~30m environment, display images in IOS system and mobile phone panel.
The main applications are as follows:

  • Industrial inspection, such as circuit boards, precision machinery, printing detection, SMT welding inspection, textile testing, IC surface inspection,etc.
  • Cosmetic applications, such as skin view, root view, infrared physiotherapy,etc.
  • Biological applications, such as microbial observation, animal slice observation, etc.
Specification
MDU.025001
Magnification
5 X ~ 200X ( Manual )
Image Sensor
CMOS
Resolution
  • Video Capture Resolution 0.3M
  • Still Image Capture Resolution 640*480,can be magnified and minified
Frame Rate
20f/s VGA under 600 lux brightness
Focus Range
0mm ~40mm,other range can be customized
Controller
High Speed DSP(M-jpeg)
Take Images
Snap shot in build-in application program
Fixed Foundation
Tailor-made for the microscope
Brightness Control
Manual adjustment
Illumination
Built-in 4-8 White-light LED and adjustable illumination ensure the magnified images are clear and bright,0-30000lux
Wifi Standard
IEEE802.11 b/g/n Standard compliant
Power Supply
Rechargeable 1000mA self-protection lithium battery
System
Support O/S:WIFI capable such as IOS and Android
Language
English,other language can be customized
Product Color
Deep Blue
Dimension
142mm(L)*37mm(R)
Net Weight
100g
