C-mount Adapter for Olympus Microscope

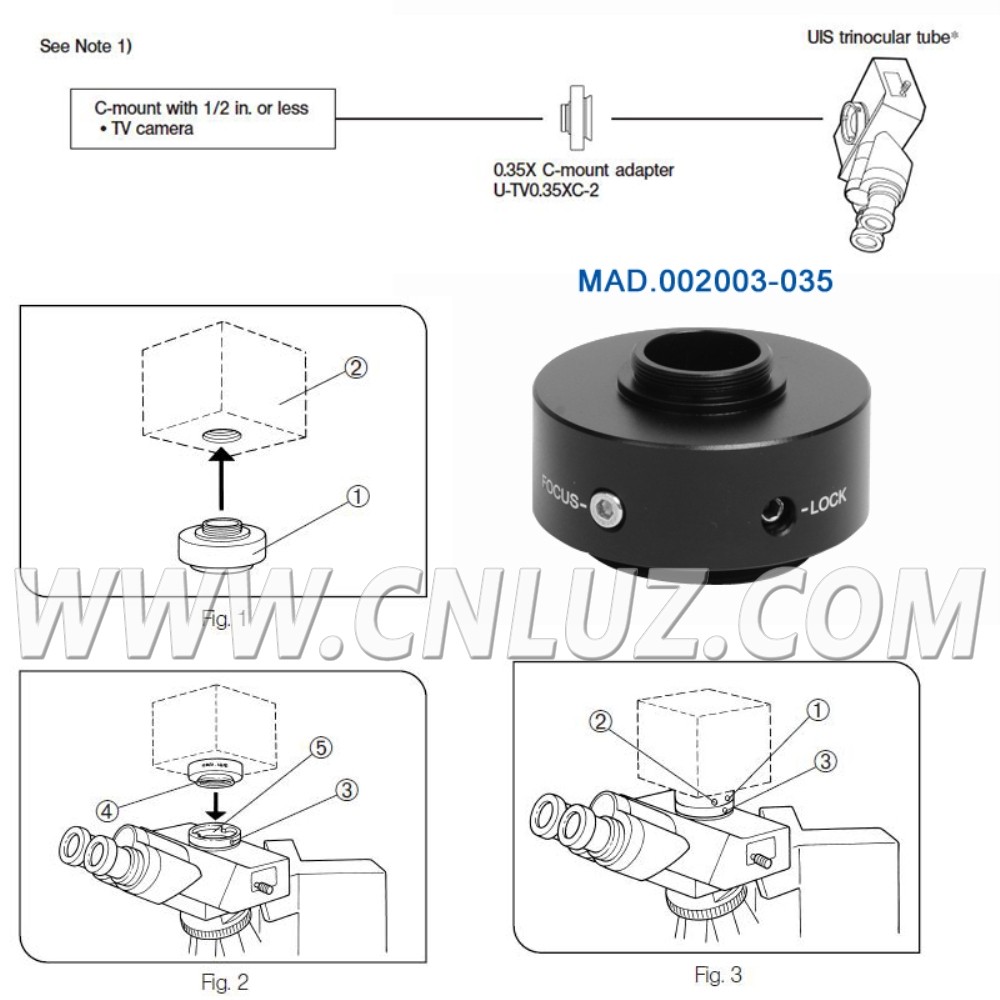

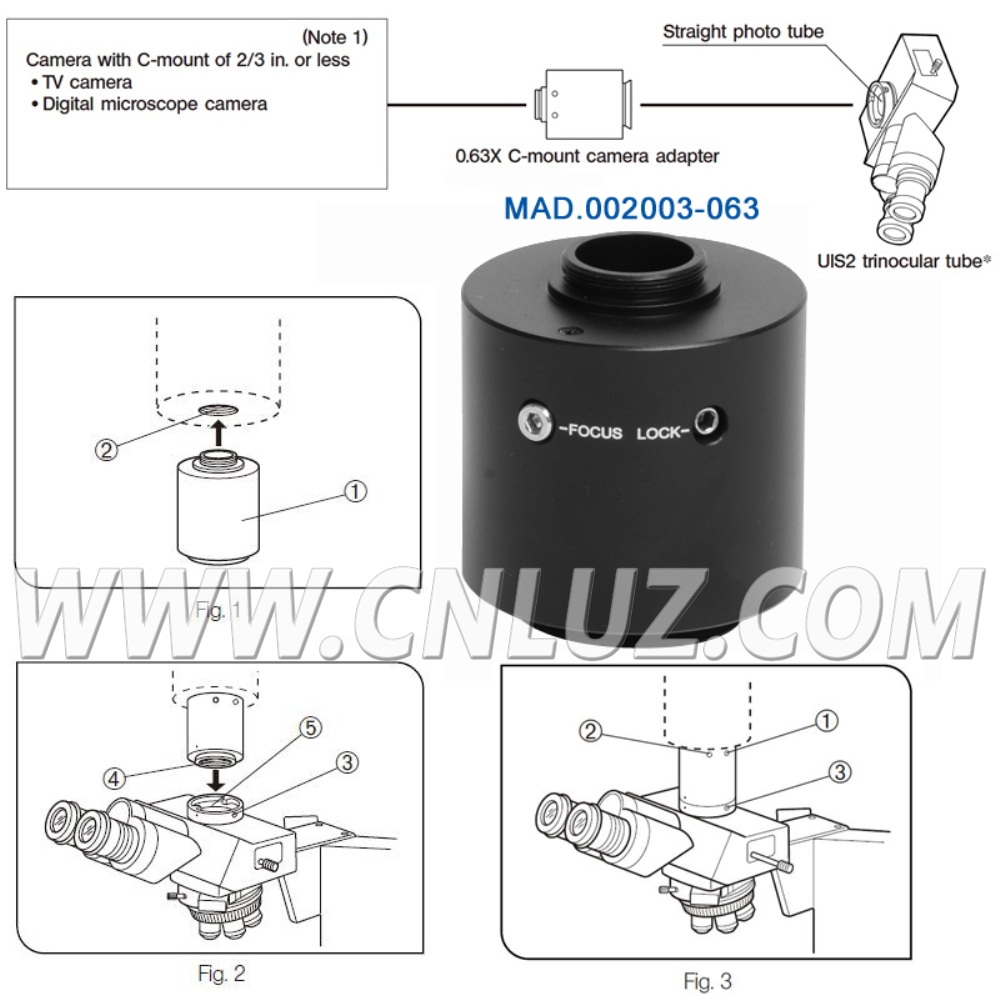

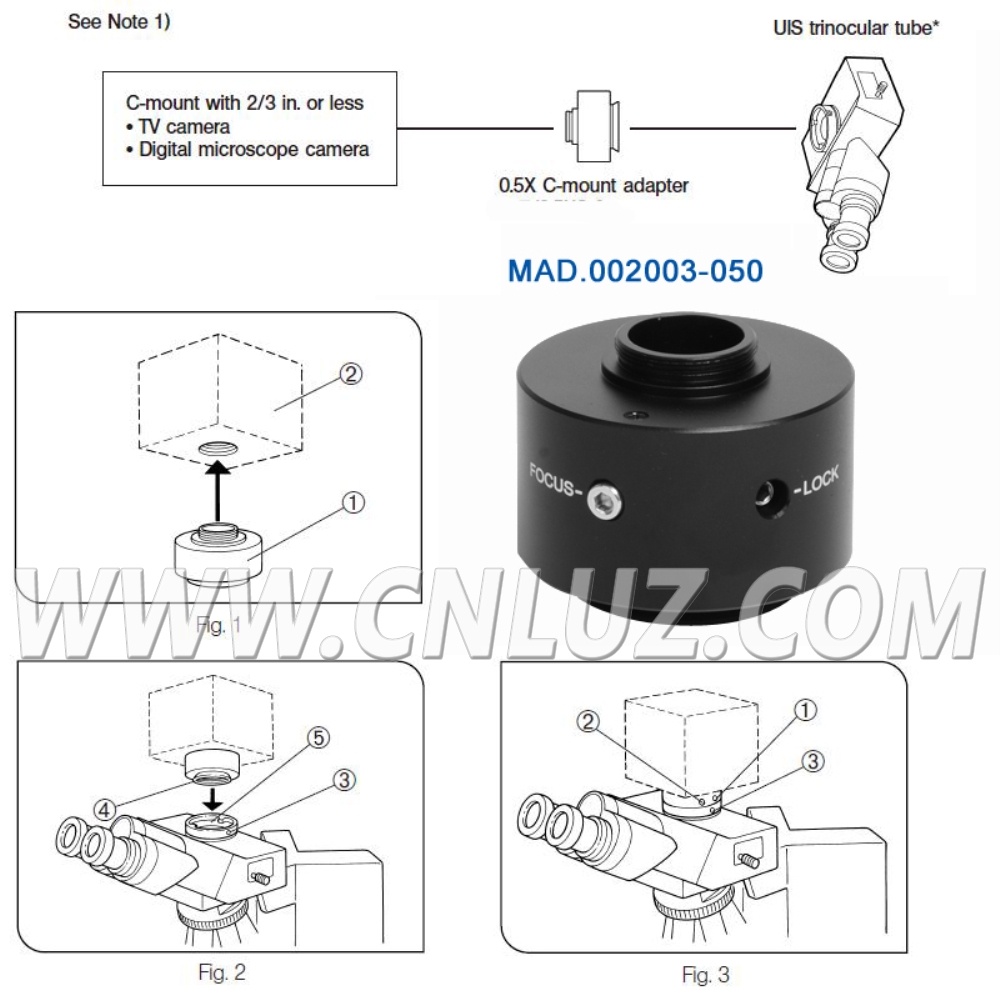

MAD.002003-035 / MAD.002003-050 / MAD.002003-063

• Low magnification C-mount adaptor
• Adjustable (Focusable) or fixed lens inside
• Telecentric optics with low light deficiency
• Parfocal with different microscope objective lenses
• Can be installed in UIS trinocular tube
• Diffraction limited MTF performance
• Aperture totally coupled with UIS microscope exit pupil

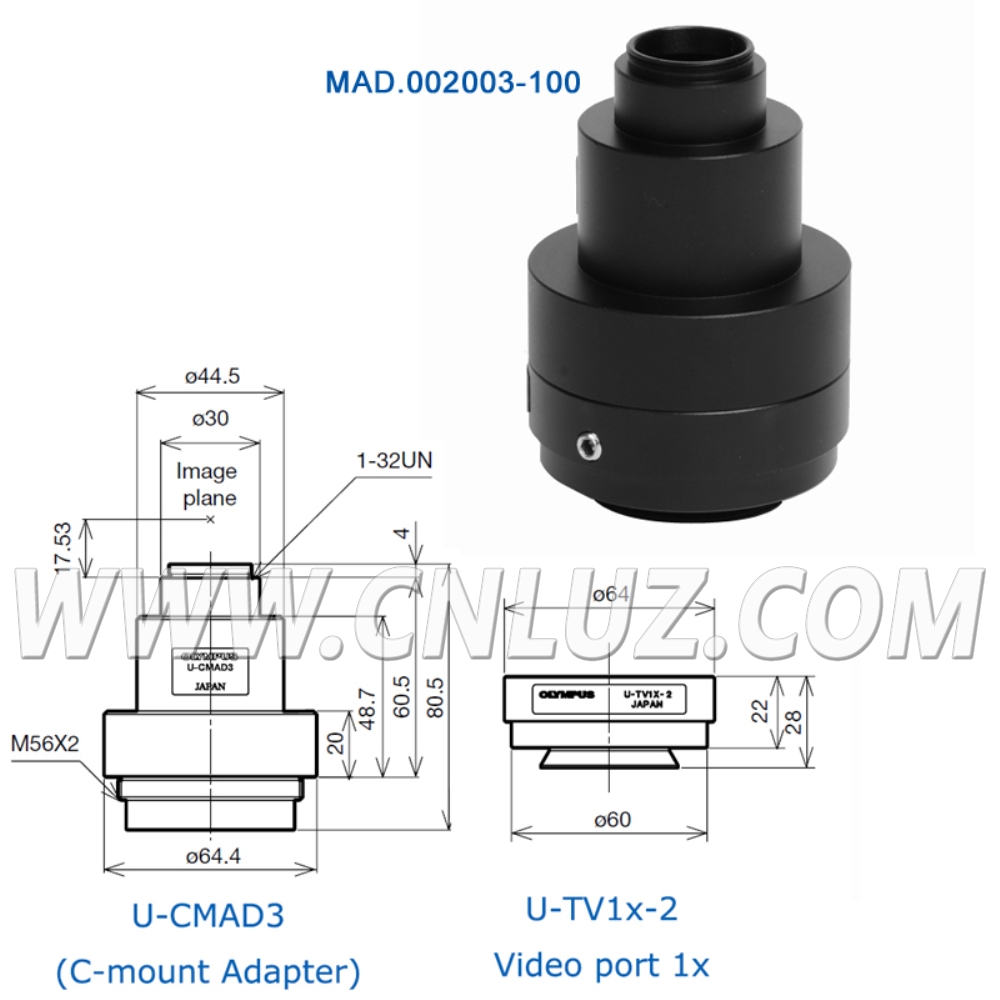

MAD.002003-100

• 1X C-Mount Adapter
  The Olympus Type is:U-TV1X-2 and U-CMAD3
• Fit Olympus BX MX STM SZX Microscope
  BX: BX51 BX50 BX41 BX60 BX61
  MX:MX51 MX40 MX50 MX61 MX61L MX80
  STM:STM6
  SZX:SZX7 SZX9 SZX10 SZX12 SZX16
